vRealize Automation 7.1 – Create Tenant & Configure Authentication (Part 2)

vRealize Automation 7.1 – Installation (Part 1)

Following on from the Install post above, the following steps detail the creation of a Tenant in vRA 7.1.

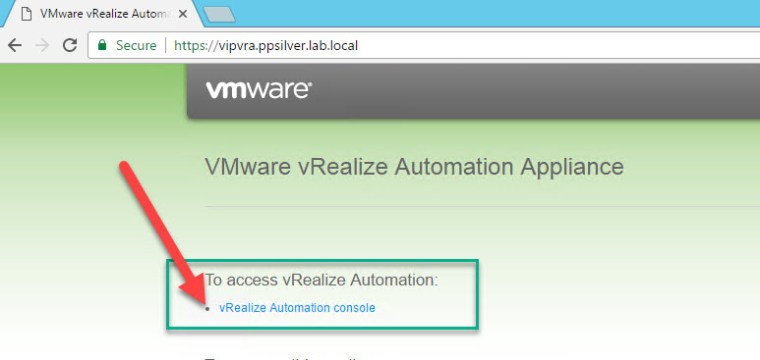

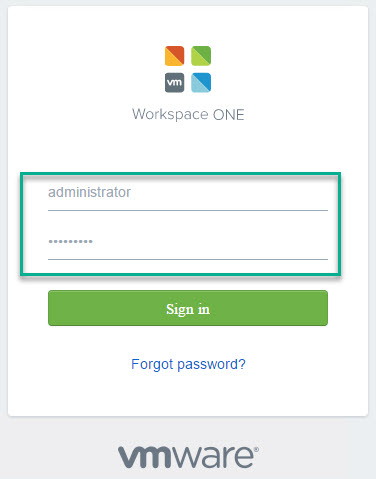

Begin by navigating to https://vRA-FQDN and logging into the default tenant using the Administrator account and password created during install:

vra71tenantauth1

vra71tenantauth2

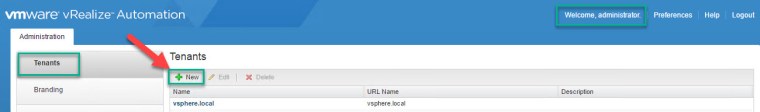

Click ‘New’ to begin the creation of a new Tenant in vRA:

vra71tenantauth3

Enter the required Tenant details, in this example I called the tenant ‘EHC’, which means the tenant URL will be:

https://vipvra.ppsilver.lab.local/vcac/org/ehc/

vra71tenantauth4

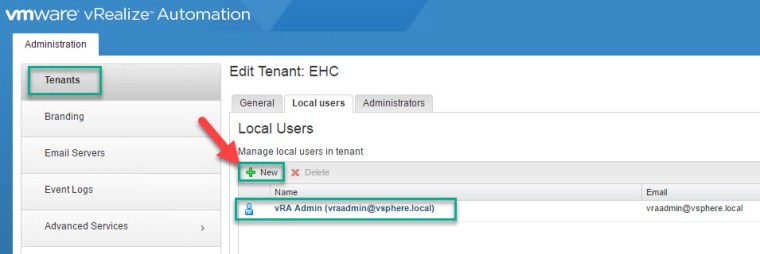

Create a local user for the ‘EHC’ Tenant, in this case ‘vraadmin’ is the account I created:

vra71tenantauth5

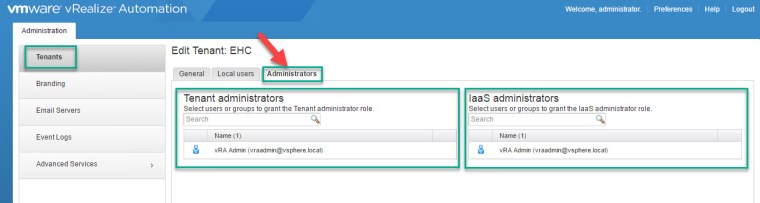

Adding the ‘vraadmin’ user to both the Tenant&IaaS Administrator groups:

vra71tenantauth6

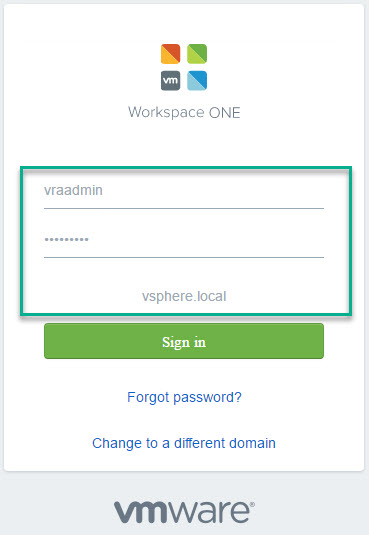

Next configure Authentication, begin by logging into the ‘EHC’ Tenant with the new ‘vraadmin’ user and default domain ‘vsphere.local’:

vra71tenantauth7

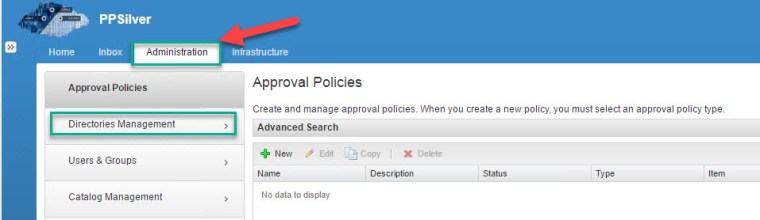

Click ‘Administration’ and navigate to ‘Directories’:

vra71tenantauth8

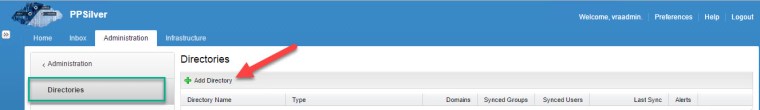

Click ‘Add Directory’:

vra71tenantauth9

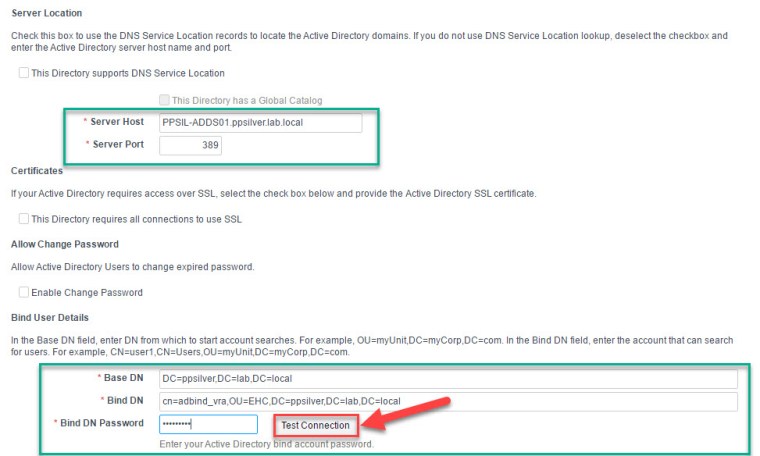

Fill in the required AD details:

vra71tenantauth10

vra71tenantauth11

Click on ‘Test Connection’ to ensure comms to AD are successful:

vra71tenantauth12

Click Next and select your domain:

vra71tenantauth20

User attributes default:

vra71tenantauth21

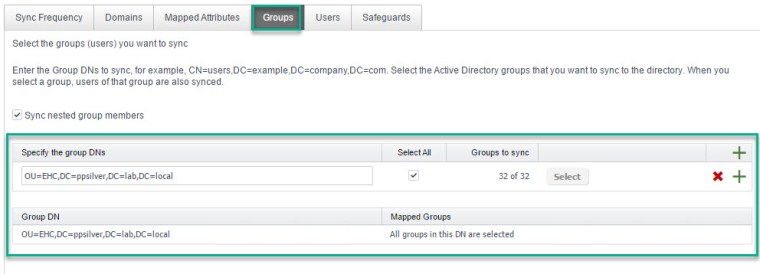

Enter DN (Distinguished Name) details which consists of your required groups to sync with:

vra71tenantauth22

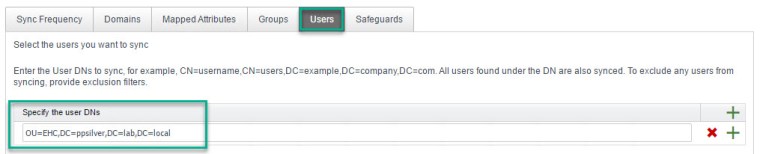

Enter DN (Distinguished Name) details which consists of your required users to sync with:

vra71tenantauth23

On completion of directories setup and sync, log back into the default tenant in order to edit the EHC Tenant:

vra71tenantauth13

Click ‘edit’ on the EHC Tenant:

vra71tenantauth14

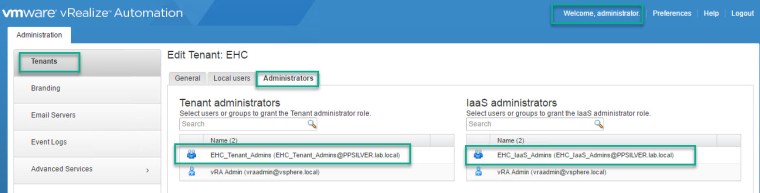

Add Users/Groups from the newly adding LDAP authentication provider ‘ppsilver.lab.local’ being the AD used in this example:

vra71tenantauth15

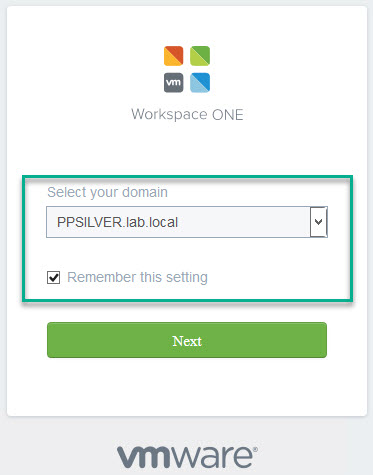

Select the newly added domain from the login options for:

https://vipvra.ppsilver.lab.local/vcac/org/ehc/

vra71tenantauth16

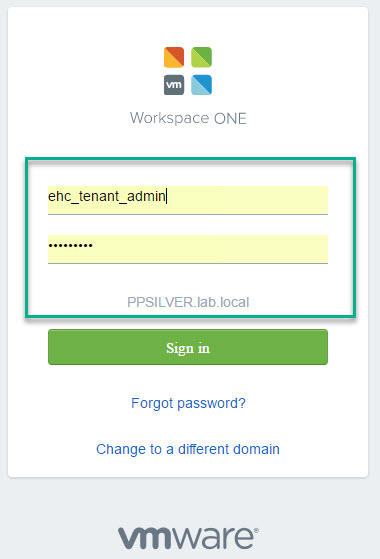

Login to the EHC Tenant using the Tenant/IaaS Admin added from the specified Active Directory:

vra71tenantauth19

You can now begin configuring the new Tenant (‘EHC’ in this example):

vra71tenantauth18

3 thoughts on “vRealize Automation 7.1 – Create Tenant & Configure Authentication (Part 2)

  1. Hey Dave

    at the “Log back into the default tenant in order to edit the EHC Tenant” part, i think we need to specify group DNs before logging back into default tenant?
