Deploying VCSA 6.0 with External PSC (New Site Joining Existing SSO Domain)

The following provides a step-by-step walkthrough for deploying an external PSC Appliance into a new site, while joining an existing SSO Domain, followed by the installation of VCSA 6.0.

This scenario may arise in a multi-Site multi-vCenter solution where Enhanced Linked Mode is a requirement.

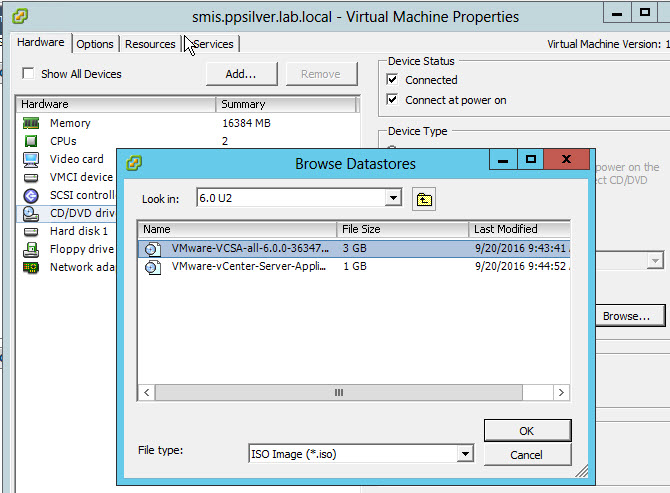

Begin by mounting the VCSA ISO on the VM from which you will be managing the PSC&VCSA deployment:

vcsa_psc_deply0

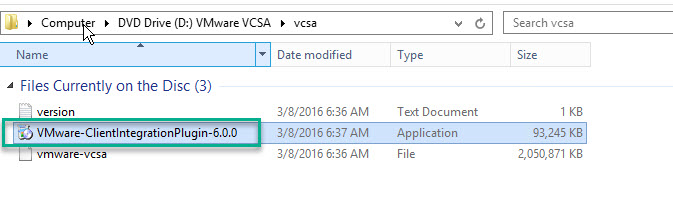

From the management VM browse the media contents, navigating to the VCSA folder and installing the Client Integration Plug-in:

vcsa_psc_deply1

The next series of steps detail the installation of the PSC Appliance

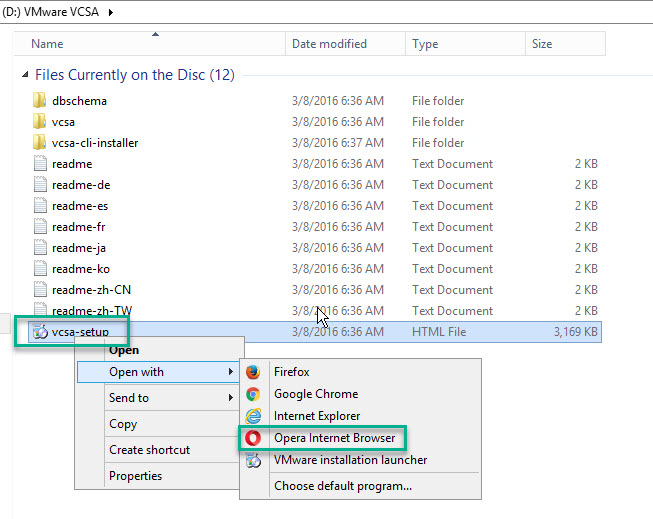

From the root of the attached media(VCSA ISO) right click vcsa-setup and open with your desired browser (I find OPERA plays nicest with the plugin!):

vcsa_psc_deply2

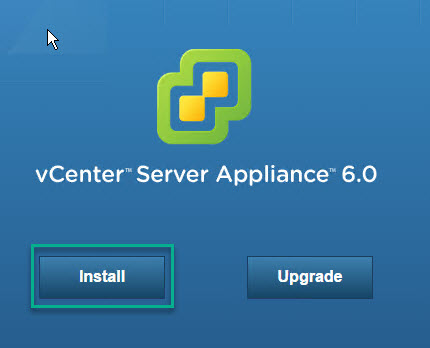

Select install:

vcsa_psc_deply3

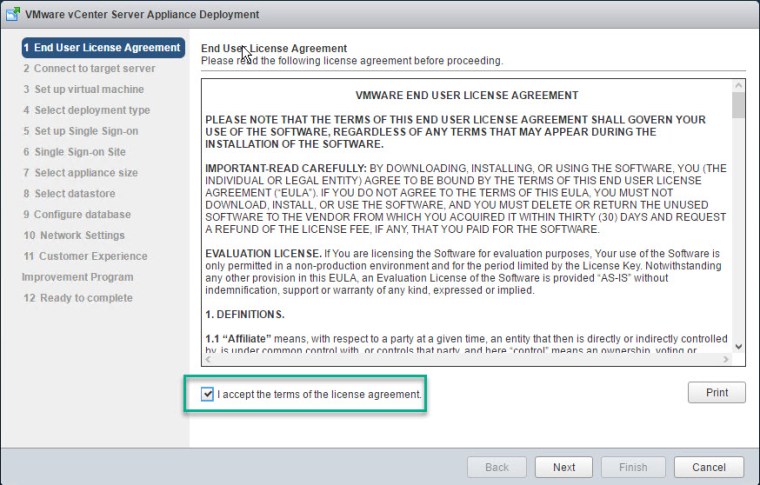

Accept the license agreement:

vcsa_psc_deply4

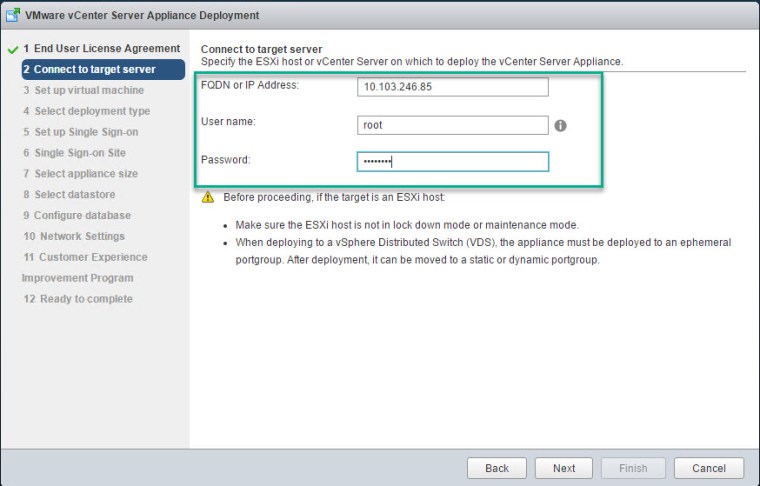

Enter the FQDN/IP of the ESXi host used as the provisioning target for the PSC Appliance:

vcsa_psc_deply5

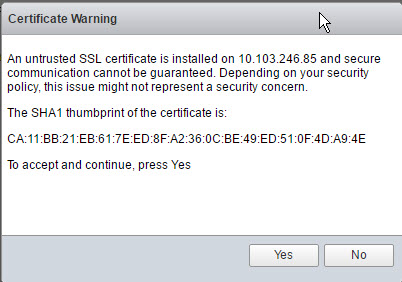

Click yes to accept the SHA1 thumbprint:

vcsa_psc_deply6

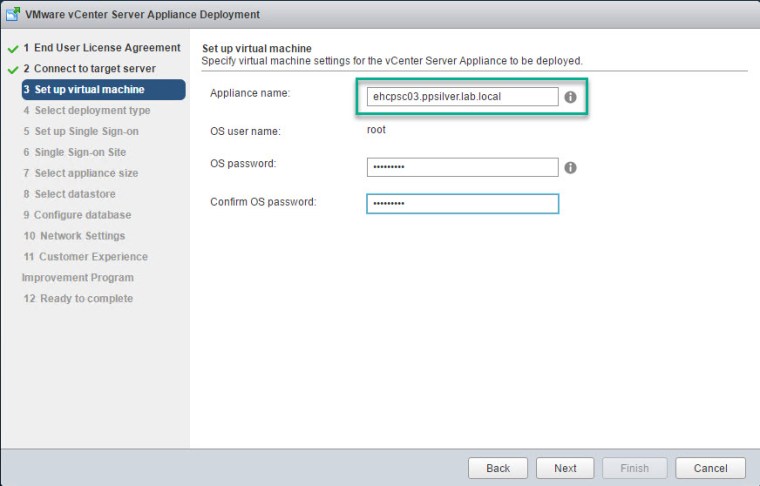

Enter the NEW PSC Appliance name:

vcsa_psc_deply7

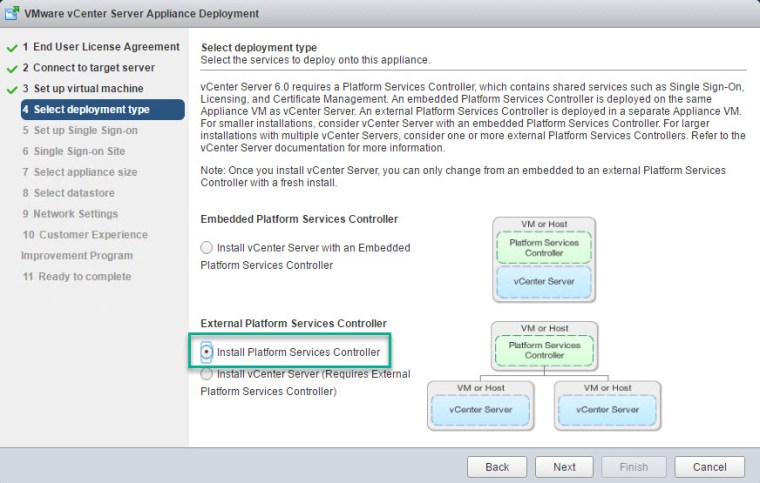

Choose the External PSC install option:

vcsa_psc_deply8

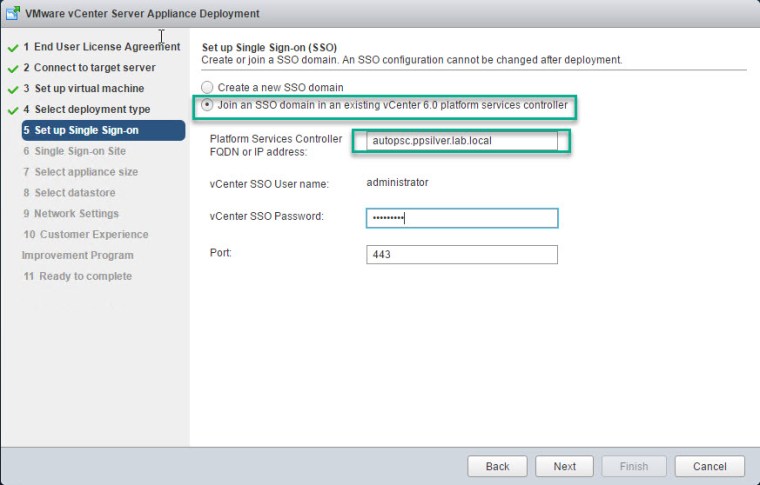

Chose to Join an SSO Domain and enter the FQDN/IP of the existing PSC:

vcsa_psc_deply9

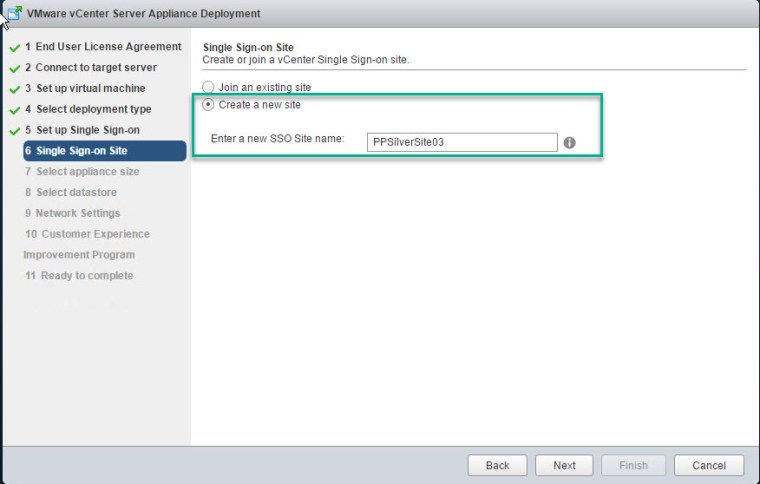

Enter the name of the new SSO Site name:

vcsa_psc_deply10

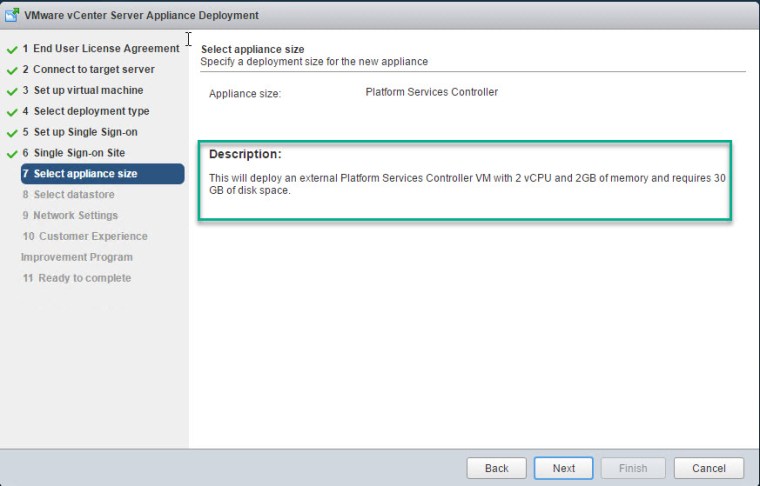

Sizing details of the appliance:

vcsa_psc_deply11

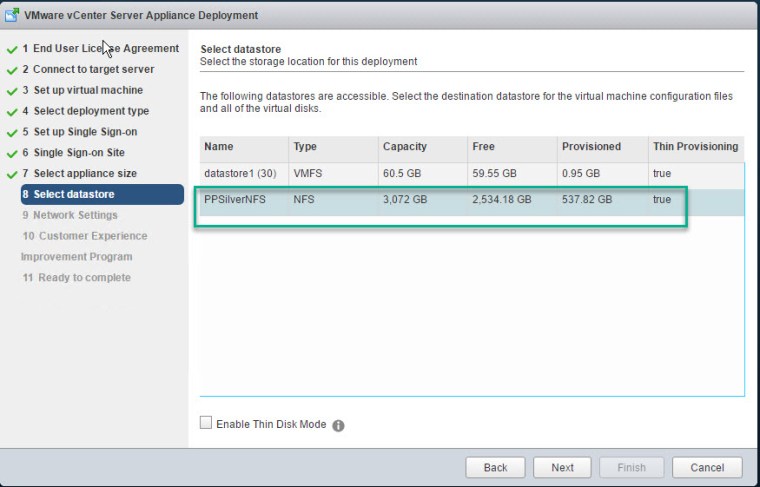

Select the datastore to use:

vcsa_psc_deply12

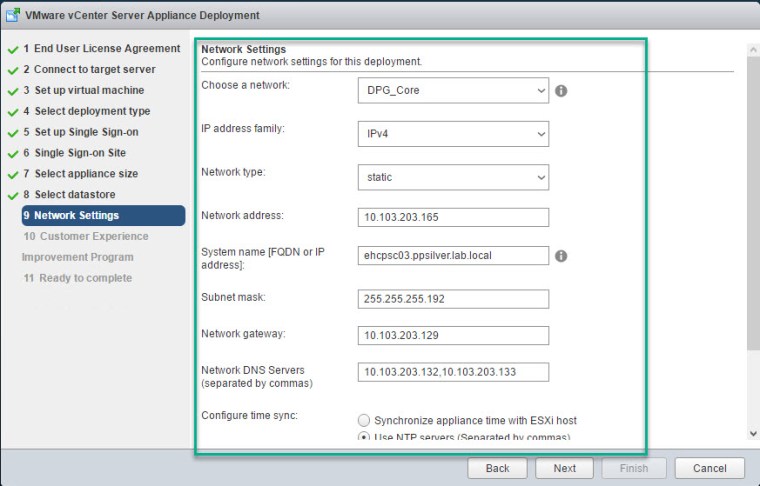

Enter the required network details for the NEW PSC:

vcsa_psc_deply13

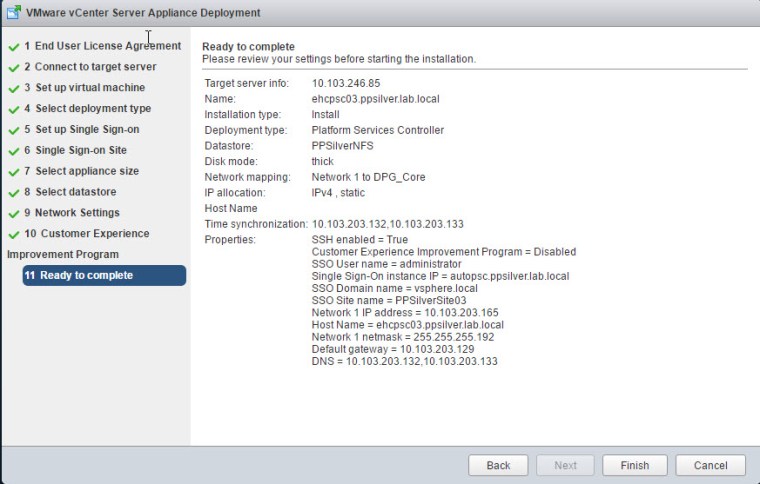

Review and click finish to begin the install:

vcsa_psc_deply14

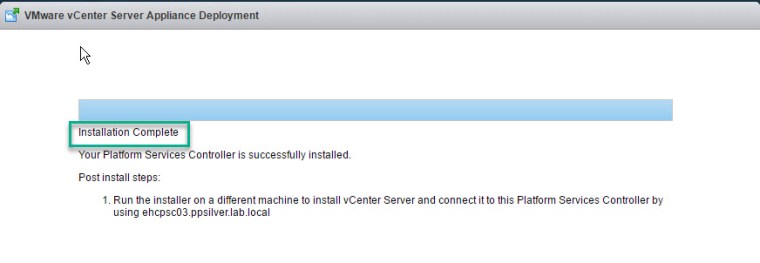

Install Complete:

vcsa_psc_deply15

Confirm the connectivity is valid: begin by SSH to the new appliance and enable shell access. More details on shell access here:

vSphere VCSA 6.x – Enabling Bash Shell

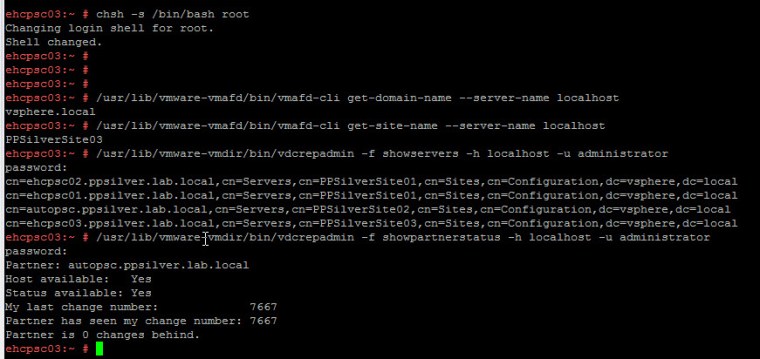

Run the following commands from the NEW PSC Shell to ensure the environment is as you expect?:

  • /usr/lib/vmware-vmafd/bin/vmafd-cli get-domain-name –server-name localhost
  • /usr/lib/vmware-vmafd/bin/vmafd-cli get-site-name –server-name localhost
  • /usr/lib/vmware-vmdir/bin/vdcrepadmin -f showservers -h localhost -u administrator
  • /usr/lib/vmware-vmdir/bin/vdcrepadmin -f showpartnerstatus -h localhost -u administrator

vcsa_psc_deply16

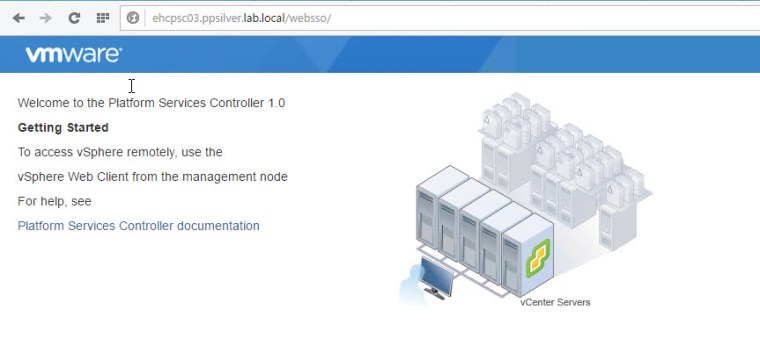

Navigate to https://FQDN_of_PSC/websso/ to confirm successful install:

vcsa_psc_deply27

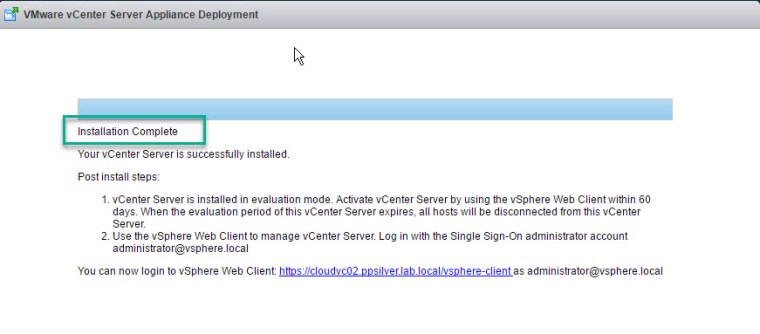

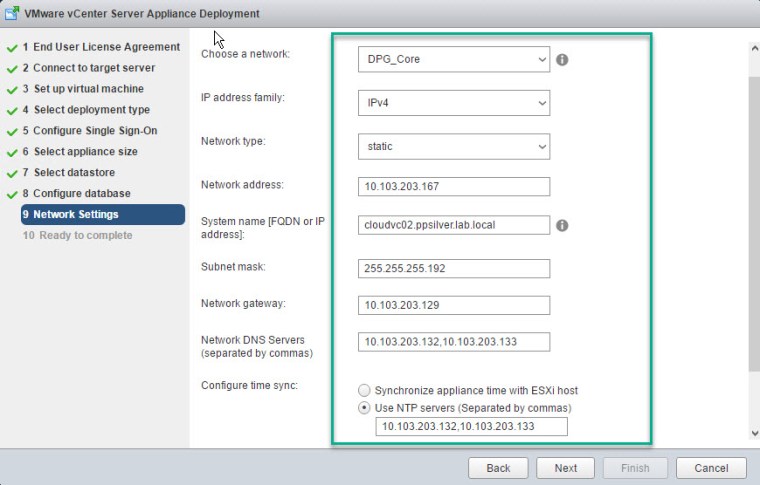

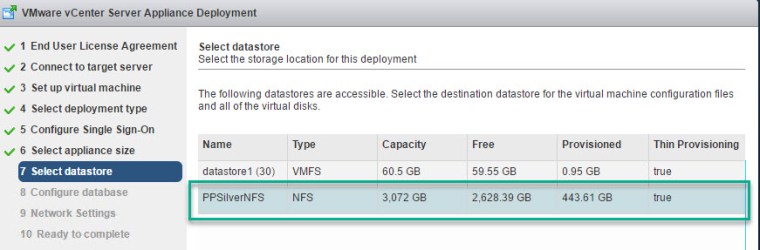

Installation of the vCenter Server Appliance (VCSA):

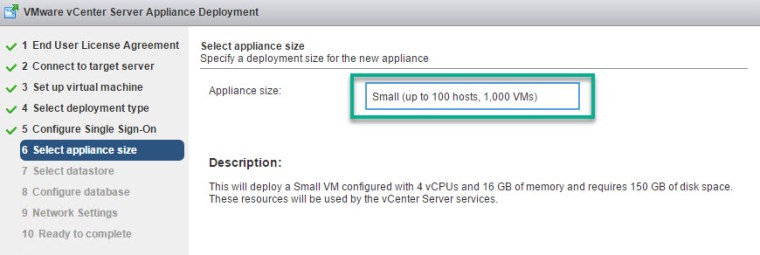

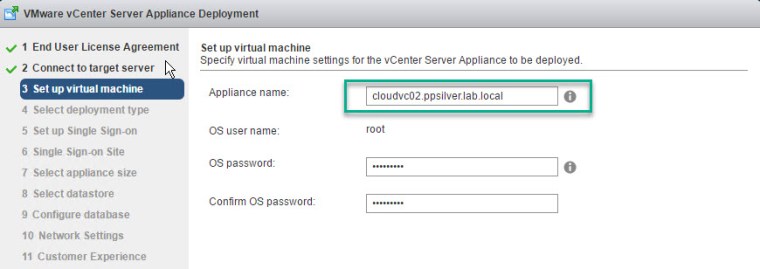

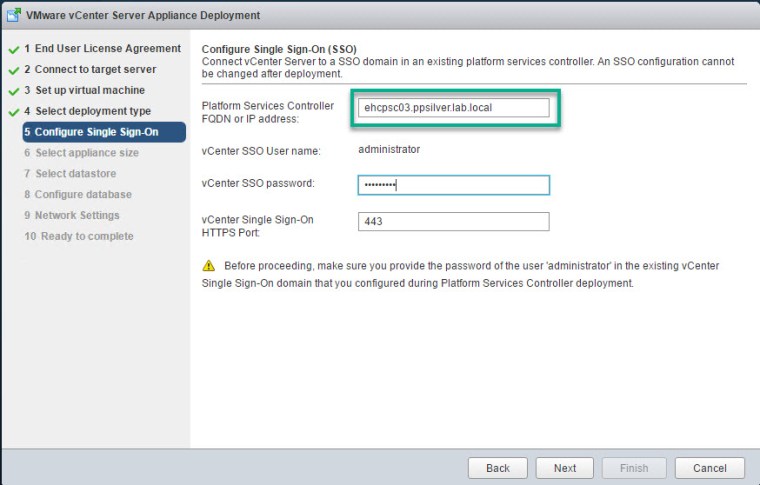

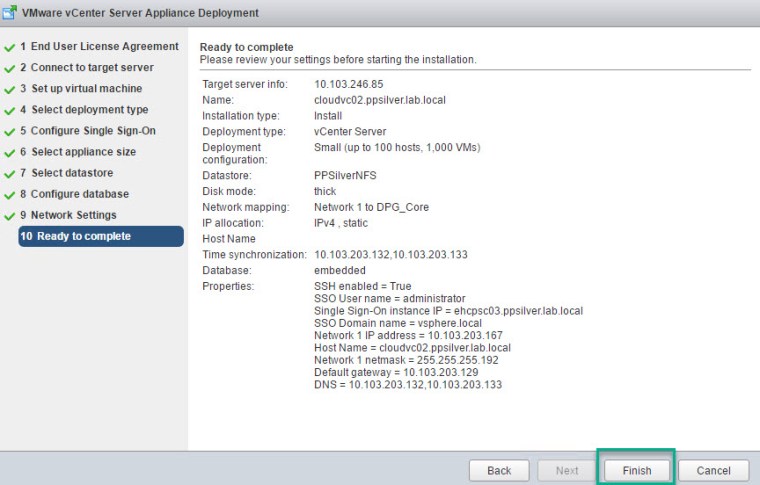

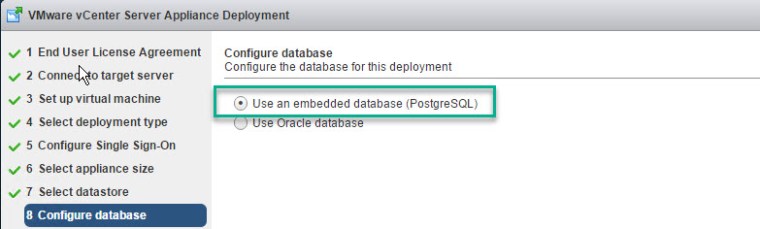

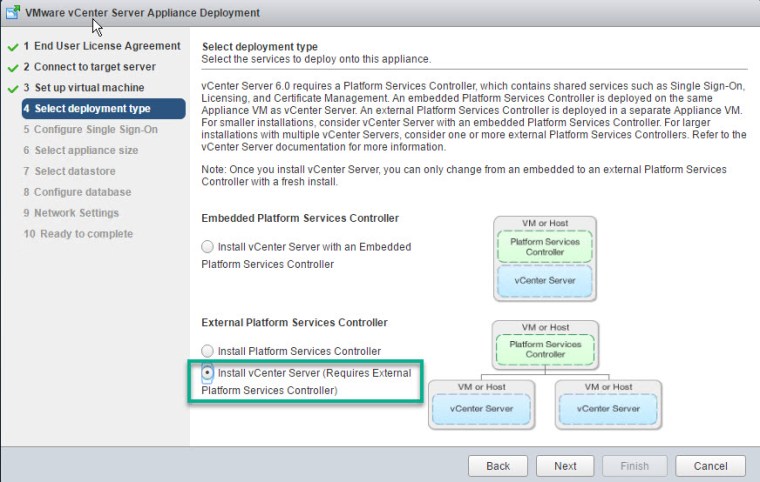

vcsa_psc_deply17vcsa_psc_deply18vcsa_psc_deply19vcsa_psc_deply20vcsa_psc_deply21vcsa_psc_deply23vcsa_psc_deply24vcsa_psc_deply25vcsa_psc_deply26

If you prefer to have replicated PSC partners per site, then deploy another PSC joining the primary PSC of the New site03 and then modify your SSO Domain replication agreements between sites in order to create a ring topology as per VMware best practices.
