vRealize Automation 7.1 Wizard Install – vCenter Agent Name not aligned with IaaS Host

Looks like there maybe a bug in the vRA 7.1 wizard deployment. I’m running vRA version  7.1 build 4270058 and Windows 2012 R2 build 9600.

Even though we configured the vCenter endpoint name as cloudvc01 during the vRealize Automation wizard based install, the IaaS Agent server was displaying the vCenter agent name using the FQDN cloudvc01.ppsilver.lab.local (screen captures below):

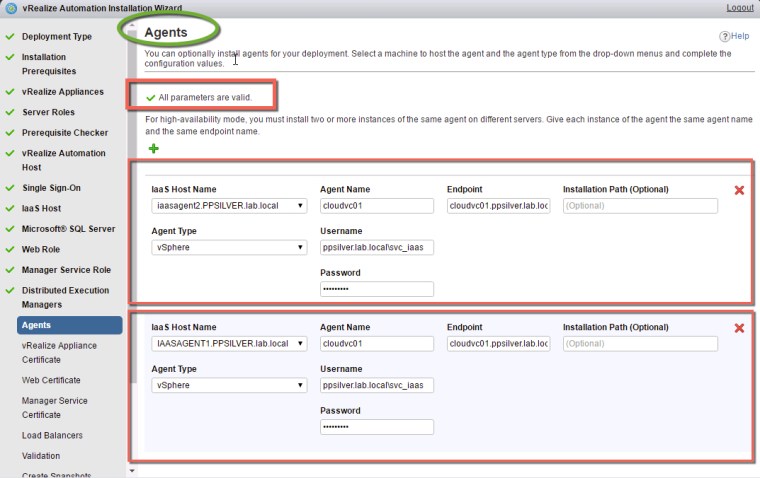

Wizard input – ‘Agents’:

vra71install23

Confirming that agent name ‘cloudvc01’ was actually applied in vRA:

vraiaasvcname6

vRA Logs indicating the name mismatch:

vraiaasvcname4

This led us to investigate the naming of the Agent on the IaaS Agent servers. First validation check was the service name, which appears correctly as you can see below:

vraiaasvcname1

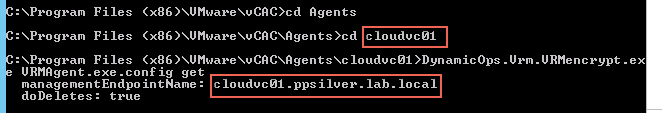

But on further analysis using the ‘VRMAgent.exe.config get’ command we could clearly see the misalignment, the FQDN cloudvc01.ppsilver.lab.local had been configured instead of just cloudvc01:vRAIaasVCName2.jpg

This forced us to manually change the managementEndpointName to cloudvc01 on the IaaS Agent servers using the set cmd, which then allowed vRA to discover vCenter as an endpoint with the correct name of just cloudvc01 and present up the compute resources associated with this endpoint (Thanks to Joni for spotting this):

vraiaasvcname7vraiaasvcname5

Did we try to enter the vCenter endpoint name as the cloudvc01.ppsilver.lab.local?

We sort of did that first, but we didn’t confirm if it worked properly. The errors did stop in the logs, but changing the endpoint name using cli was quite easy to do as well so we went with that. Don’t see a reason why it wouldn’t work as well, but using fqdn as endpoint name is very confusing.
