EMC VNX – POOL PERFORMANCE PLANNING

In this post I will give a guideline on how to calculate the required drive count for a VNX Pool based on Throughput performance (IOPS). This is only a Rough-Order-of Magnitude (ROM) which will give an approximation to the required drive count. Please consult EMC/VCE/Partner Technical sales as they will have access to the latest sizing tools in order to calculate the exact drive count for your worload.

Firstly we need to consider the impact the different RAID types will have on the drive calculation (Choosing your RAID type is for another discussion).The main difference between the RAID types is the random write performance. The performance of Read IOPS is much the same across all these RAID types. RAID 1/0 requires two disk operations for each host write, RAID 5 requires four operations per host write and RAID 6 requires six operations per host write. To summarise here is how the back-end RAID penalties differ:

Mirrored RAID 1/0: 1 Host Write = 2 Writes
Parity RAID 5: 1 Host Write = 2 Reads + 2 Writes
Parity RAID 6: 1 Host Write = 3 Reads + 3 Writes

So taking the above implications that Host writes have on the backend RAID types here are the calculations that can be used to determine the required Drive IOPS (Back-end):

Parity RAID 5: Drive IOPS = Read IOPS + 4*Write IOPS
Parity RAID 6: Drive IOPS = Read IOPS + 6*Write IOPS
Mirrored RAID 1/0: Drive IOPS = Read IOPS + 2*Write IOPS

Example RAID_5 IOPS Calculation
HOST WORKLOAD: 20,000 Random IOPS, 80 % Reads, 20% Writes
Using RAID_5 as an example with an I/O ratio of 80/20 with a total Host IOPS requirement of 20,000 we can calculate the Drive IOPS:

Drive IOPS = (0.8 * 20,000 + 4 * (0.2 * 20,000))
Drive IOPS = 32,000

Determine your disk count Based on IOPS:

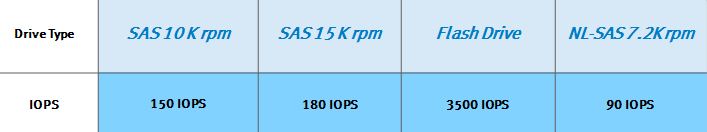

Using the provided table we can do a quick calculation to estimate the required drive count for the Pool. These examples and the estimated IOPS count is based on Small-block random I/O similar to the I/O’s of database systems (16KB or Less). The drive IOPS figures listed here are used as a starting point for 16KB or less for any I/0 larger than 16KB there will be a reduction in the IOP figures listed below.

IOPS_DISK

Take it that we want to use all “SAS 15K” drives in a heterogeneous pool as a first example:
Given the requirement for 32,000 IOPS we can do a quick calculation to get the required drive count to service this workload:

32,000 IOPS / 180 IOPS PER DISK = 177.8 Disks

As this is a RAID_5 based pool the private Raid groups will be using 4+1 thus rounding the drive count to 180 will give us 36 x RAID_5 4+1 private raid groups.

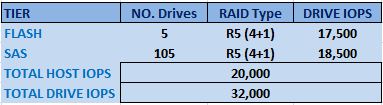

Now as a second example assume that a two-tiered FAST VP Homogenous Pool is the preferred option using Flash and SAS drives in a two tiered approach. Using 5 Flash Drives in a FAST VP Pool configuration then we would vastly reduce the count of SAS drives as follows:

5 X 3500IOPS (Flash Drives) = 17,500 IOPS serviced by the 5 Flash Drives

This leaves us with 18,500IOPS that will need to be serviced by “SAS 15K” drives which would have a total drive count requirement of :

18,500/180 = 102.7
Again using a RAID_5 4+1 configuration we would have a total drive count of 105 for SAS.

Thus giving a reduction of 70 (180-110) drives compared to the previous example of using a Heterogeneous VP Pool of all SAS 15K drives. The power of FLASH!

BLOG_IOPS

NOTE: The first four drives in a VNX are the system (Vault) drives and cannot be used in a pool.

10 thoughts on “EMC VNX – POOL PERFORMANCE PLANNING

  1. I hazve read a few just rijght stuff here. Certainly worth bookmarking for revisiting.
    I surprise how so muc attempt you place to create this kind
    of excellent informative site.

  2. What’s Taking place i am new to this, I stumbled upon
    this I have found It absolutely useful and it has aided me out loads.

    I am hoping to contribute & aid different users like its aided me.
    Great job.

  3. Hi,

    We have a storage pool with 81 SAS 600GB 15K RPM drives configured in RAID5 (8+1). Also, we have enabled FAST cache on that. FAST cache configured with 2x 200GB EFD drives (RAID1).

    As per EMC RoT, SAS 15K will support 180IOPS.
    So, i can say my storage pool will support 14580 RAW backend IOPS (81*180).
    My question is whether my math is correct or do we need to include FAST cache IOPS also in this?
    i.e 14580+ 7000 = 21580 IOPS

    Please clarify me.

  4. Hi David,
    Thanks. We have only one pool in that VNX5500. So, i consider that pool supportable IOPS=21580 (RAW).

    What is the difference if the same situation in VNX Gen-2 array?

    We also have VNX5400 and created a pool with 81x 900GB SAS 15K drives and we configured FAST cache bounded by 2x100GB SLC flash drives.
