Note: this is an example for reference only please use the VxRail installation procedures & services provided by Dell.
This is the 3rd in a series of posts covering VCF 5.0 On VxRail 8.0.100. The following detailed post provides an example walkthrough covering the process of:
Application Virtual Networks (AVNs) are a requirement in order to support the deployment of the vRealize Suite set of products. AVNs are dependent on NSX edge gateways having being deployed in the management WLD as a pre-requisite. The following steps detail how to deploy an NSX Edge cluster followed by deploying AVNs leveraging SDDC Manager automation. Required details for the deployment include the usual:
SDDC MANAGER AUTOMATED NSX-T EDGE DEPLOYMENT STEPS

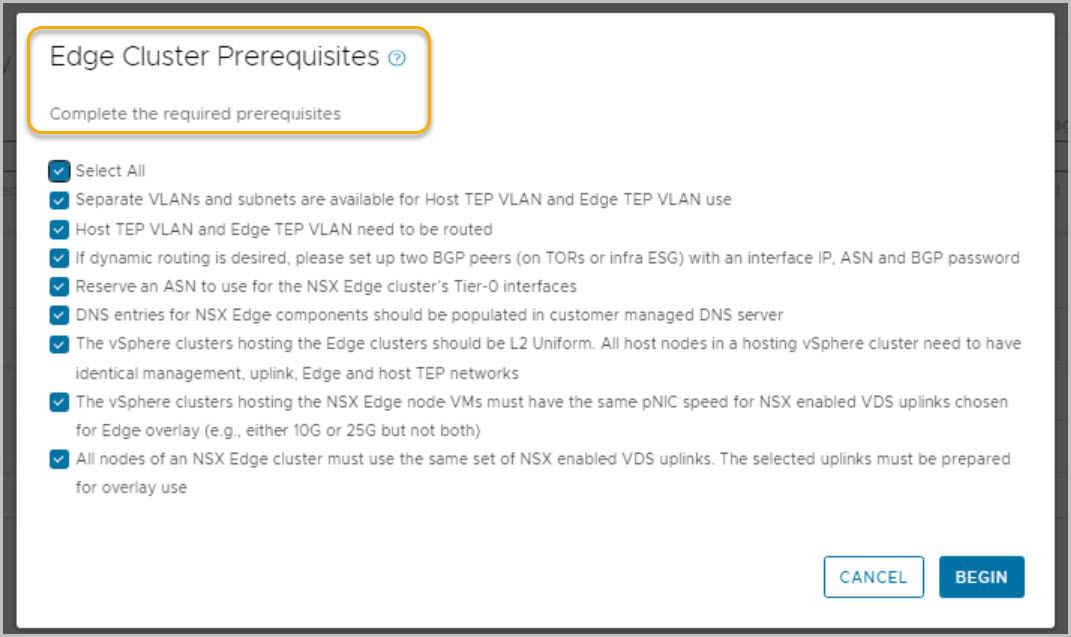

Please reference the VMware prerequisites Before you deploy an NSX Edge cluster:
Prerequisites for an NSX Edge Cluster
Note re. Stretched Cluster: You cannot deploy an NSX Edge cluster on a vSphere cluster that is stretched. You can stretch an L2 uniform vSphere cluster that hosts an NSX Edge cluster.

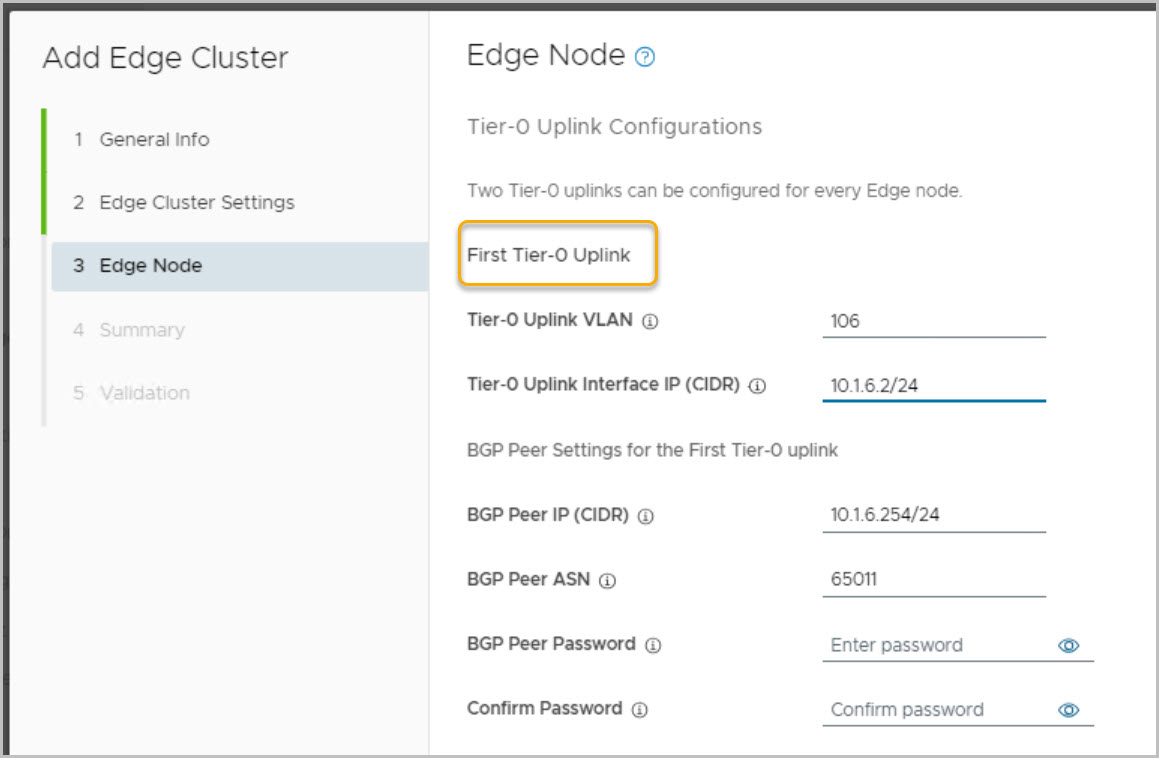

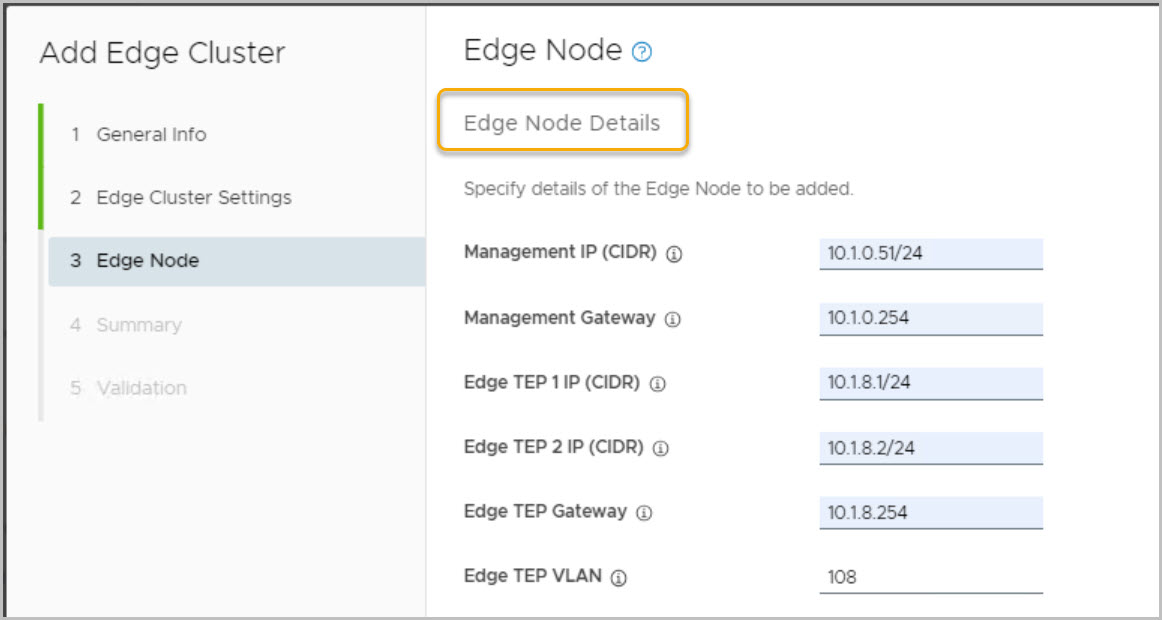

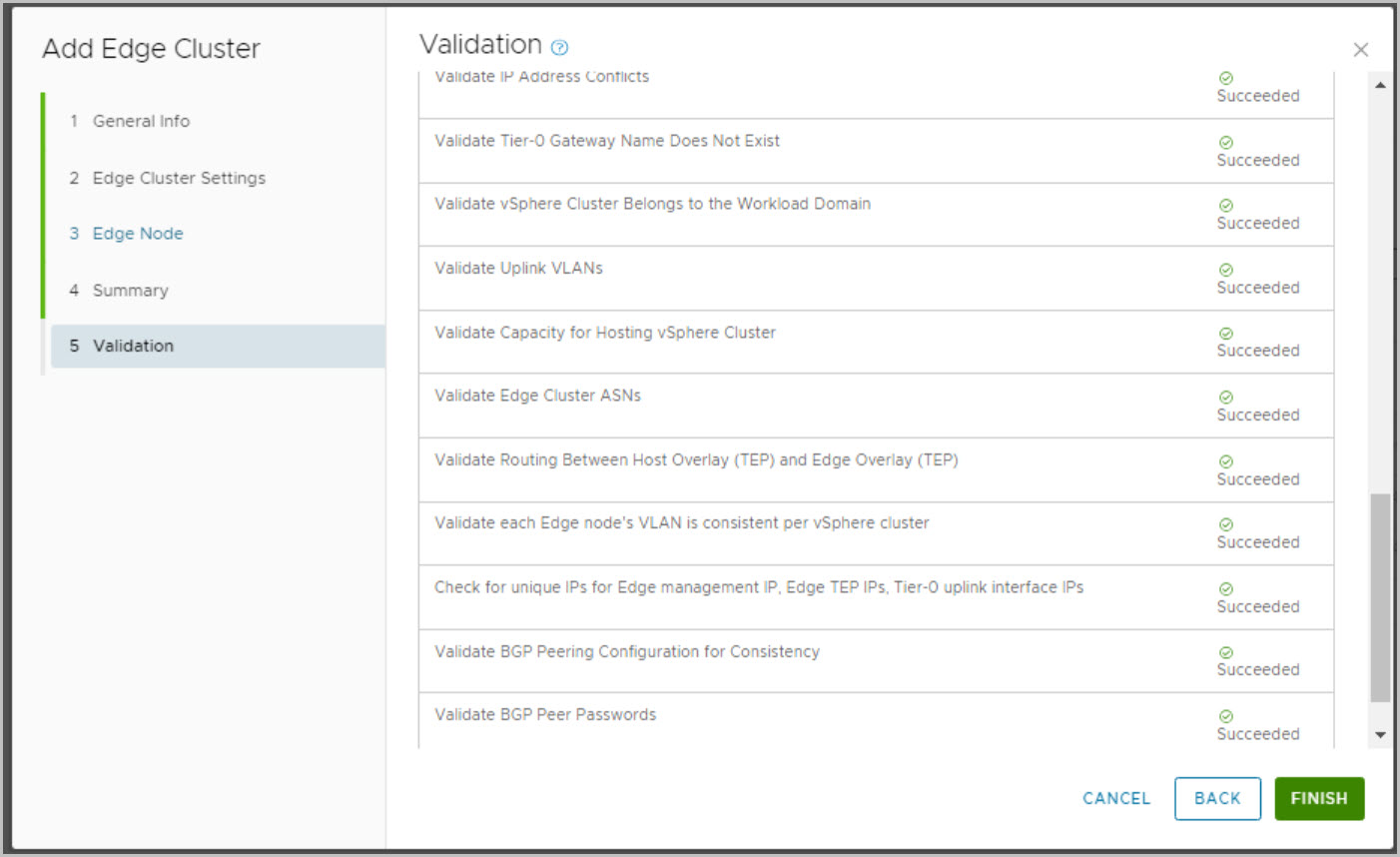

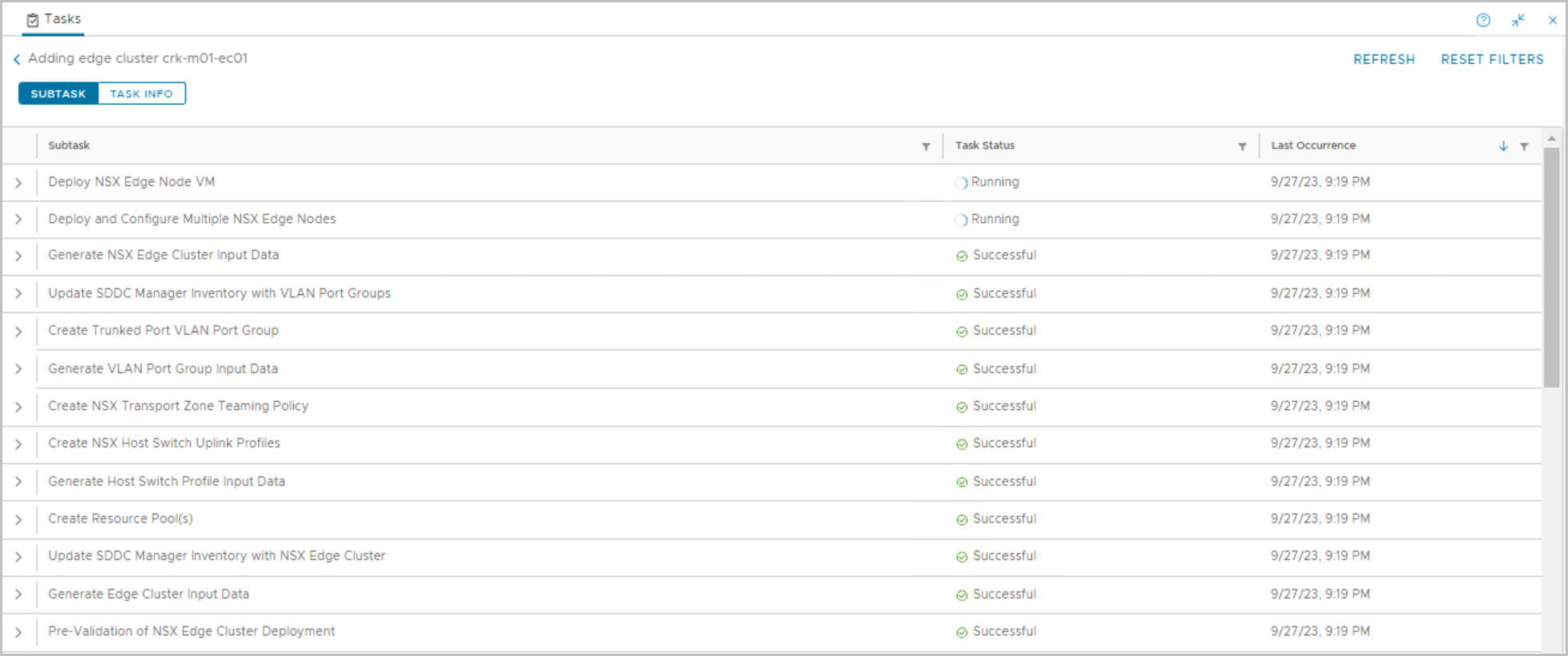

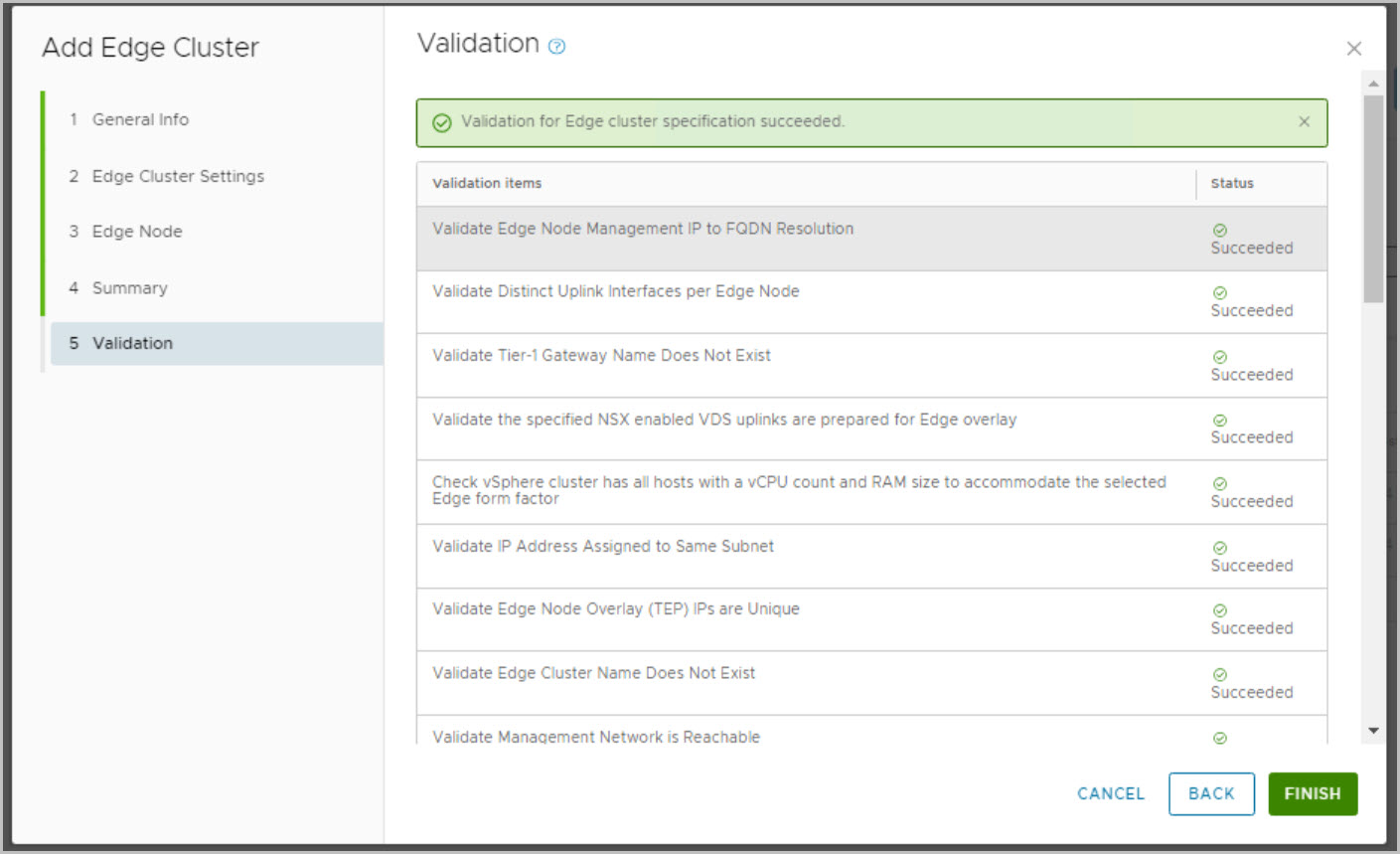

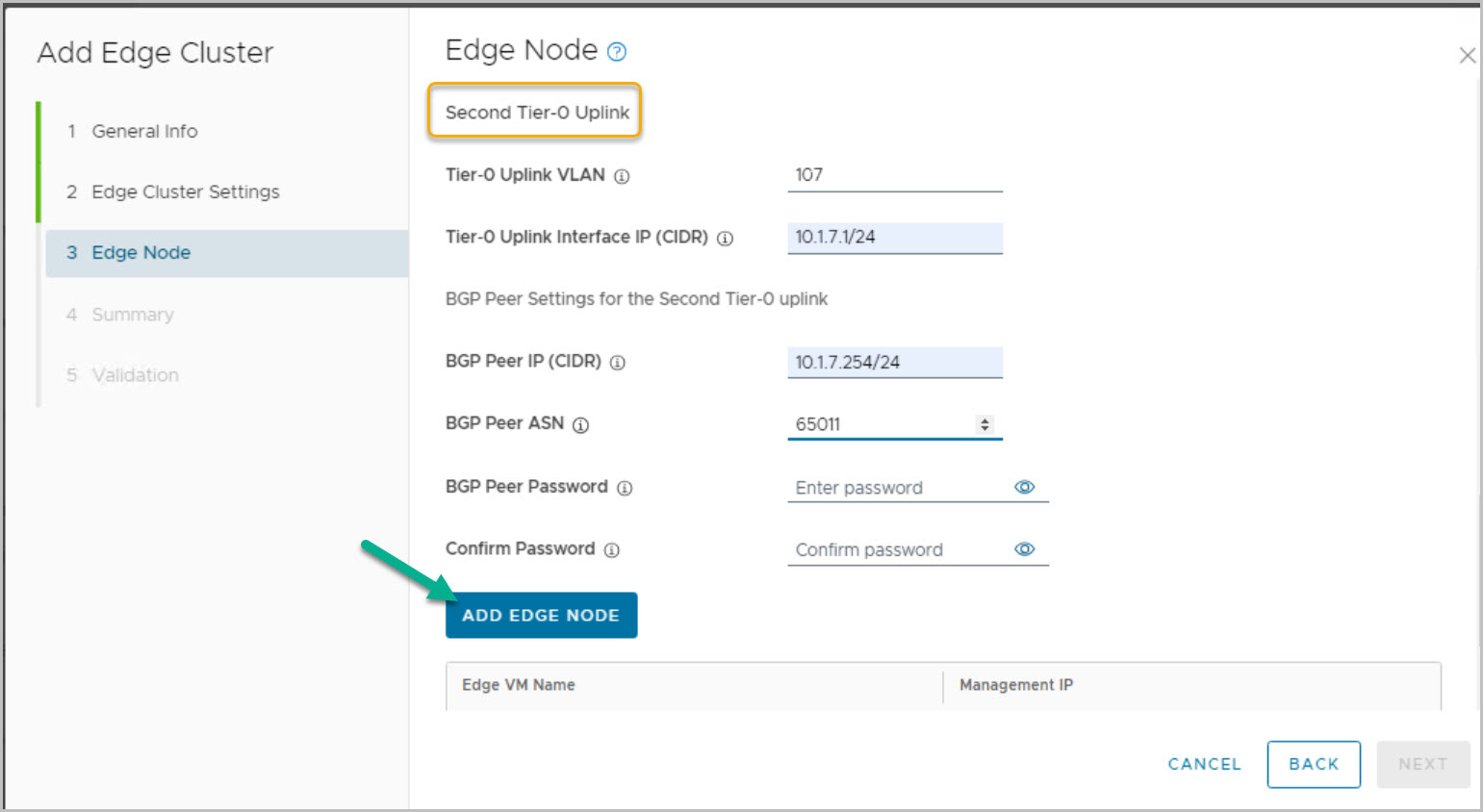

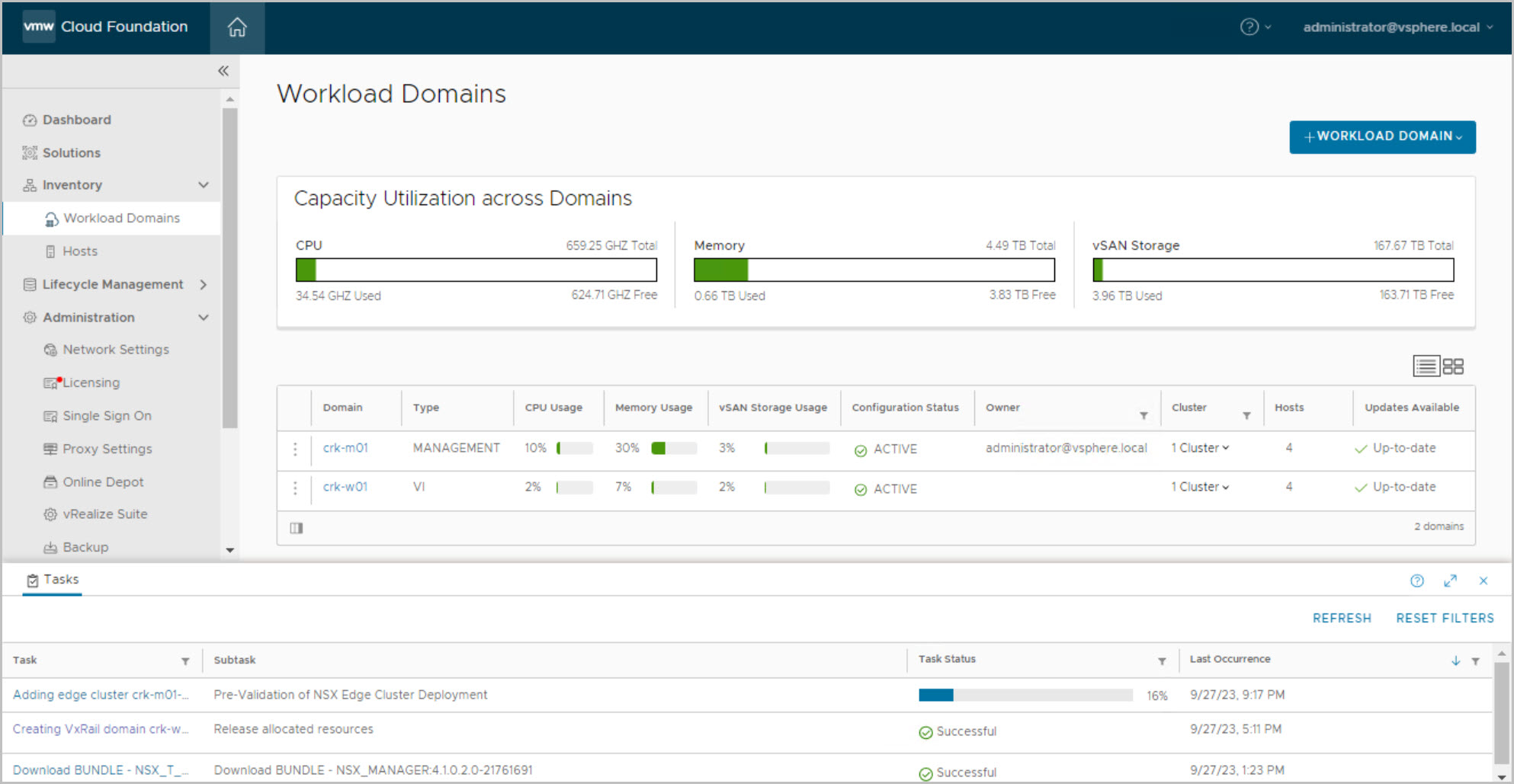

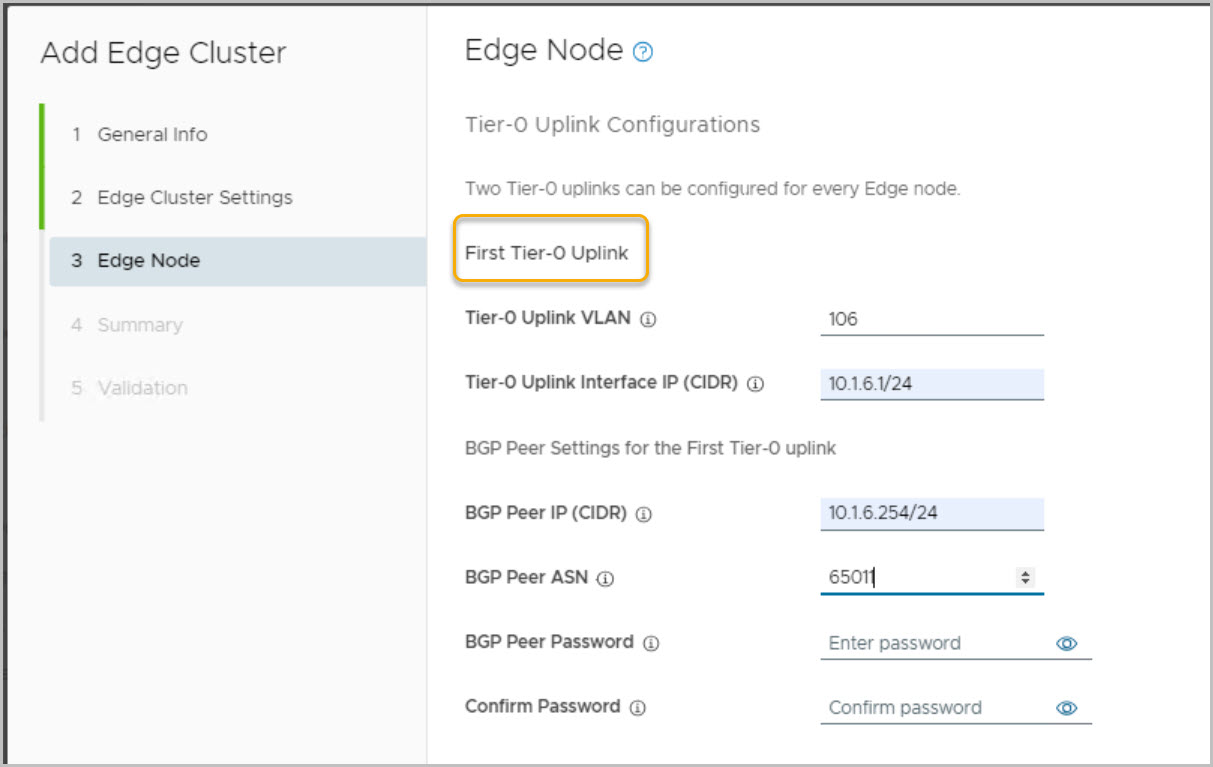

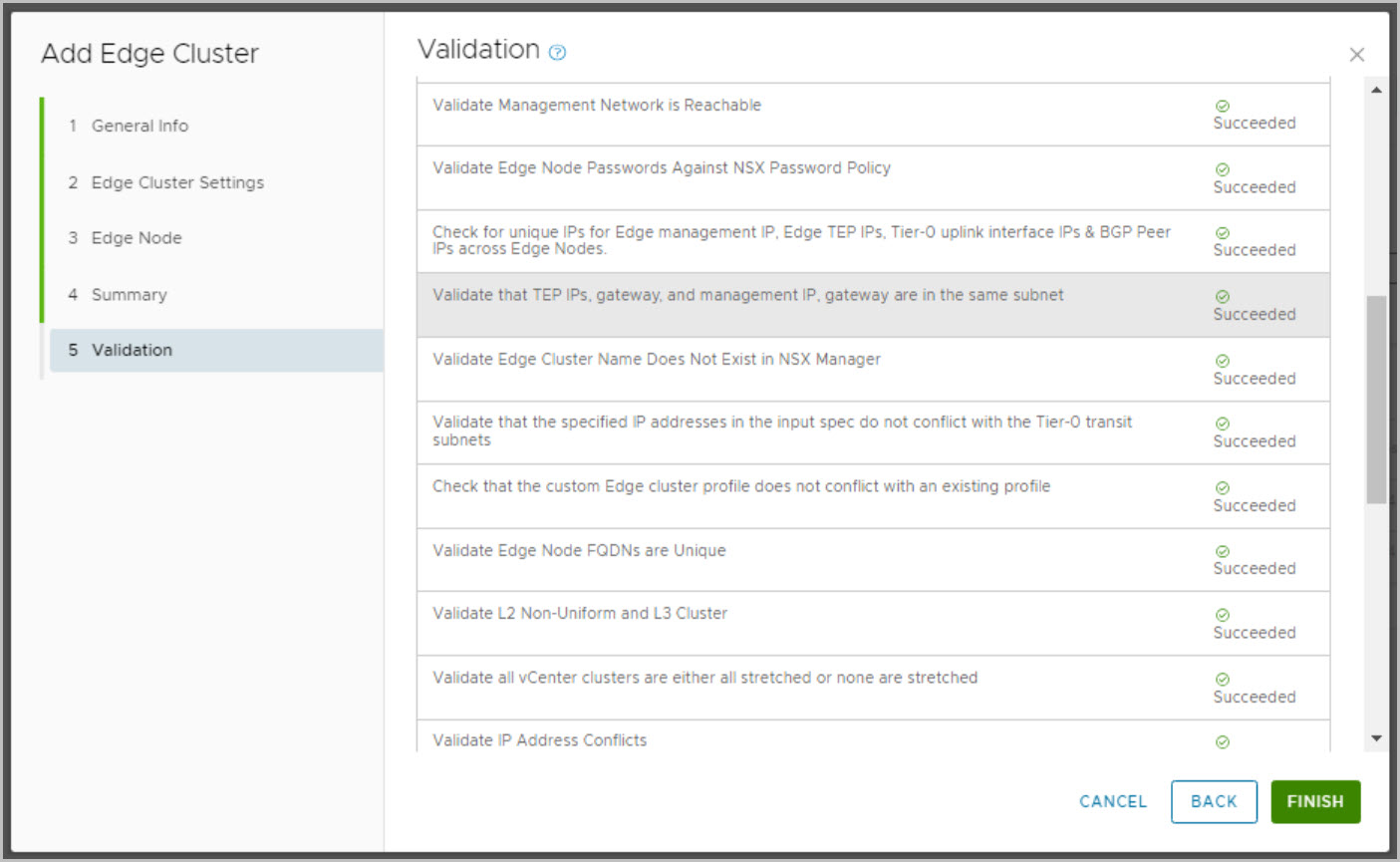

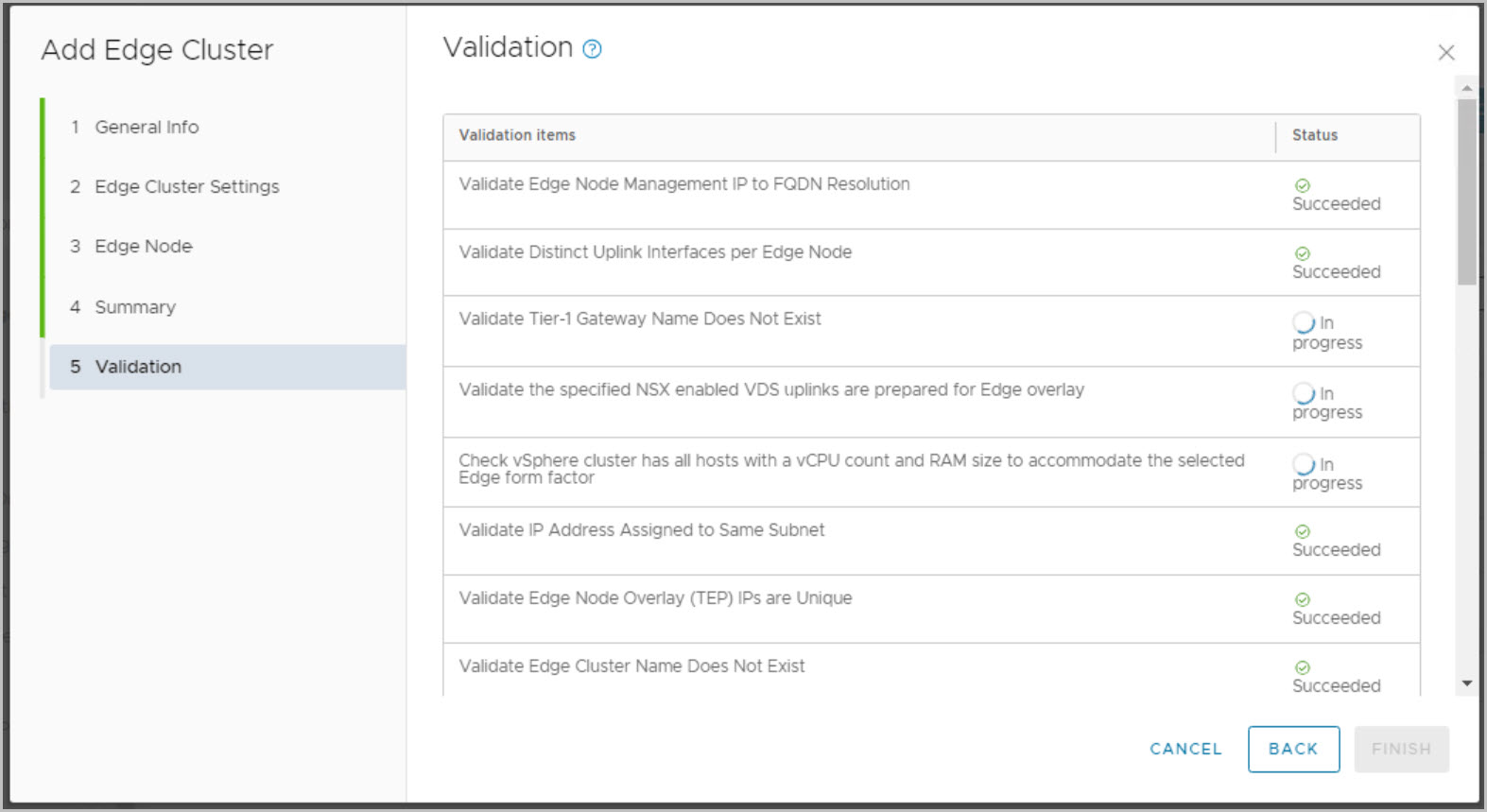

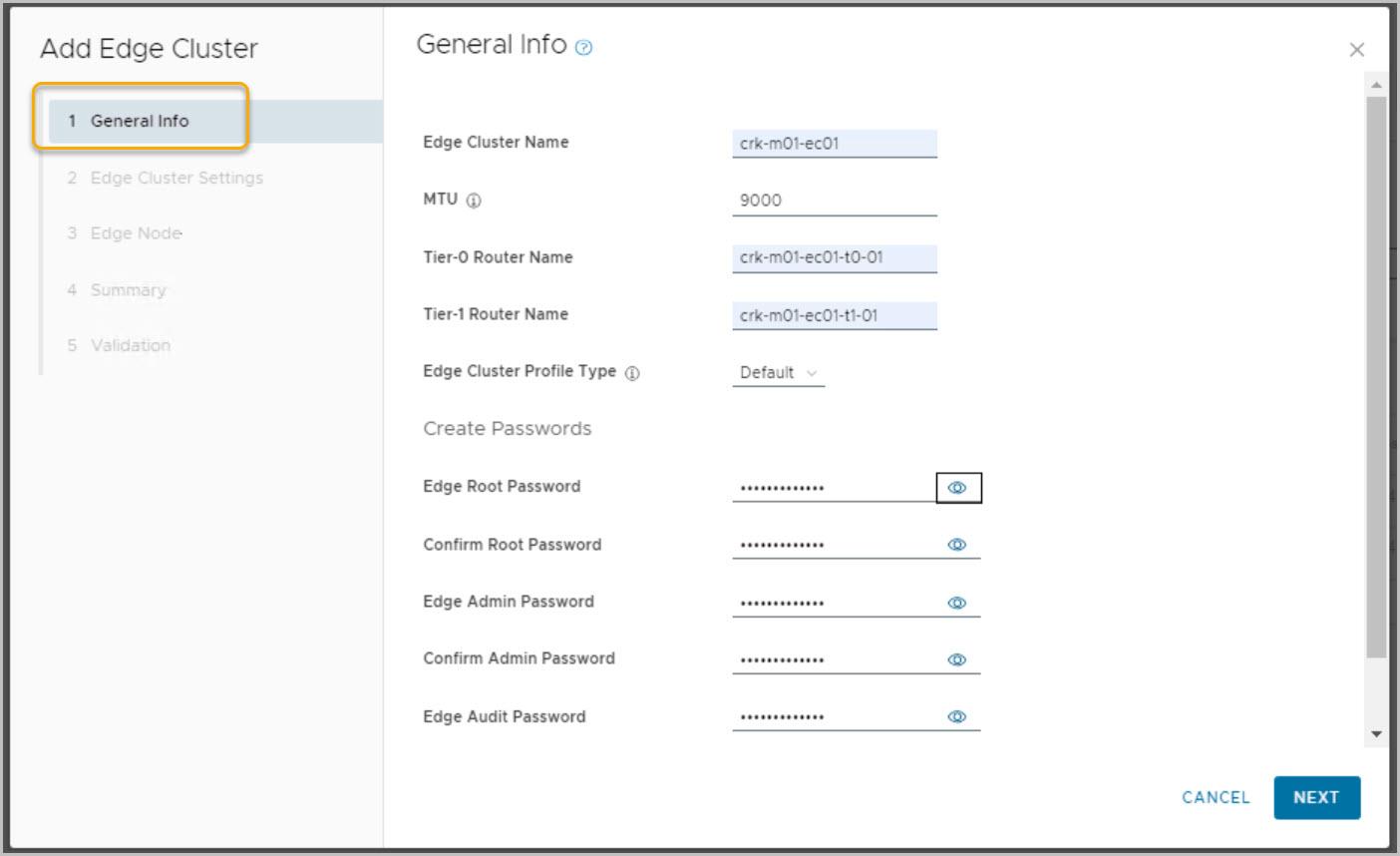

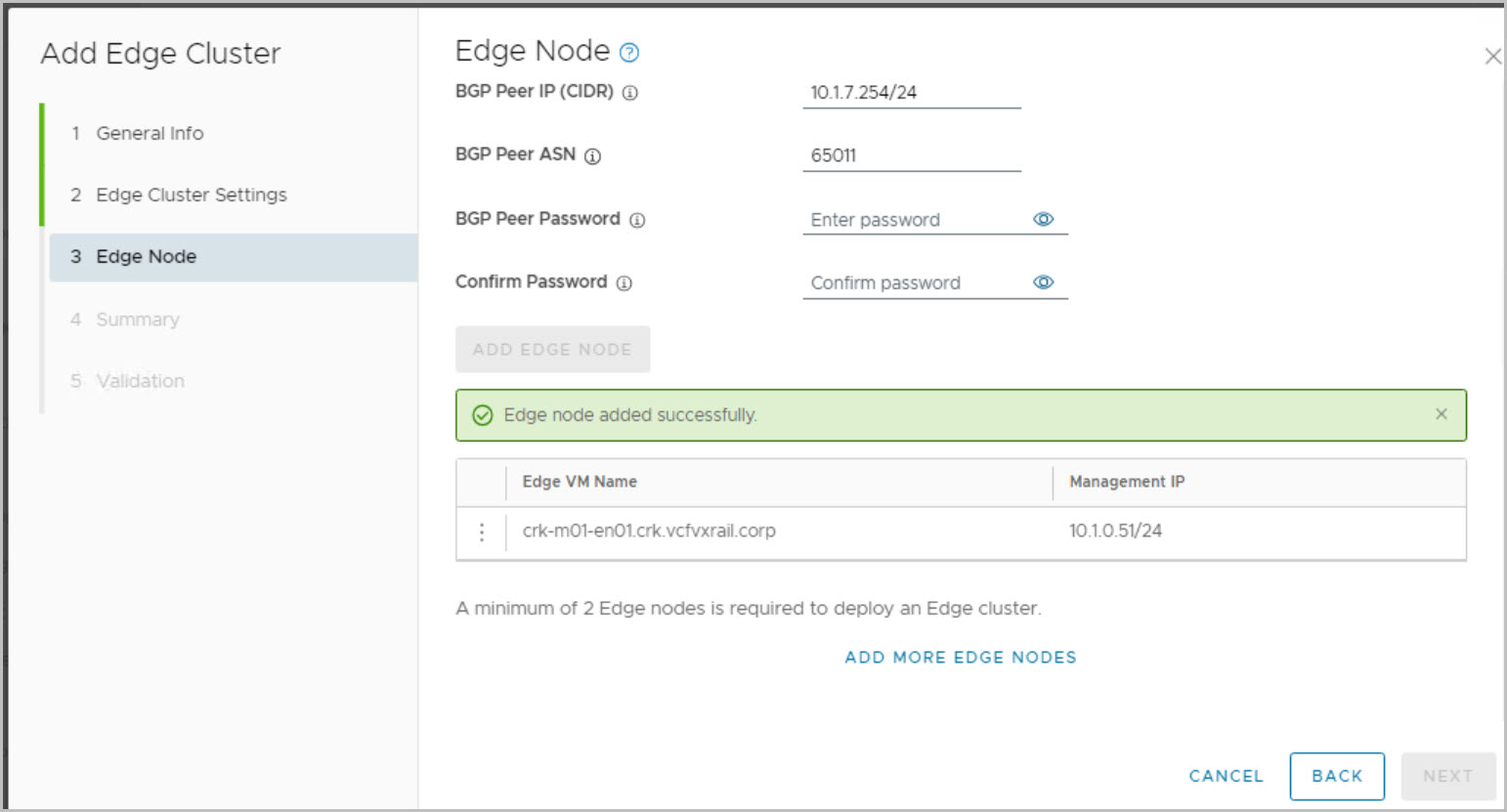

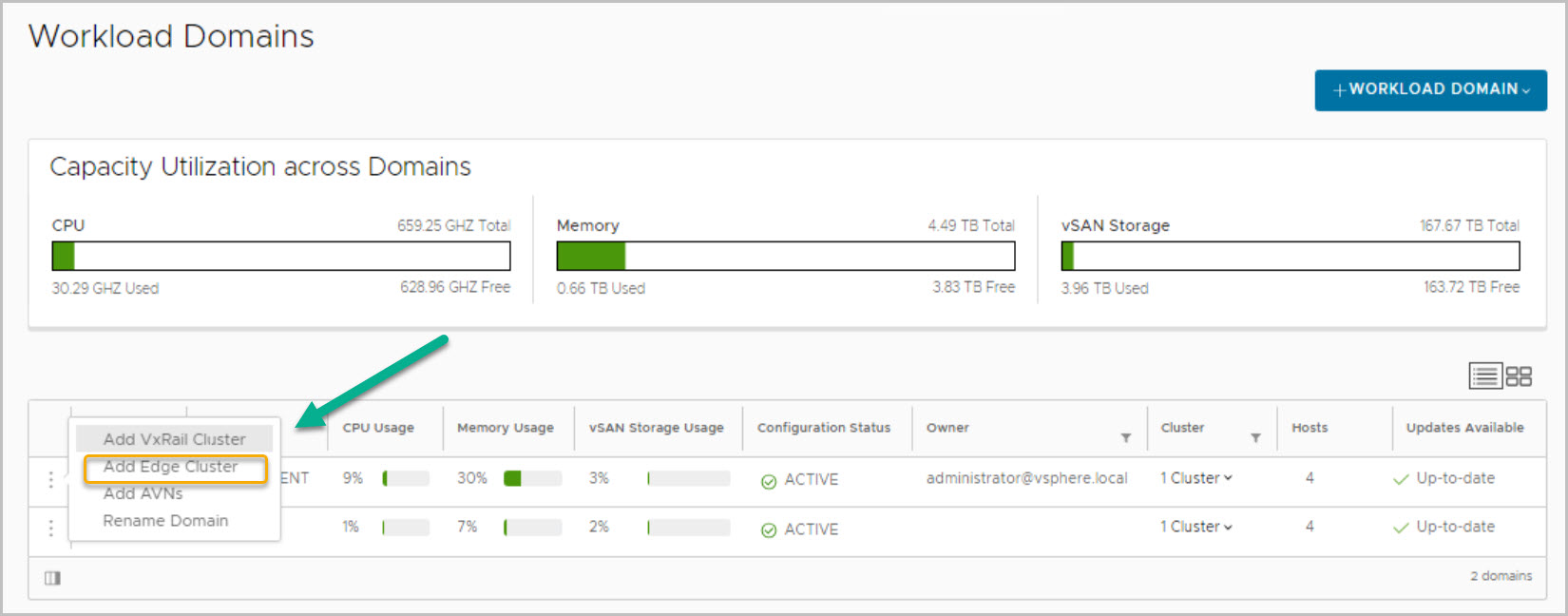

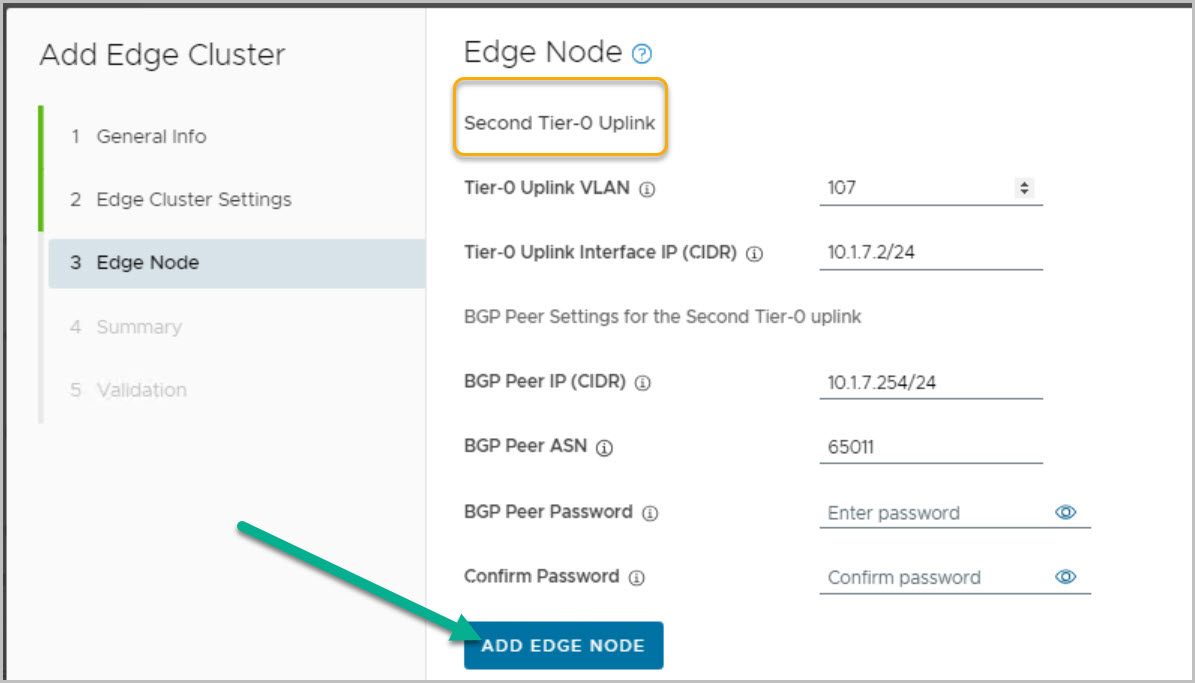

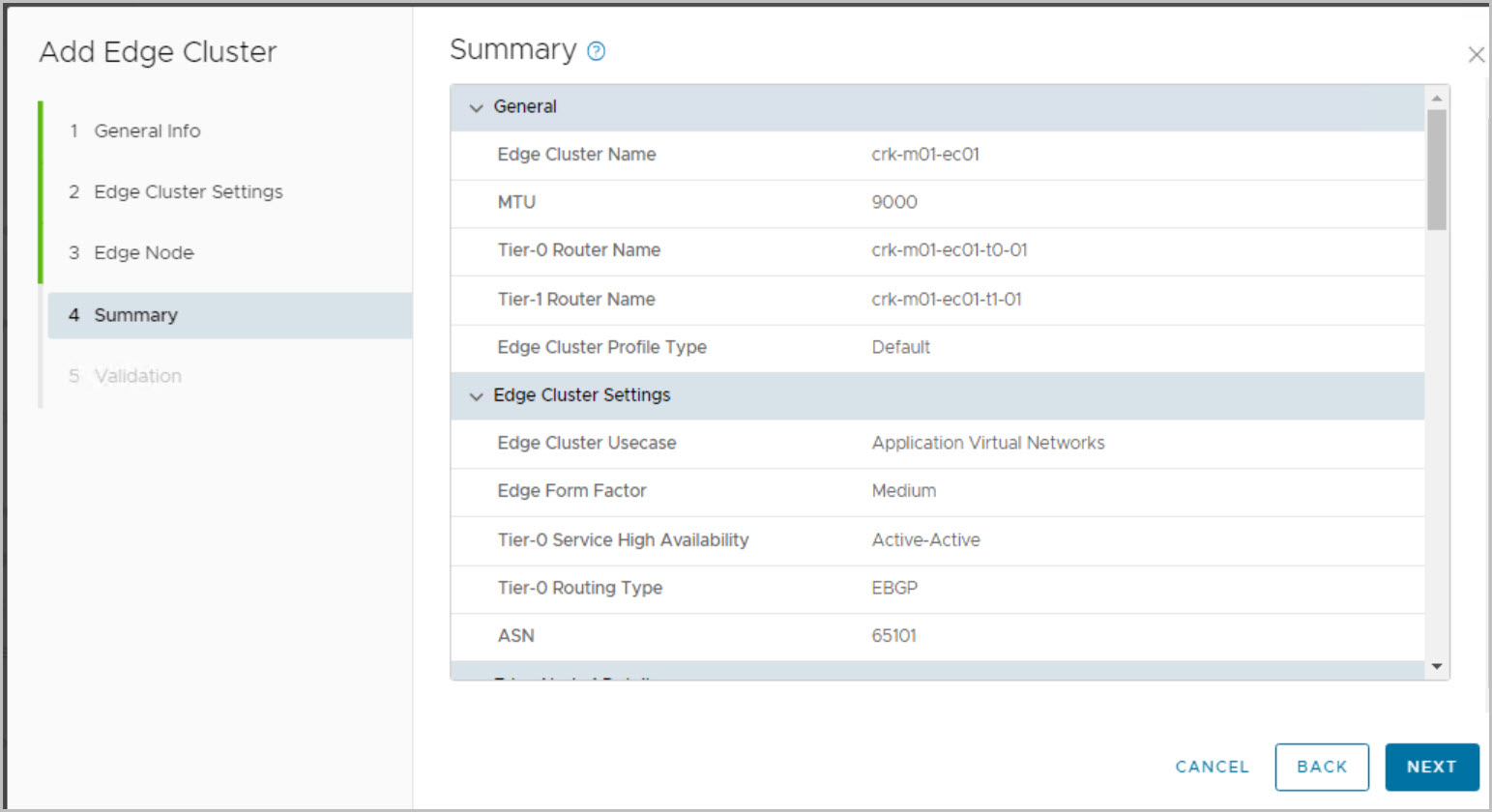

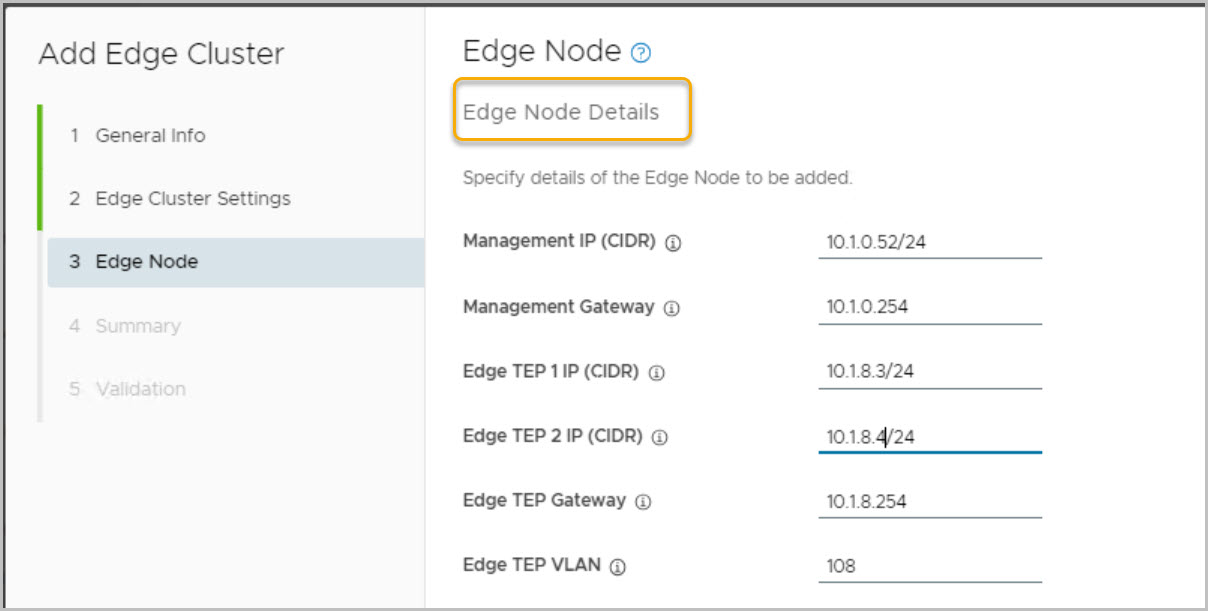

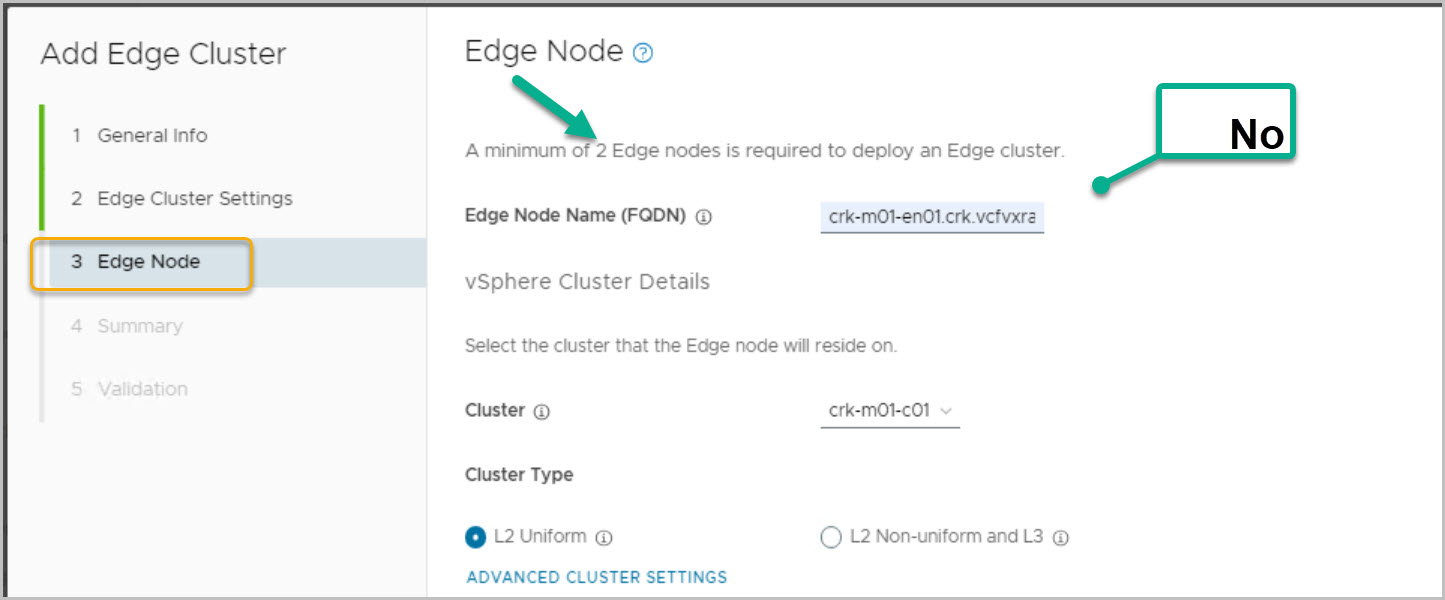

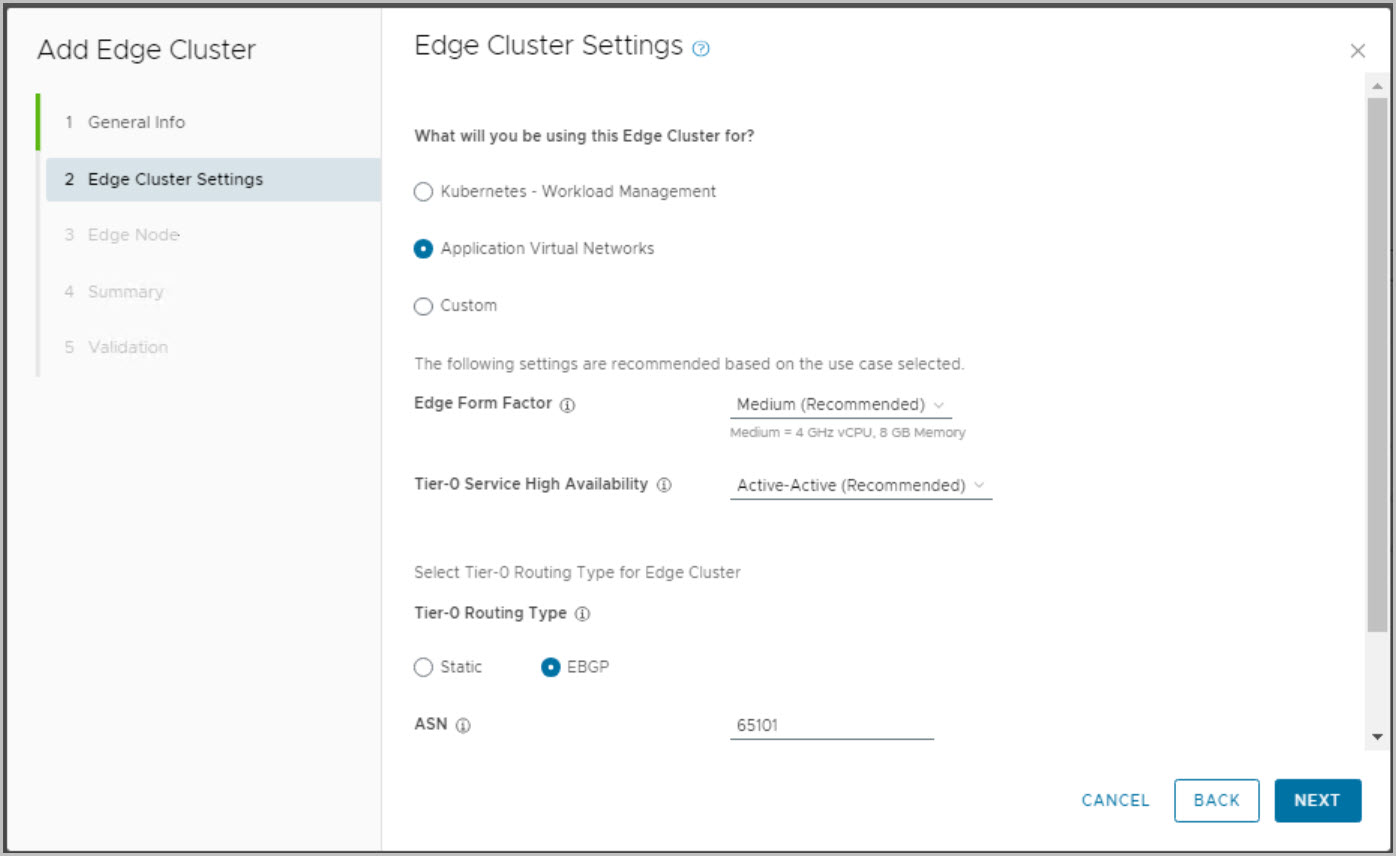

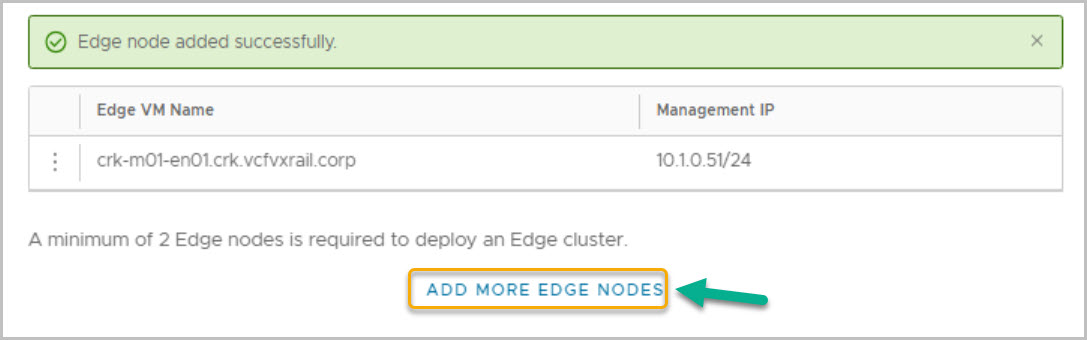

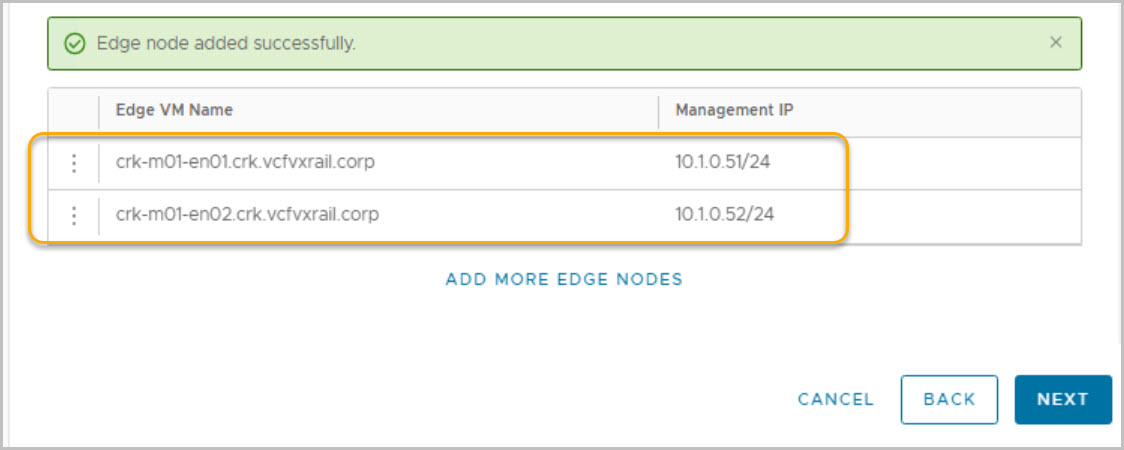

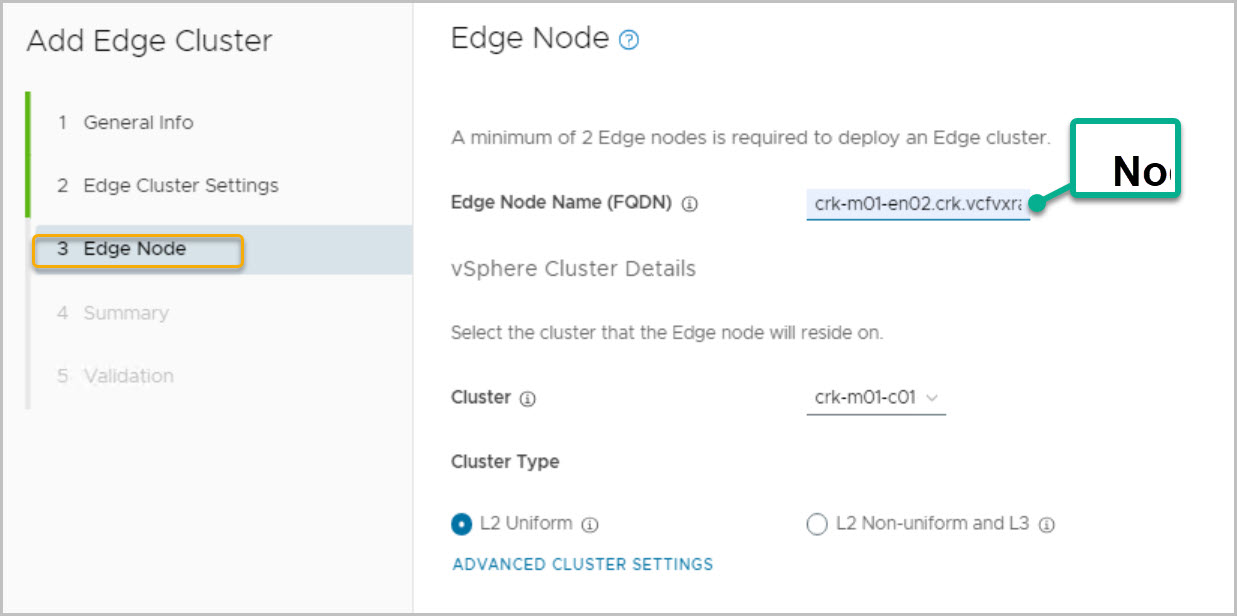

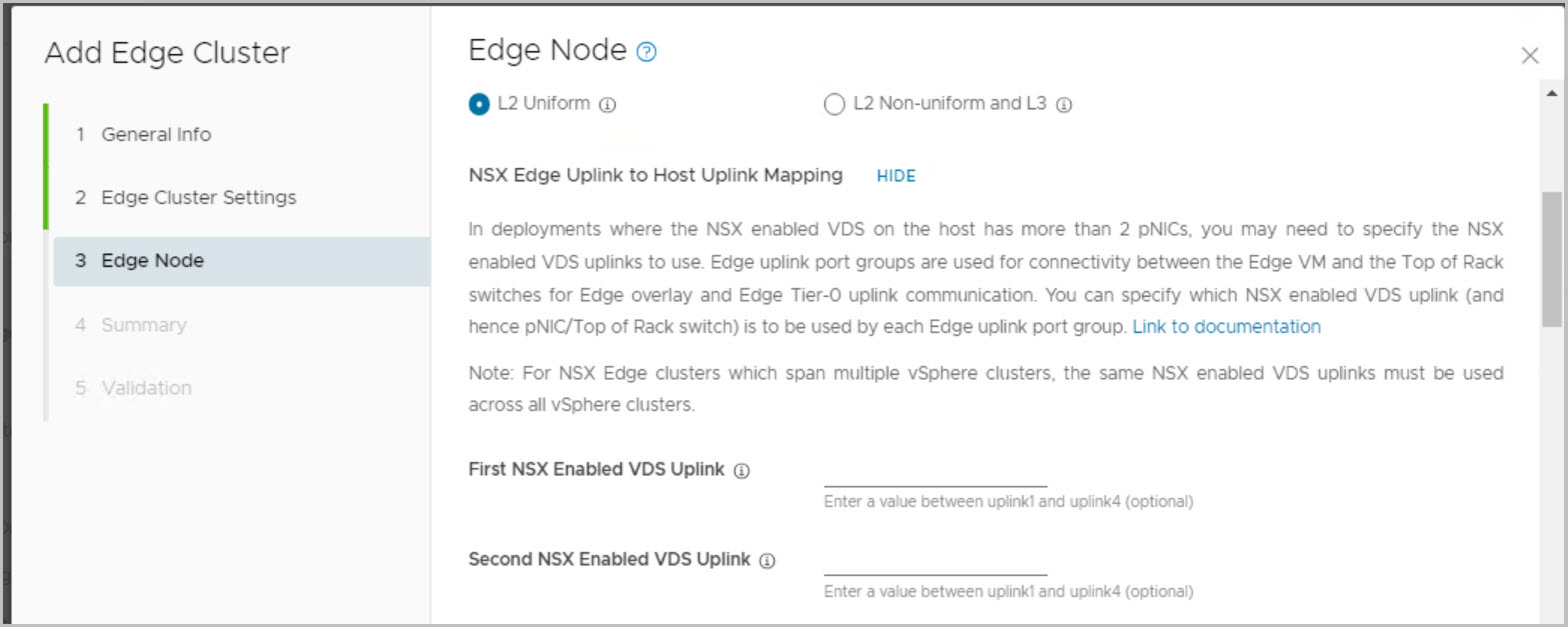

Go to SDDC Manager UI Select Inventory > Workload Domains Click on the name of the Management domain. Select Actions > Add Edge Cluster:

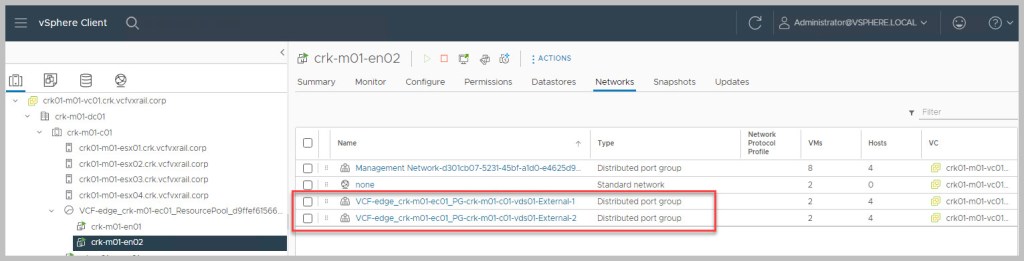

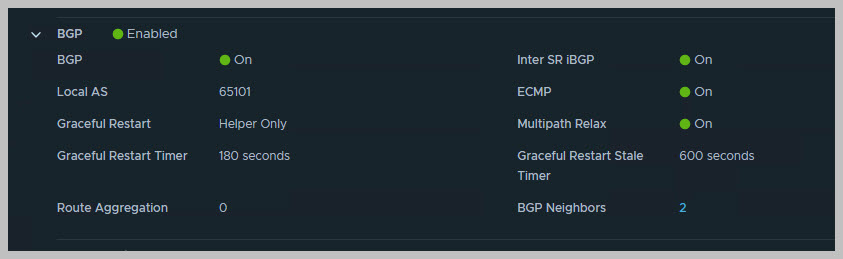

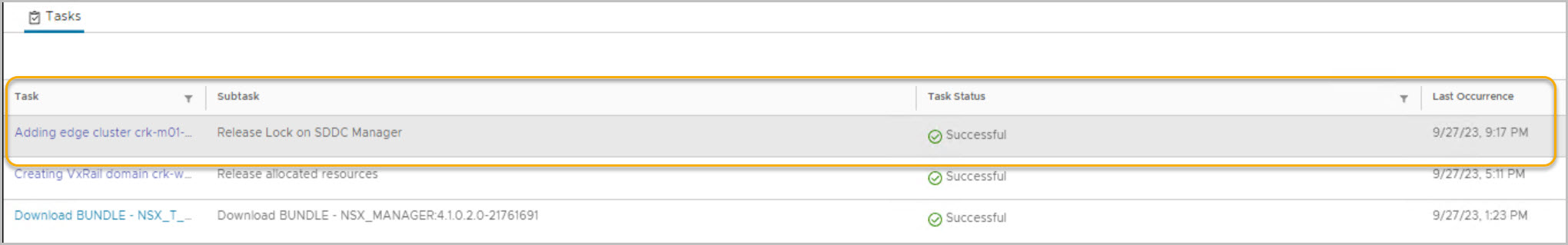

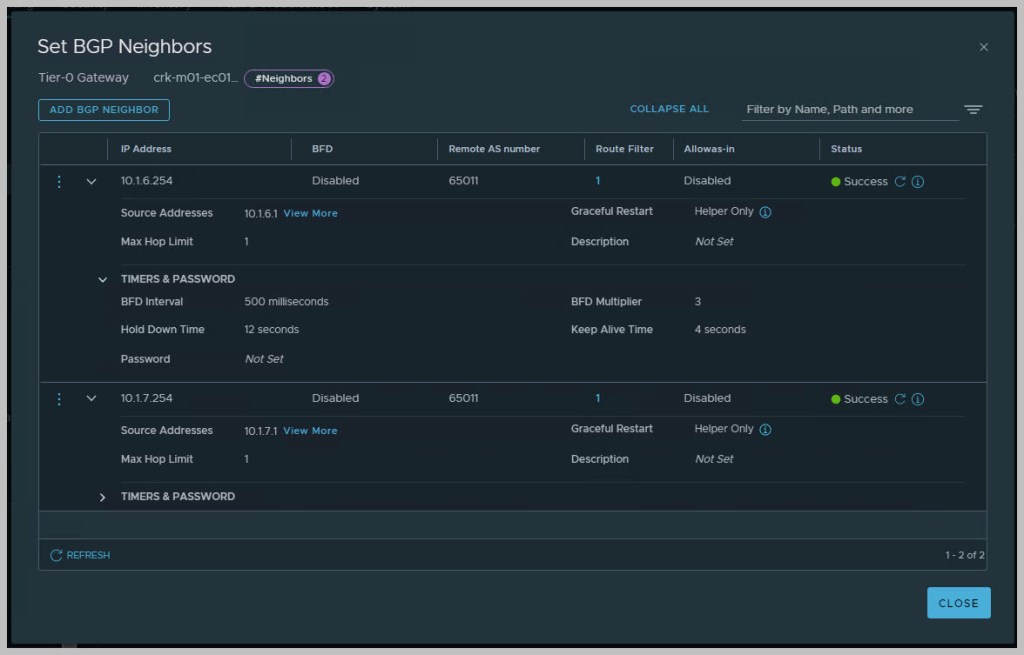

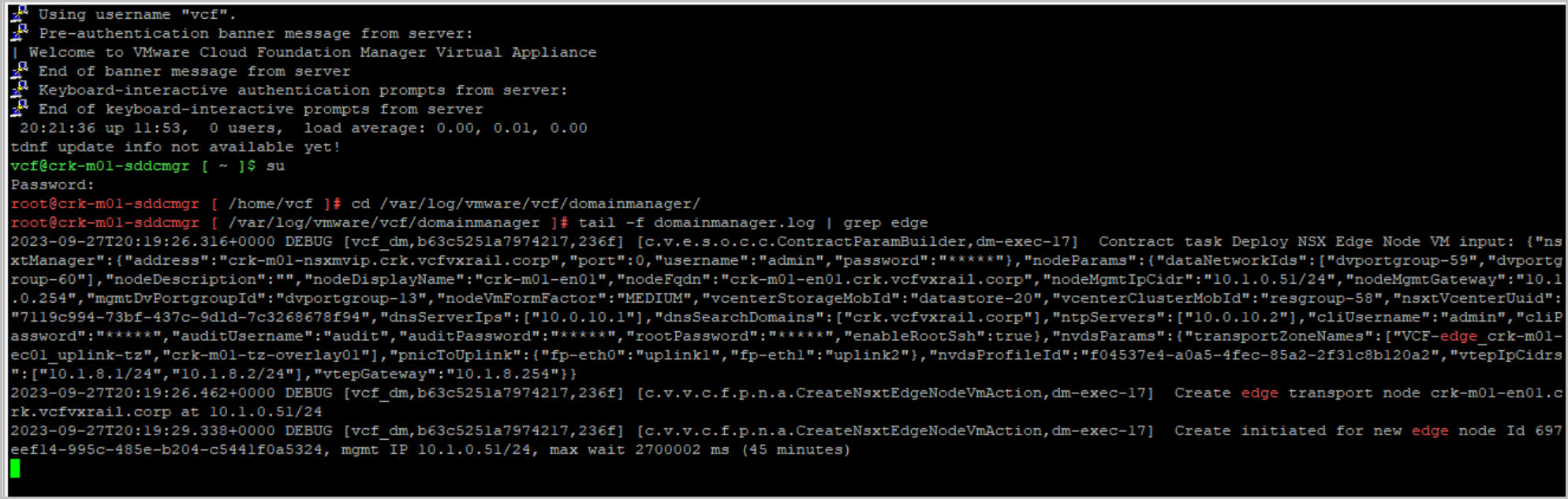

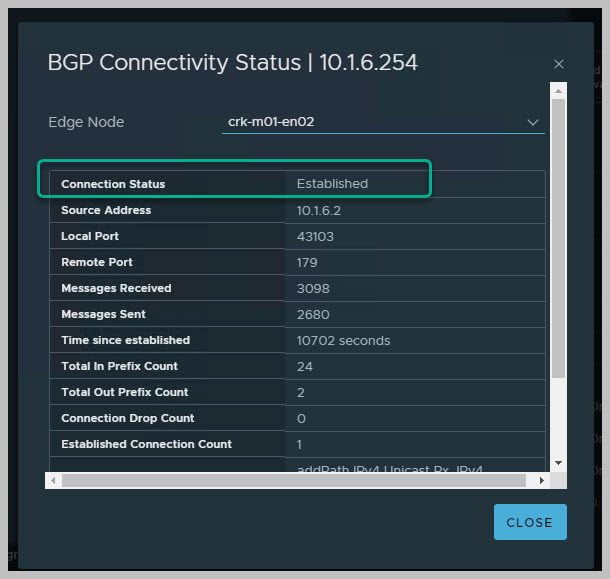

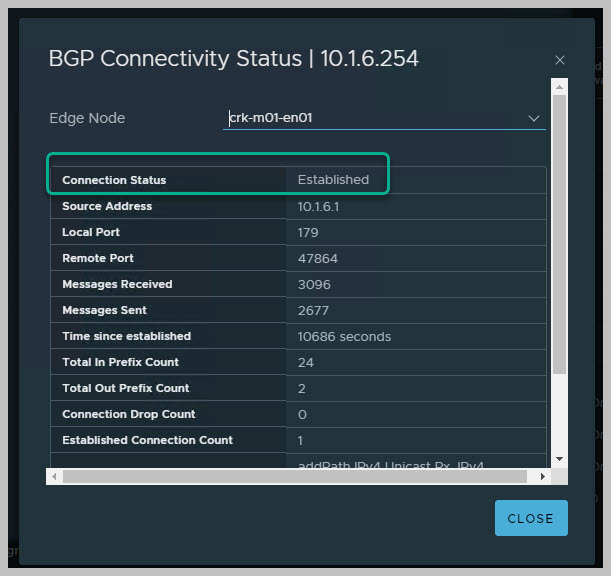

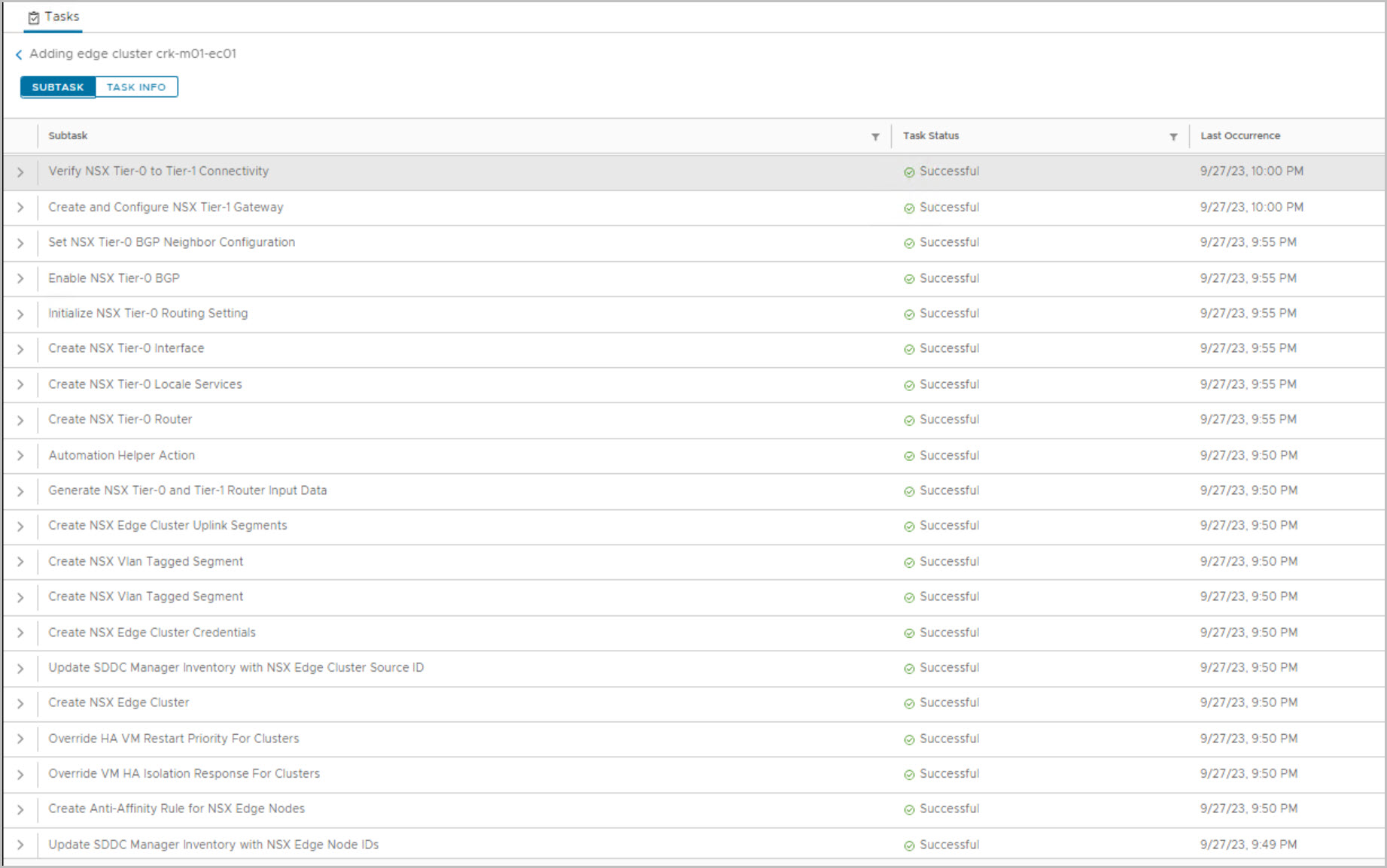

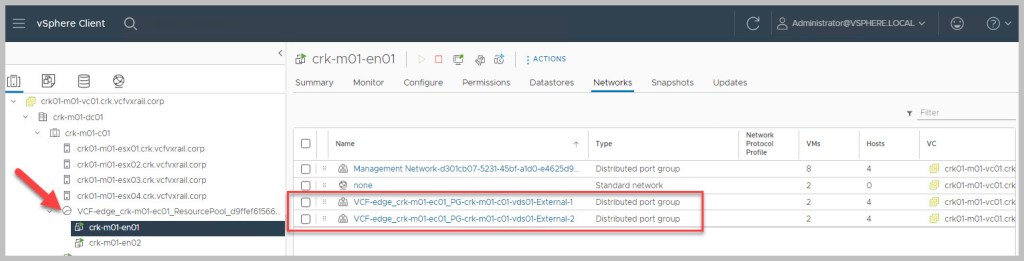

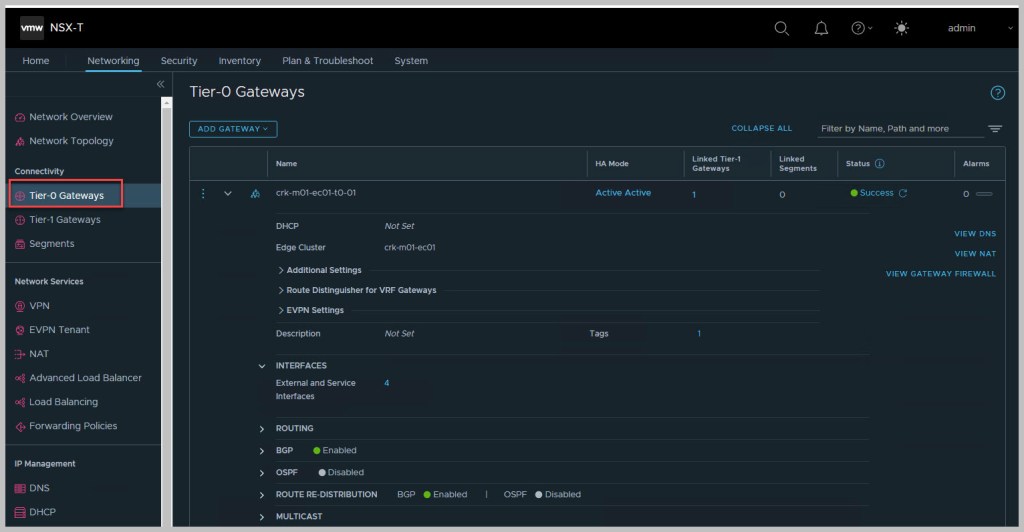

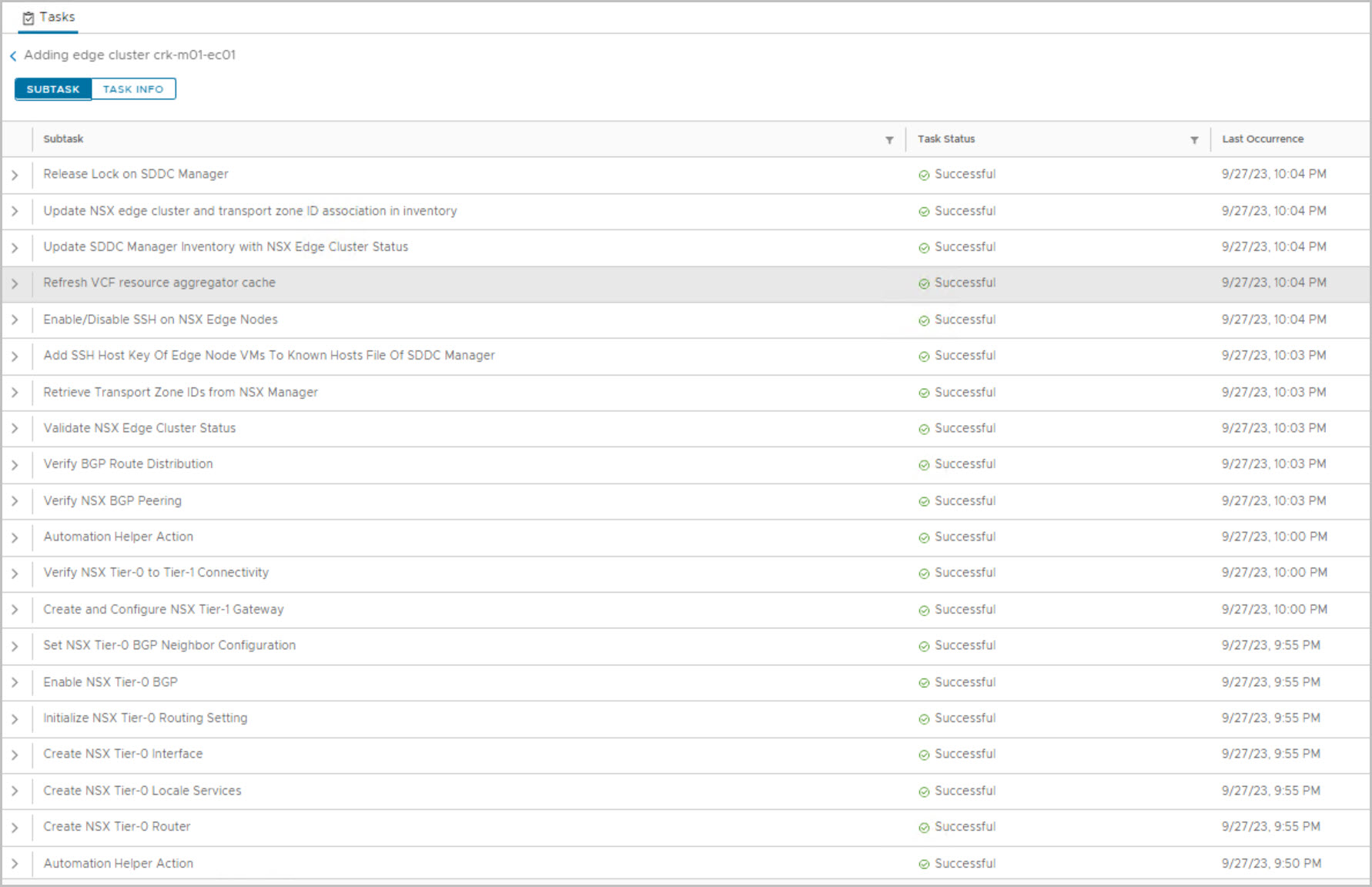

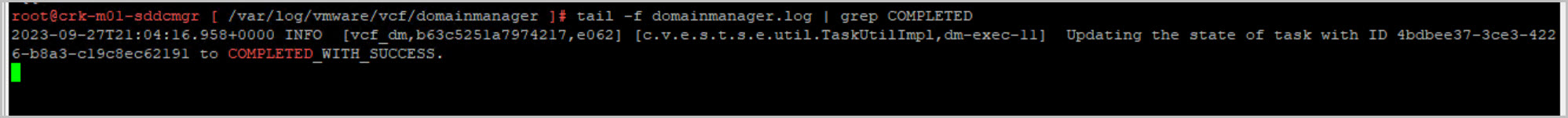

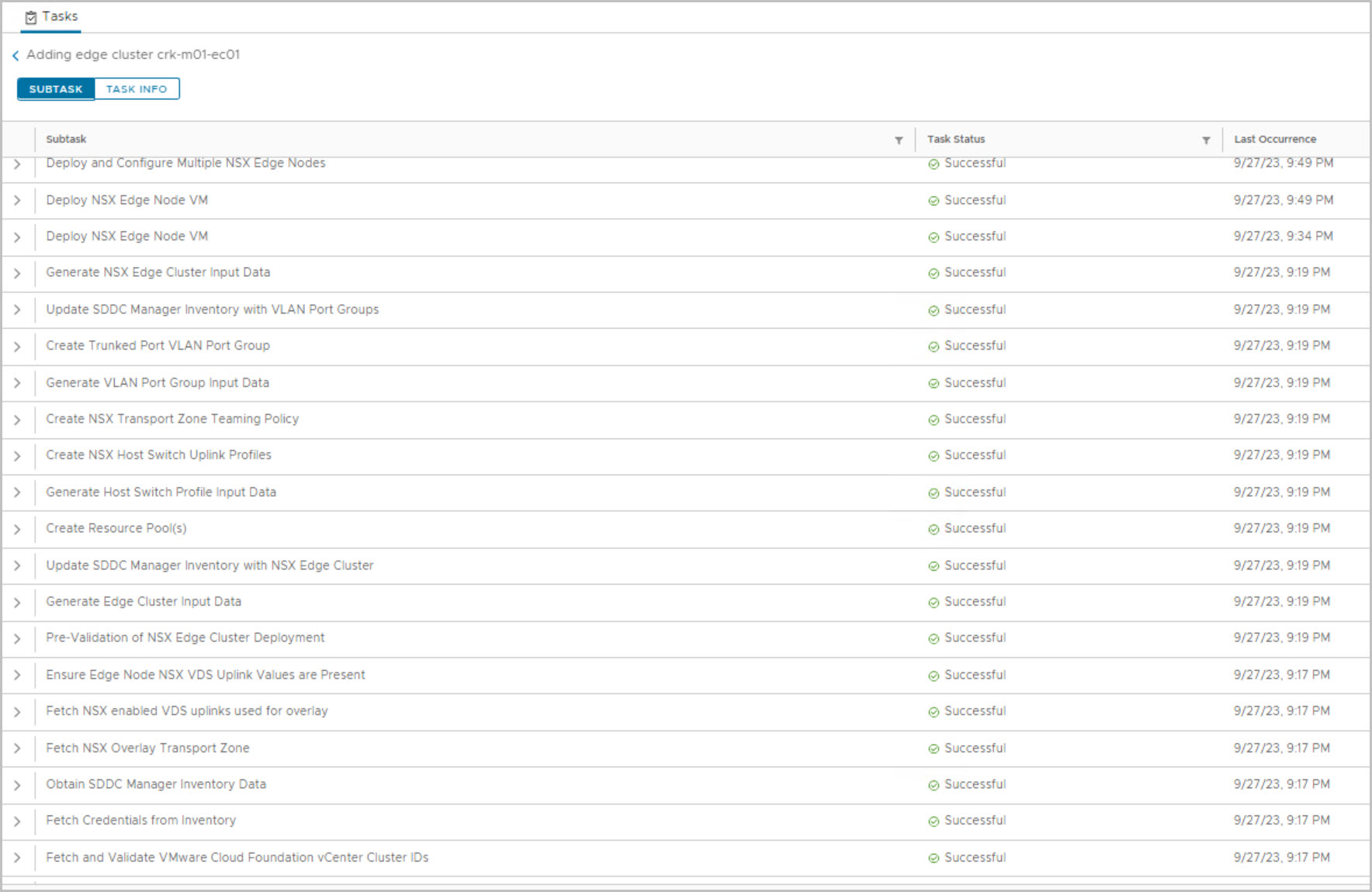

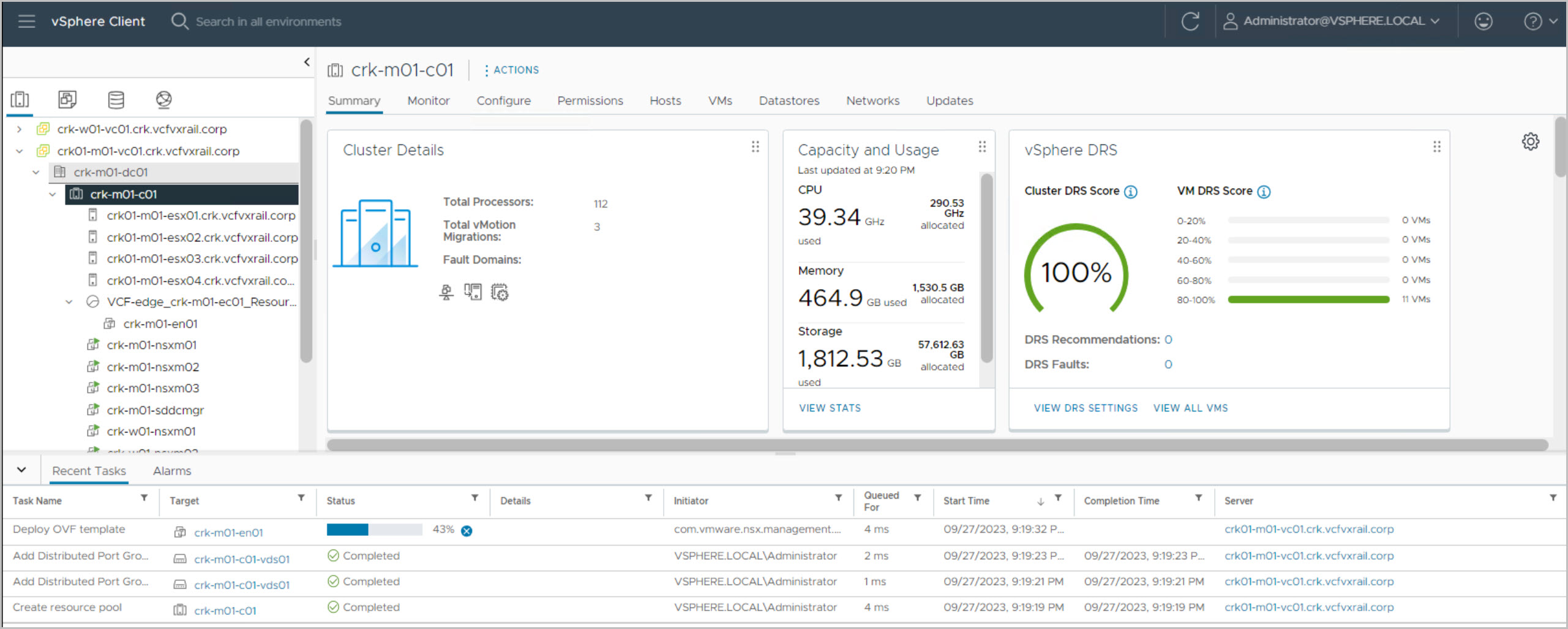

On completion we can view the newly deployed and configured NSX Edge Cluster from vCenter & NSX UI & Dell Switch CLI.

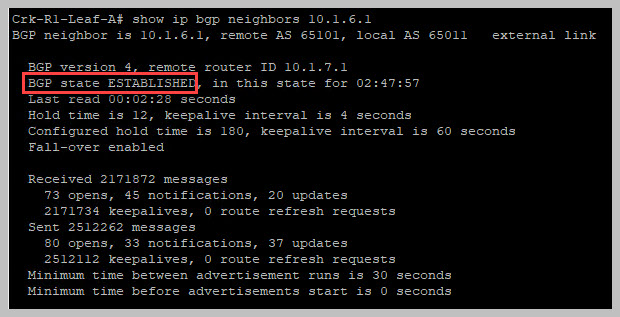

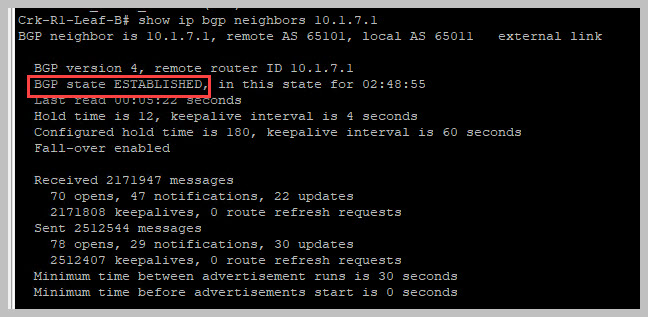

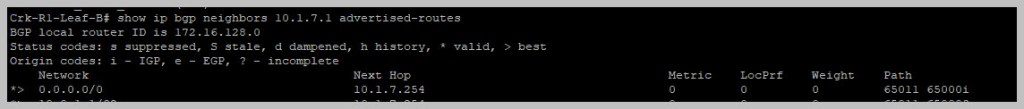

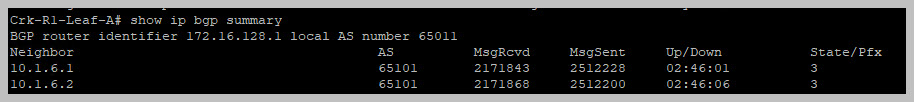

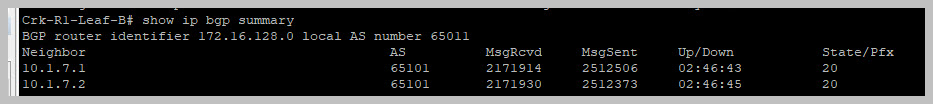

Useful switch cli examples:
AVNs FOR MGMT DEPLOYMENT STEPS

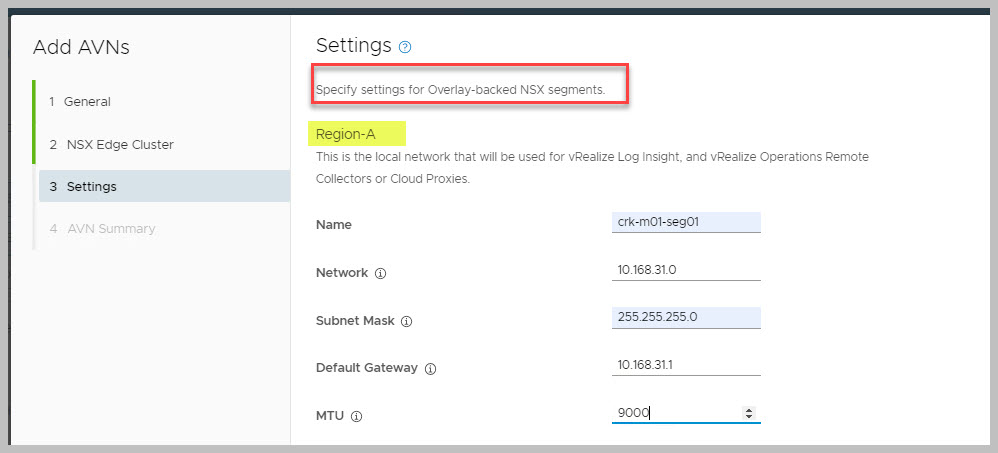

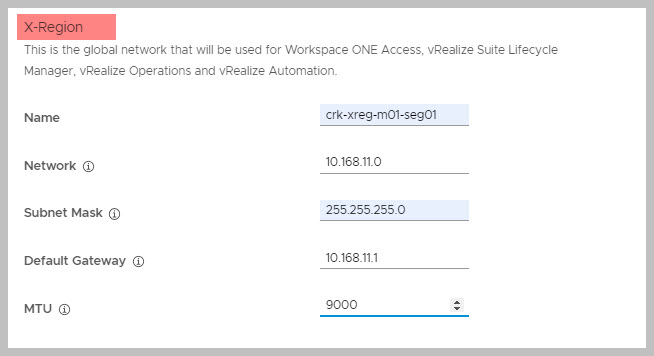

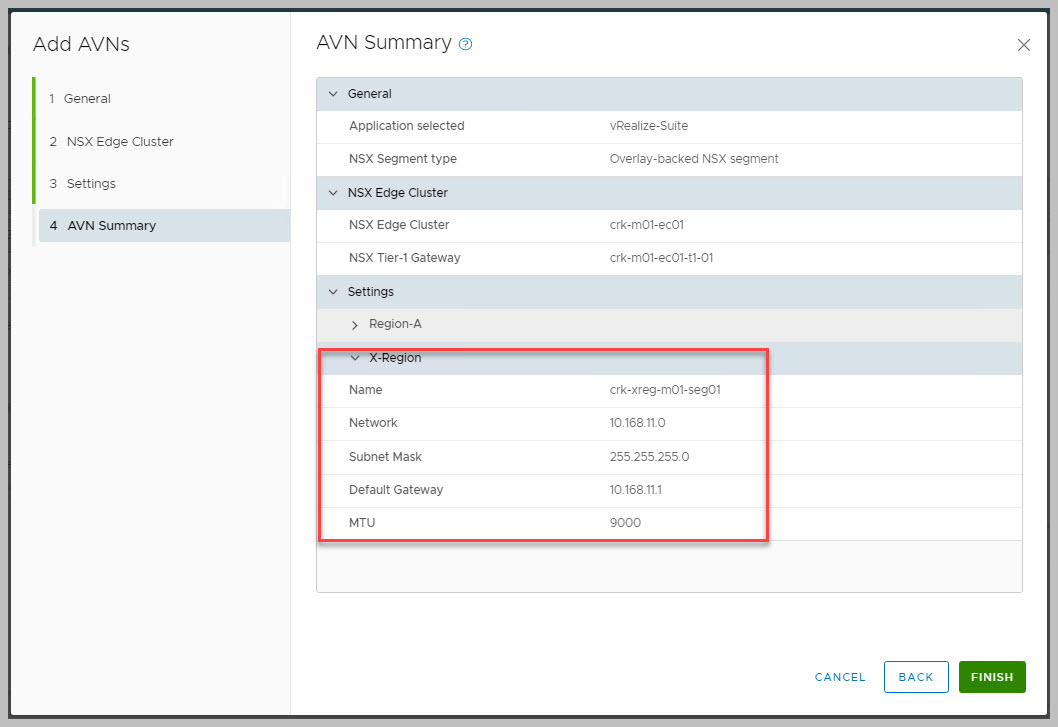

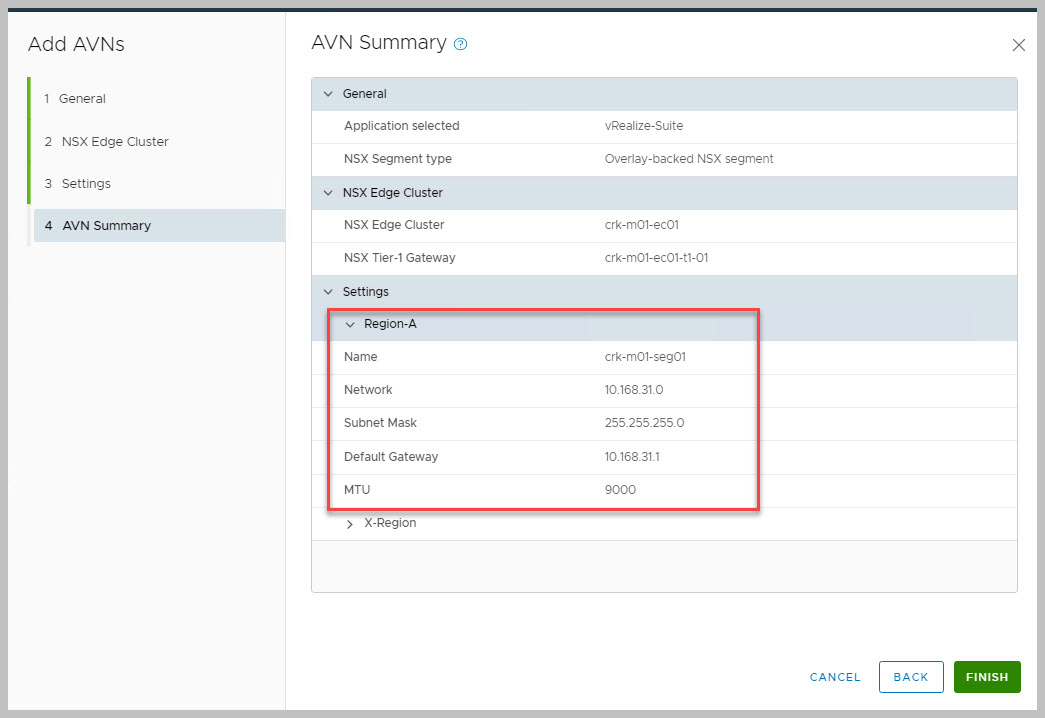

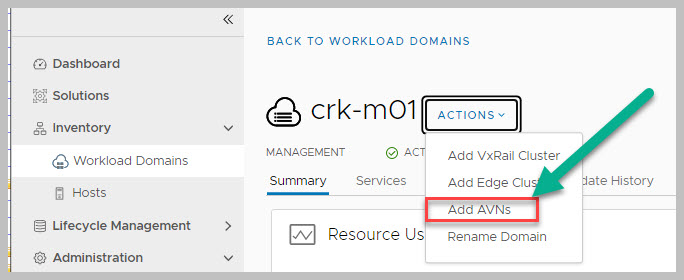

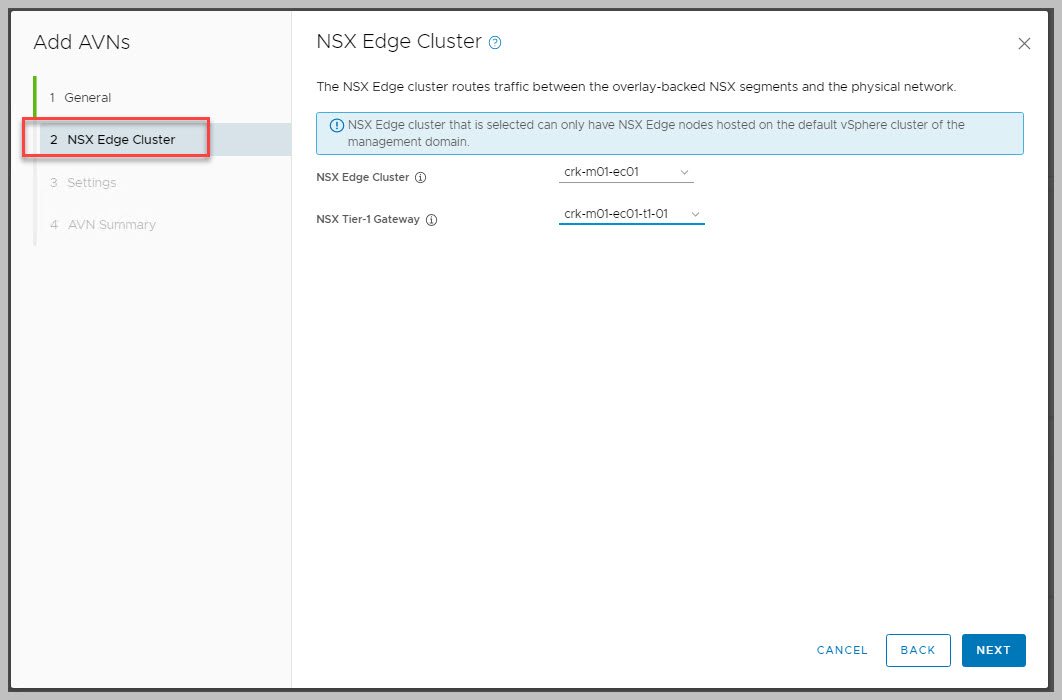

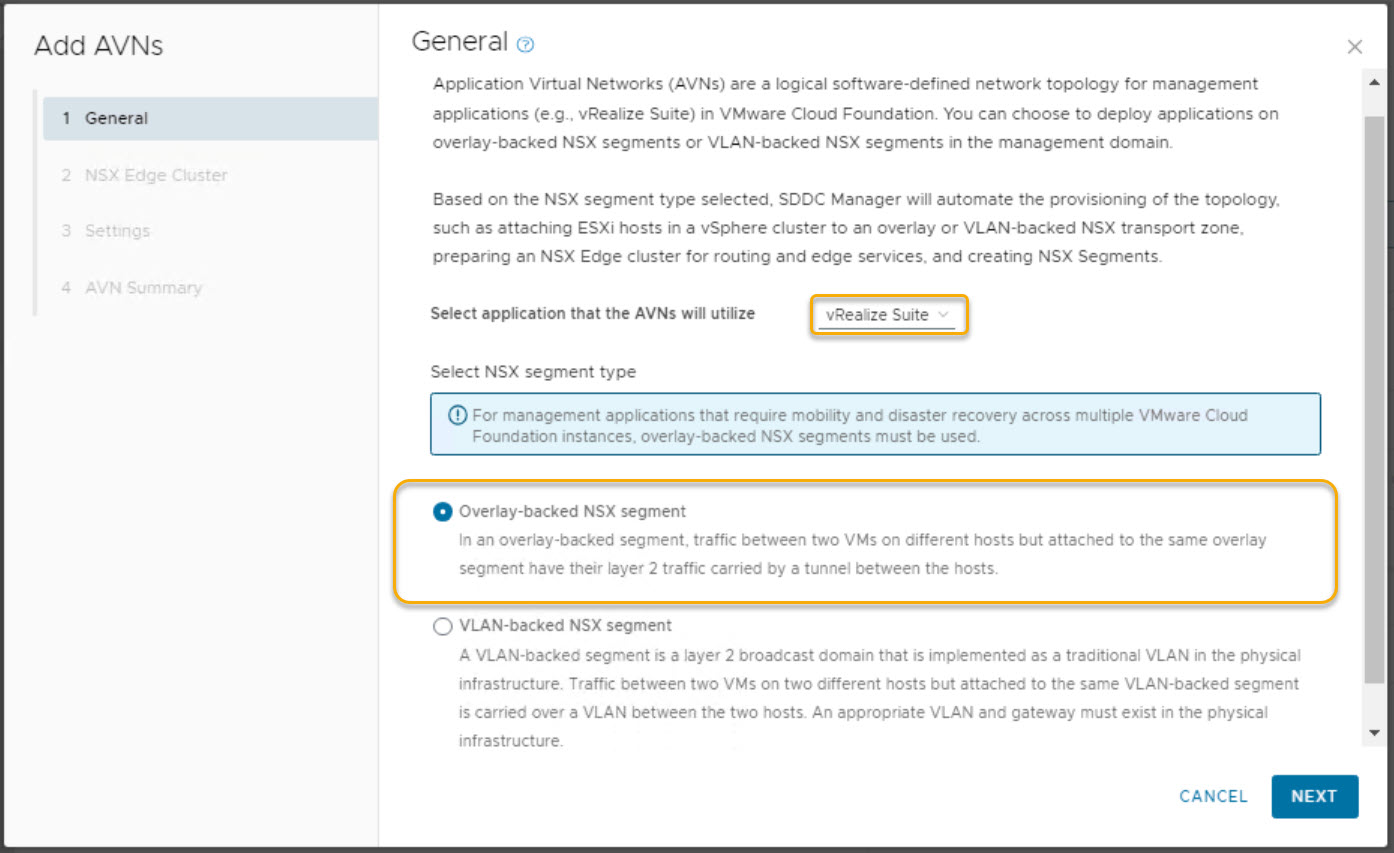

Go to SDDC Manager UI Select Inventory > Workload Domains. Click on the name of the Management domain Select Actions > Add AVNs:

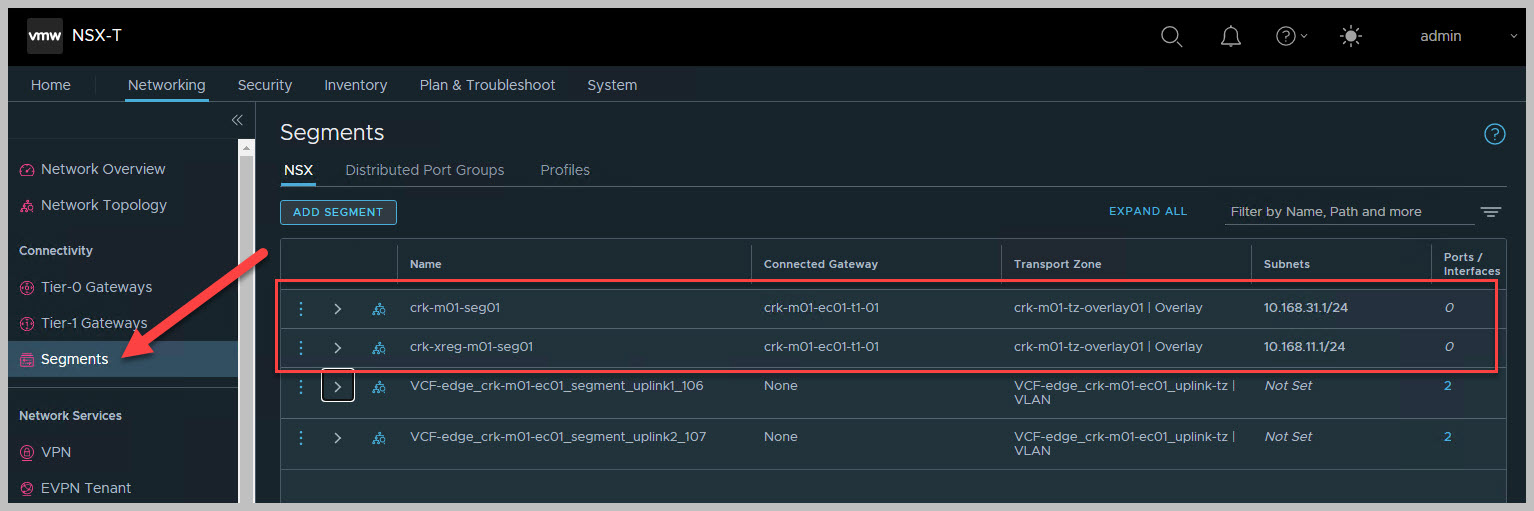

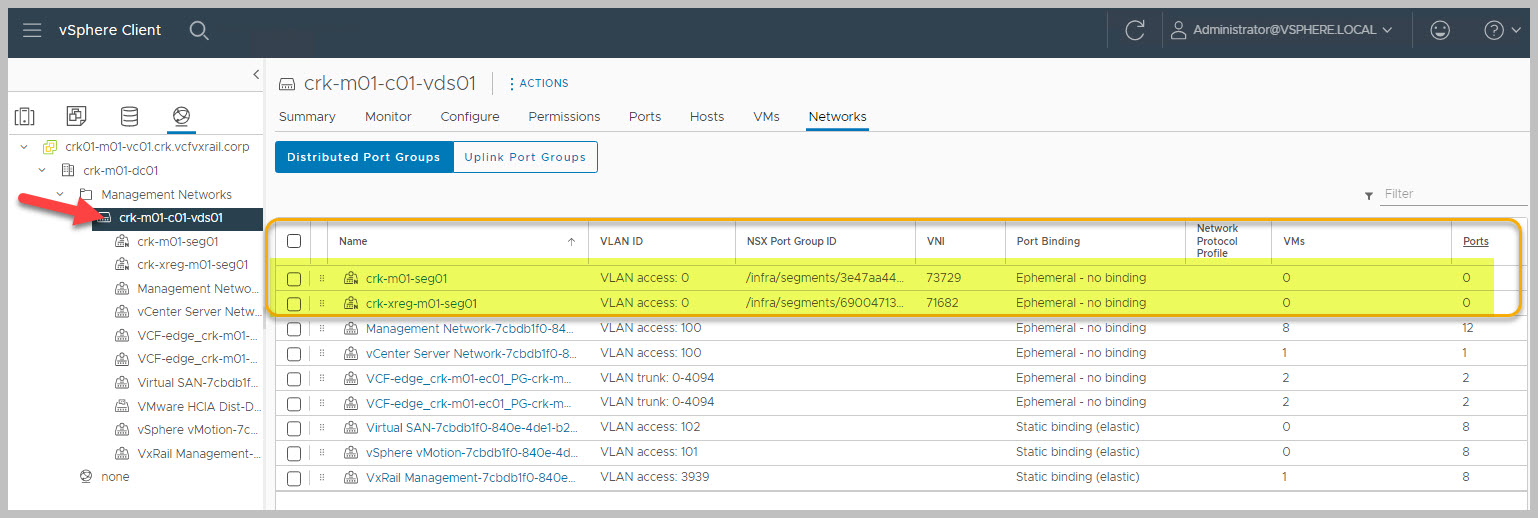

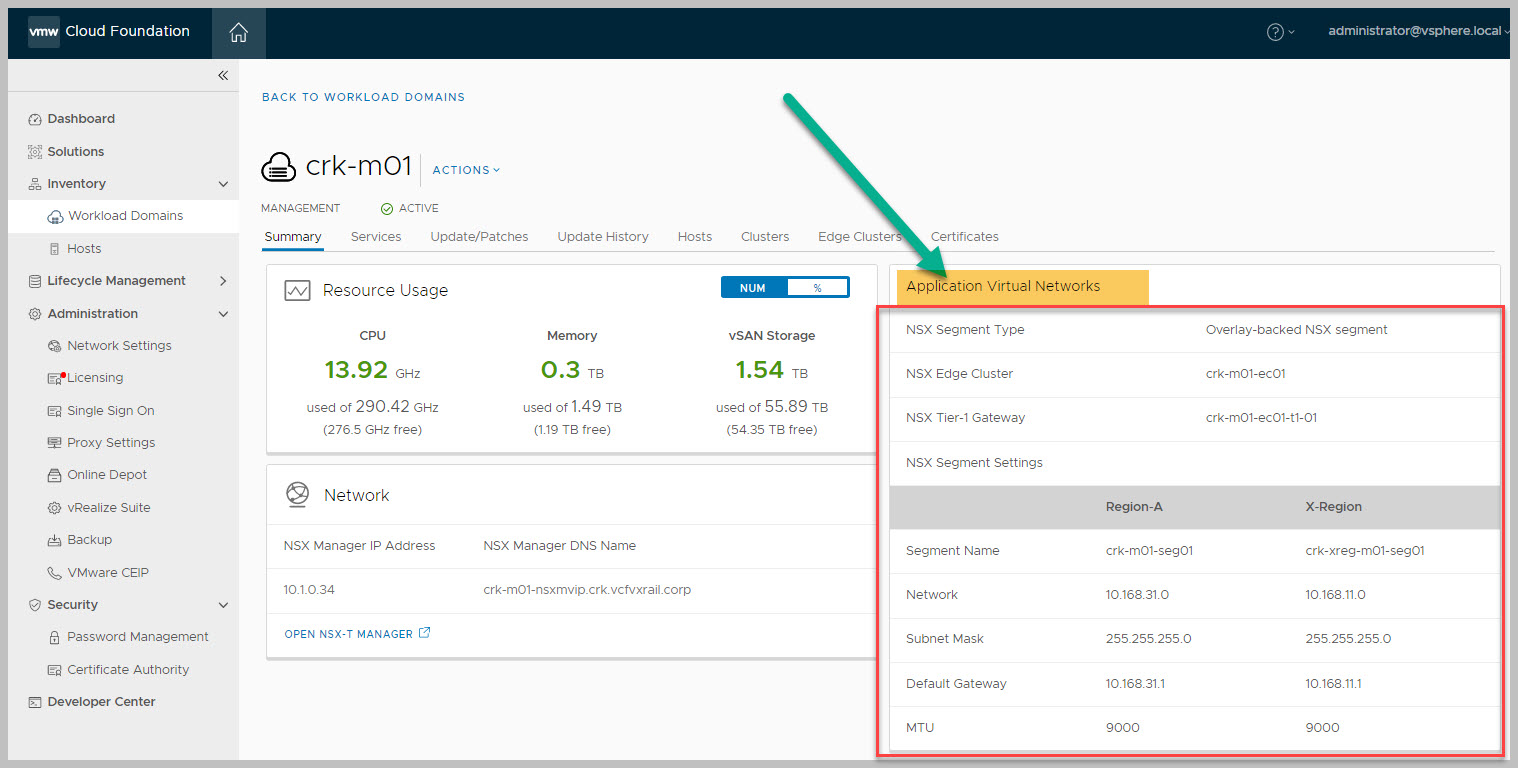

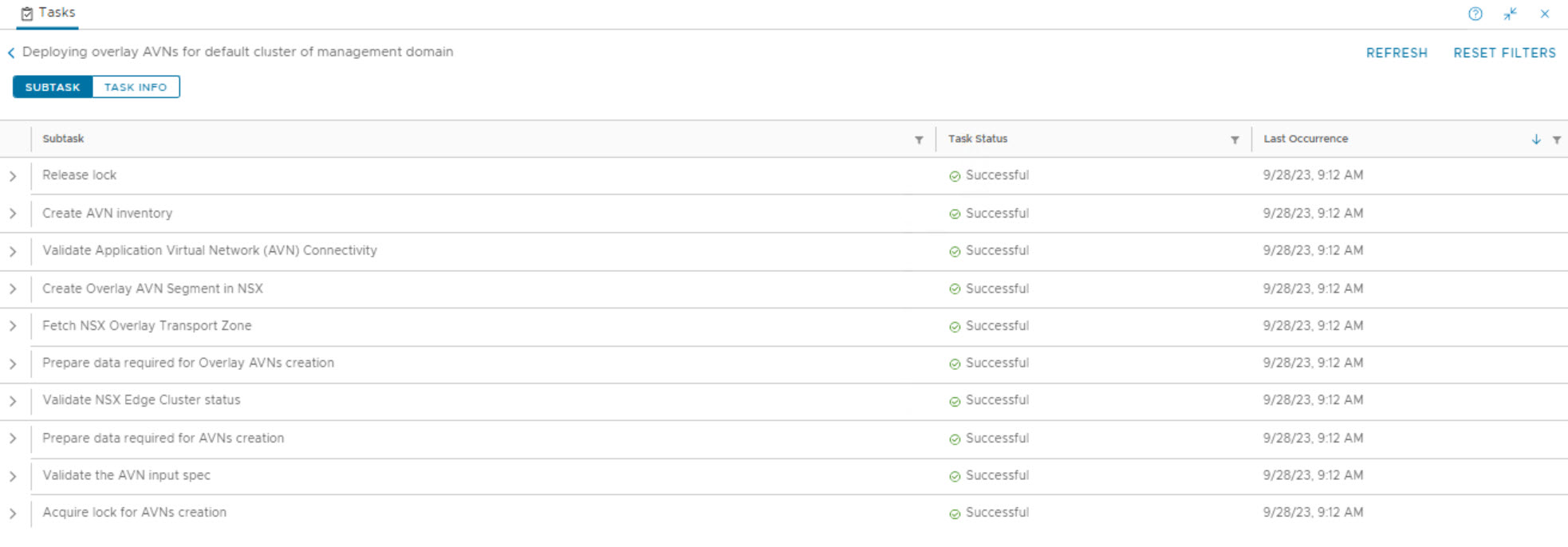

On completion we can view the newly deployed and configured AVNs from both the vCenter & SDDC Manager UI:

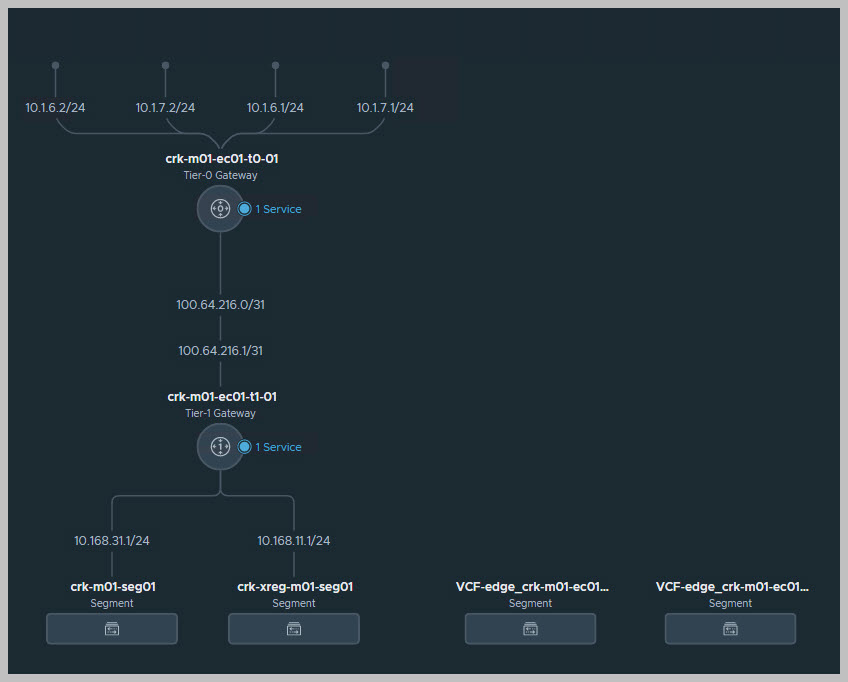

NSX-T Edge Network Topology

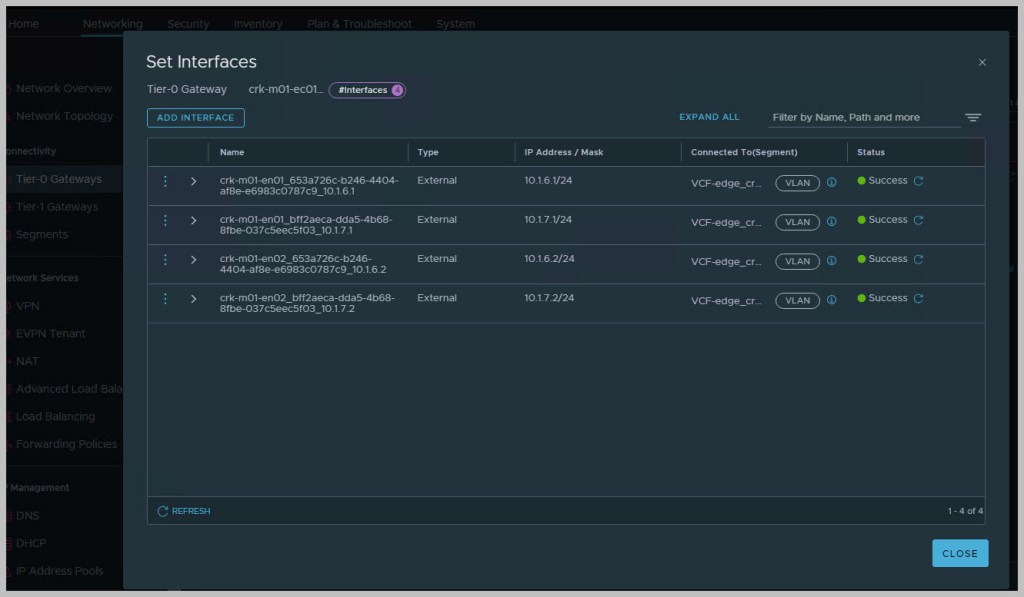

The following depicts the architectural view from within NSX Manager for the Edge solution. The Tier-0 gateway provides routing to the external network while the Tier-1 connected to Tier-0 provides the N/S comms for the internal network:

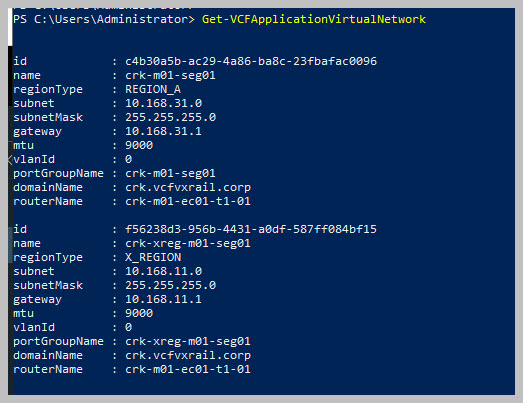

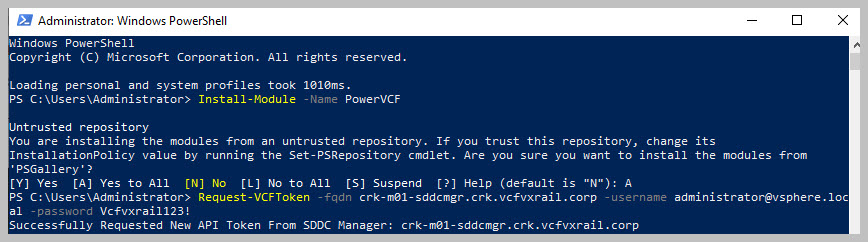

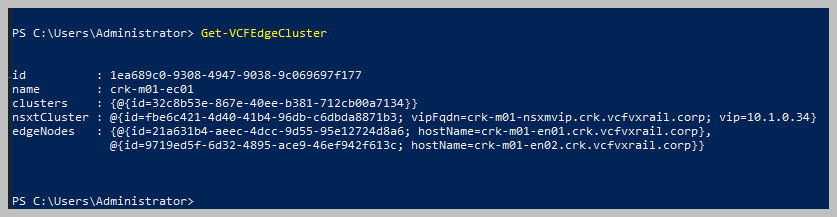

Using PowerVCF to retrieve the configuration details:
In Part 4 I will walkthrough the deployment of vRealize Lifecycle Manager (VRSLCM).
Note: this is an example for reference only please use the VxRail installation procedures provided by Dell EMC.
Thanks for reading!
