VxRail – Identify NIC Type & Status

2 ways to identify which type of NIC cards are installed on your VxRail and check their connection status.

1 – ESXi Shell

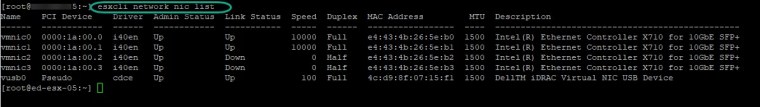

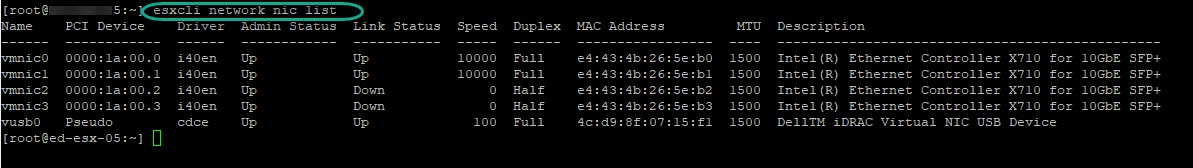

esxcli network nic list

vxrail nic type2

If you wish to gather additional info via esxcli:

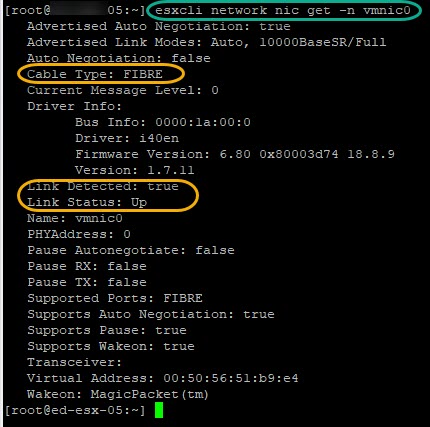

esxcli network nic get -n vmnic#

vxrail nic type3



2 – iDRAC

iDRAC ->  System -> Overview -> Network Devices

This slideshow requires JavaScript.



In this example the NIC Type is an Intel X710 10Gb QP. It is always worth refencing the intel support matrix in terms of supported SFP’s, for this particular NIC X710 here is the matrix (thanks @JeremyMerrill for the pointer):

https://www.intel.com/content/www/us/en/support/articles/000007045/network-and-i-o/ethernet-products.html
