vCenter Server & PSC Appliances 6.x – Applying Patches (Shell/UI)

The following applies to a vCenter Server Appliance that contains a vCenter Server with an embedded Platform Services Controller, a vCenter Server with an external Platform Services Controller, or a Platform Services Controller.

Note: Please perform during a maintenance window as vCSA services will be unavailable.

Appliance Shell

The following steps detail how to apply a vCSA patch directly from an ISO which can be downloaded from:

https://my.vmware.com/group/vmware/patch#search

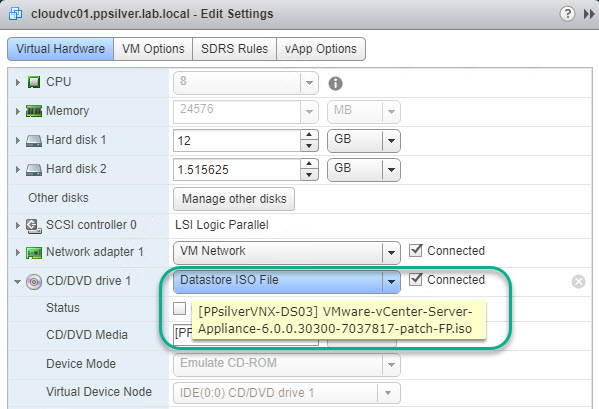

Attach the ISO to the vCSA.

VCSA_Patch1

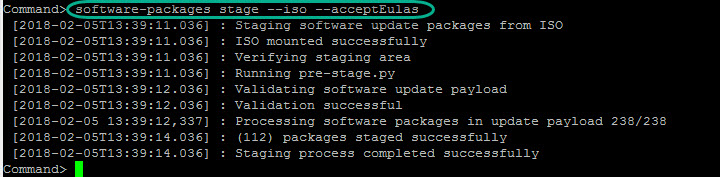

Connect to the vCSA Shell and issue the command to stage the patch leveraging the acceptEulas option:

software-packages stage --iso --acceptEulas

VCSA_Patch2

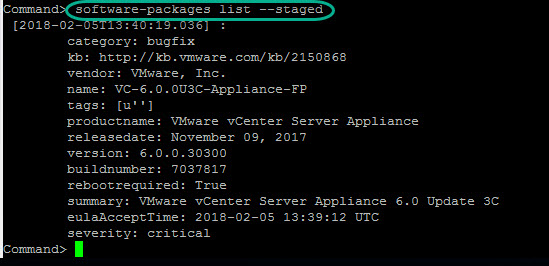

To review the contents of the update:

software-packages list --staged
software-packages list --staged --verbose

VCSA_Patch3

Install the staged patch:

software-packages install --staged

VCSA_Patch4

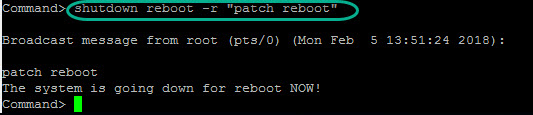

If a reboot is required:

shutdown reboot -r “patch reboot”

VCSA_Patch5

Other related cmds:

software-packages list --history

software-packages unstage



Appliance Mgmt Interface

The following steps detail how to apply a vCSA patch directly from the mgmt interface.

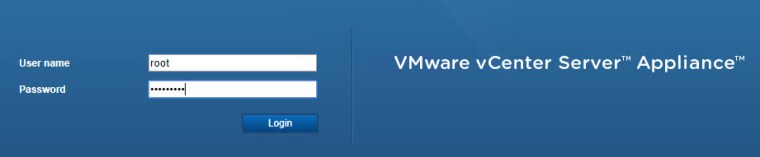

Begin by logging into the mgmt interface using root:

https://vcsa.domain.local:5480

VCSA_Patch6

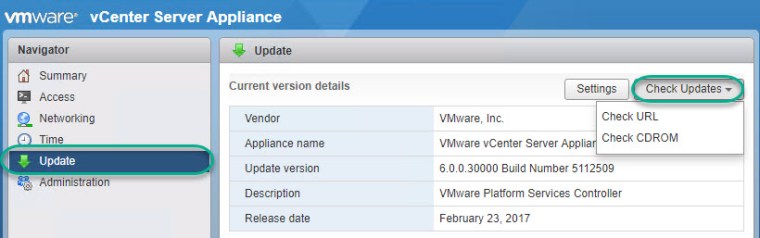

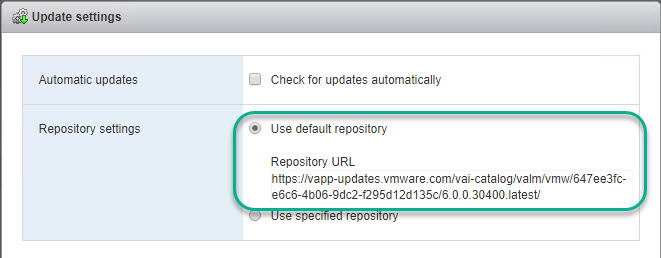

Navigate to ‘Update’ and click on ‘Check Updates’. In this example I selected ‘Check URL’ which defaults to the VMware repository URL (you may create a custom repository URL on a local web server). If you have downloaded and attached the ISO then you may leverage the ‘check CDROM’ option.

VCSA_Patch7

VCSA_Patch7a

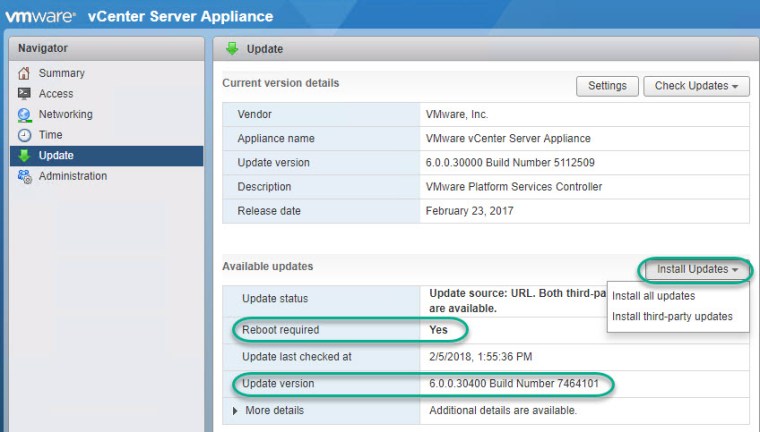

Once the updates have been discovered click on ‘Install Updates’:

VCSA_Patch8

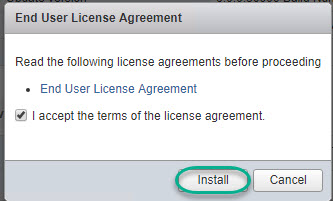

Accept the End User License Agreement and click ‘Install’:

VCSA_Patch9

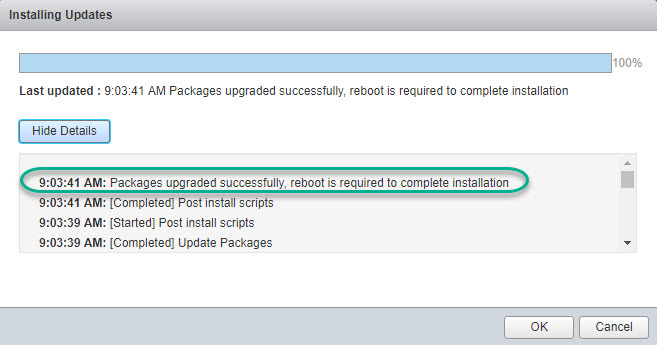

Patches successfully applied (patch installation requires the appliance to reboot):

VCSA_Patch10

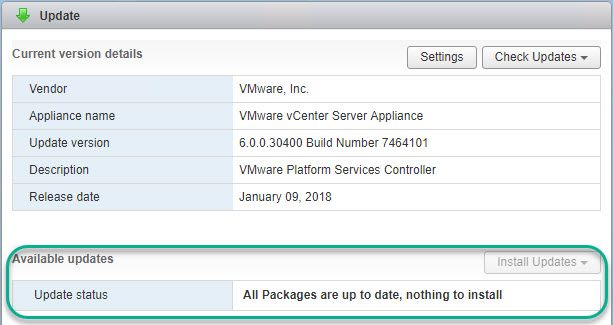

From the Available updates pane you can see the appliance is up to date:

VCSA_Patch11

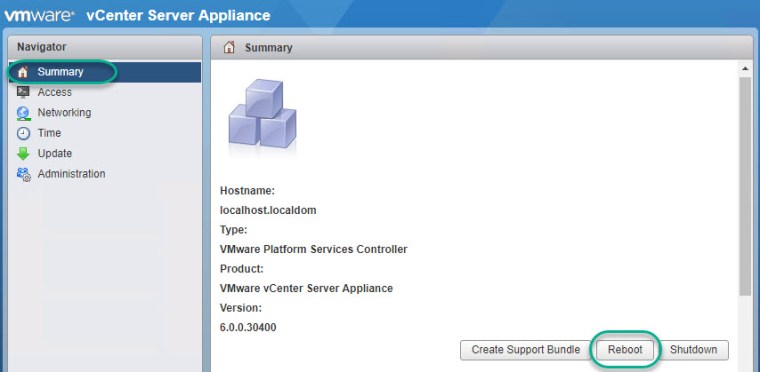

Navigate to ‘Summary’ and click on ‘Reboot’:VCSA_Patch12

Reference:

Patching the vCenter Server Appliance and Platform Services Controller Appliance
