vRealize Orchestrator – Configure Connection to vCenter Server Instance

The following steps detail how to configure the vCenter plugin by running the ‘Add a vCenter Server instance’ workflow from the Orchestrator client in order to create the connection between vRO->vCenter.

Note: this example aligns with EHC.

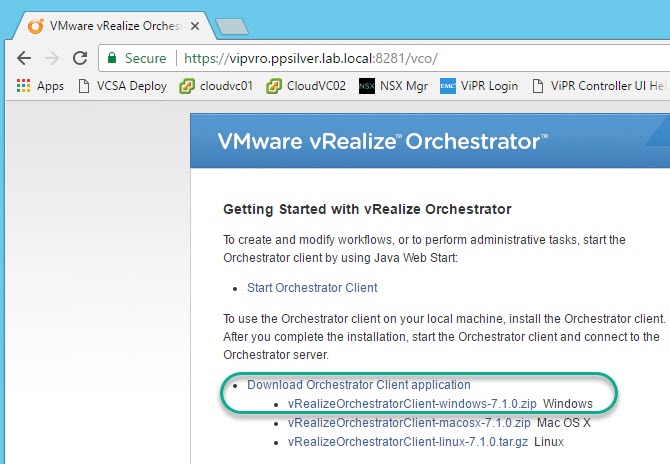

  1. Download the vRO Client.vROConfigurevCenterInstance0

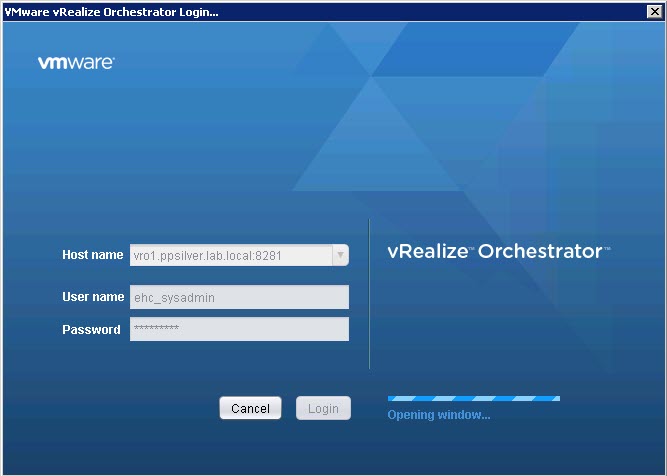

  2. Login to vRO with admin privileges.vROConfigurevCenterInstance0a

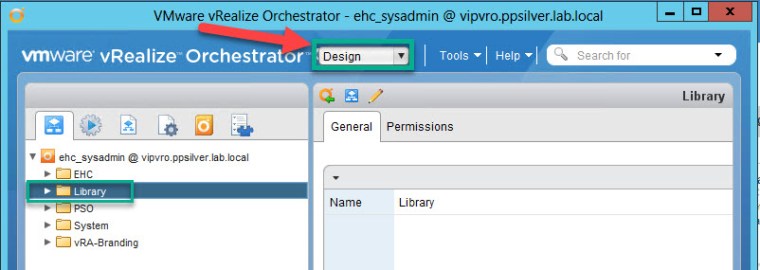

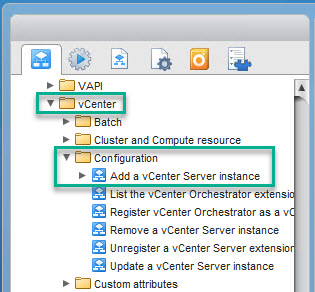

  3. Flip from Run->Design, click on the workflows view, expand Library->vCenter->Configuration->Add a vCenter Server instance.vROConfigurevCenterInstance1vROConfigurevCenterInstance2

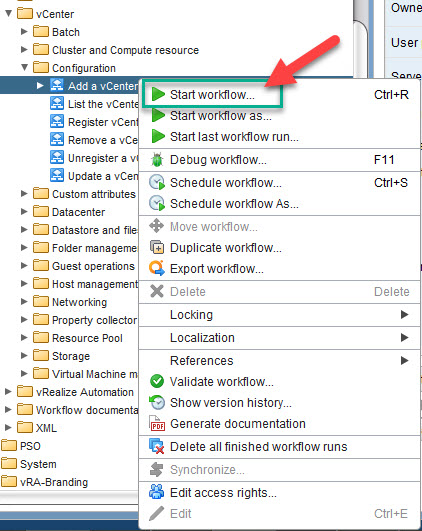

  4. Right click and chose ‘Start workflow’.vROConfigurevCenterInstance3

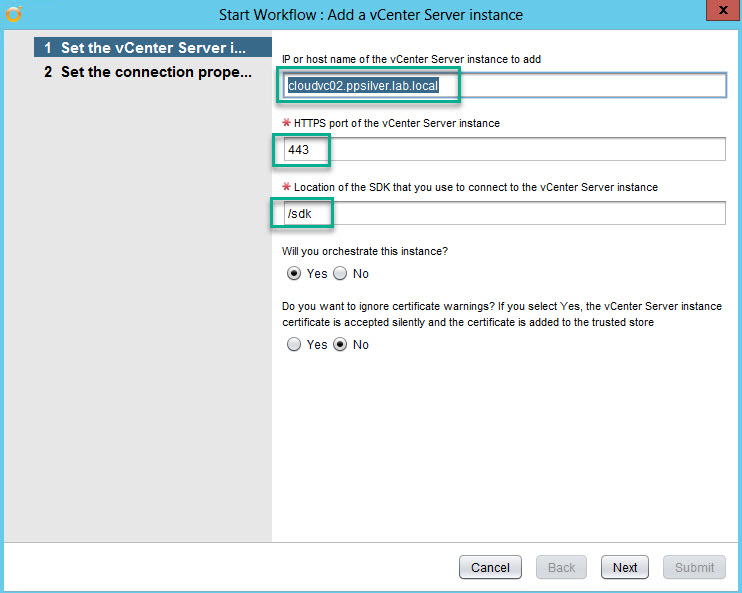

  5. Enter vCenter FQDN details and leave defaults for HTTPS & SDK. ‘Yes’ to managing vCenter through vRO and ‘No’ to ignoring cert warnings.vROConfigurevCenterInstance4

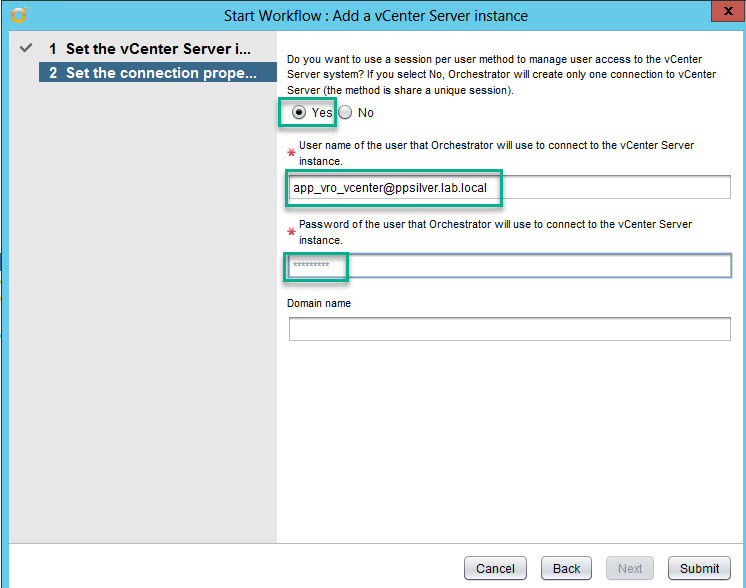

  6. Chose ‘Yes’ which implies a ‘vCenter Session per user’, in this example vCenter SSO is enabled, enter the user with privileges to connect to vCenter and click ‘submit’.vROConfigurevCenterInstance5

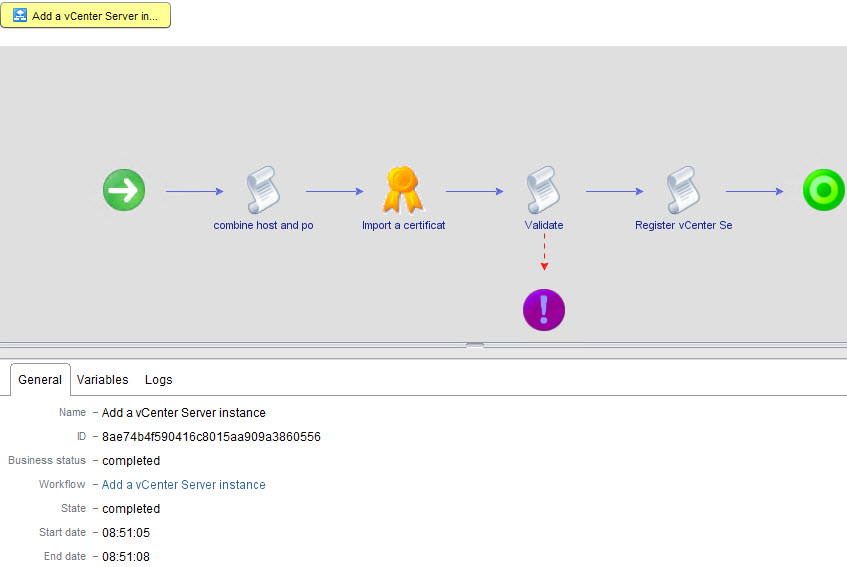

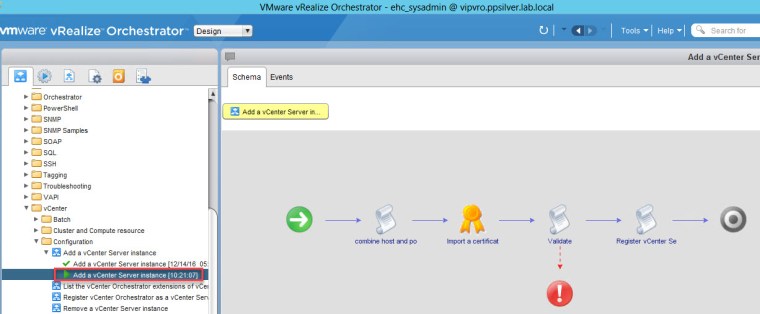

  7. Workflow being executed.vROConfigurevCenterInstance6vROConfigurevCenterInstance7

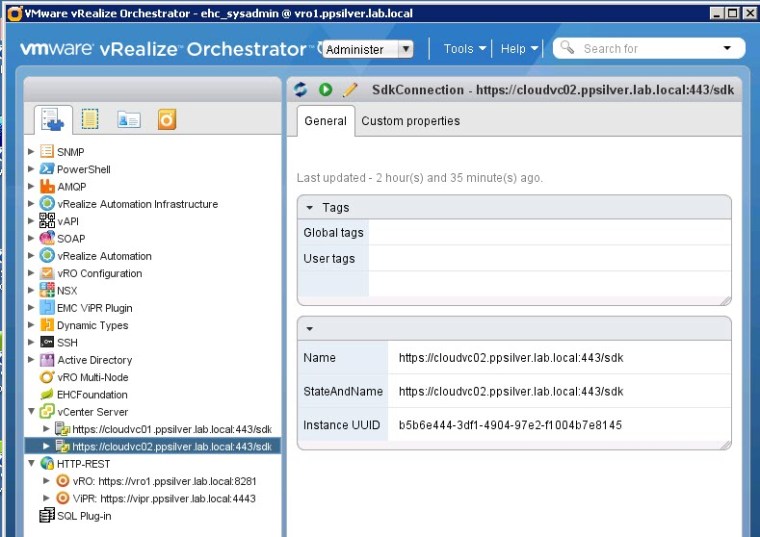

  8. Flip to ‘Administer’ and view the new vCenter instance from the inventory.vROConfigurevCenterInstance8



VMware Reference

VMware vRO 7.1 Doc Center
