EMC ViPR Controller: Storage-Related Ports

The following list and diagram details the respective storage-related TCP ports that ViPR uses to communicate with a particular EMC Storage product. If  a firewall is present between the ViPR Controller and the associated Storage system then it may require a specific ruleset to allow the required communication between the ViPR controller and the array.

  • VMAX Block (via SMI-S) – 5989
  • VMAX File – 443
  • VNX Block (via SMI-S) – 5989
  • VNX File – 443
  • VPLEX MGMT Controller – 443
  • RecoverPoint – 7225
  • Isilon – 8080
  • ScaleIO – 22
  • XtremIO XMS – 443

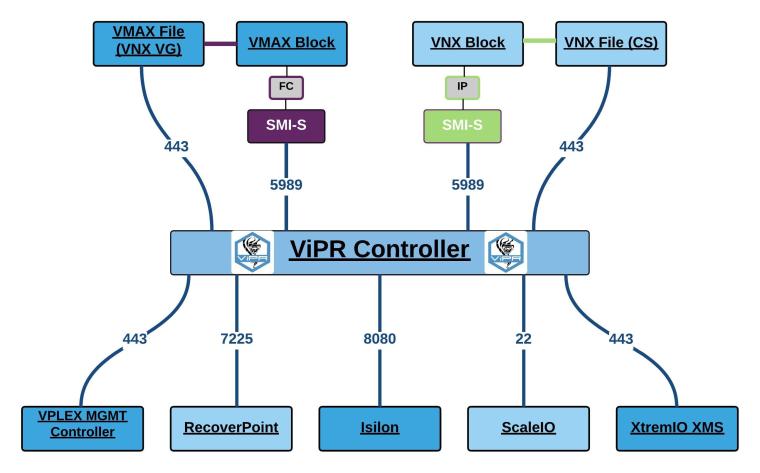

ViPR - Storage Connectivity Ports



Reference:  EMC® ViPR® Controller Version 2.4 Security Configuration Guide
