EMC VNXe Configuration Using Unisphere CLI (Part 3)

Part 1
Part 2

This is the third part in the series on configuring the VNXe via command line. Here I will detail the Steps involved in adding VMware ESXi hosts, presenting NFS datastores to these hosts and setting access rights.

  • Add VMware ESXi Hosts
  • Add VNXe NFS Volumes to VMware ESXi Hosts
  • Setting Access Rights

Note: VMWare networking and Nexus port channels must be configured at this stage. See below for example NEXUS VPC configs.

Add VMware ESXi Hosts
Using the ESXi mgmt address to add two ESXi hosts as follows:
uemcli -d 10.0.0.1 -u Local/admin -p Password123# /virt/vmw/esx create -addr 192.168.105.10 -username root -passwd Password

uemcli -d 10.0.0.1 -u Local/admin -p Password123# /virt/vmw/esx create -addr 192.168.105.11 -username root -passwd Password

Expected Output:
ID = 1005
ID = 1007

Operation completed with partial success.
The create, refresh, or set operation has started. It will continue to add or update ESX host information in the background.

It takes approximately ~2 minutes to add each host after receiving the output above. View details of ESXi hosts connected:
uemcli -d 10.0.0.1 -u Local/admin -p Password123# /remote/host show
uemcli -d 10.0.0.1 -u Local/admin -p Password123# /virt/vmw/esx show

Output:
ESXi01 ID = 1005
Name = ESXi01
Address = 192.168.106.10,192.168.105.10,192.168.102.101
OS type = esx

ESXi02 ID = 1007
Name = ESXi02
Address = 192.168.106.11,192.168.105.11,192.168.102.102
OS type = esx

Three IP addresses are returned, in this case there is one IP address each for Mgmt, VMotion and NFS traffic. We are only concerned with applying access permissions at the NFS level. In this example the NFS addresses are 192.168.102.101&102.

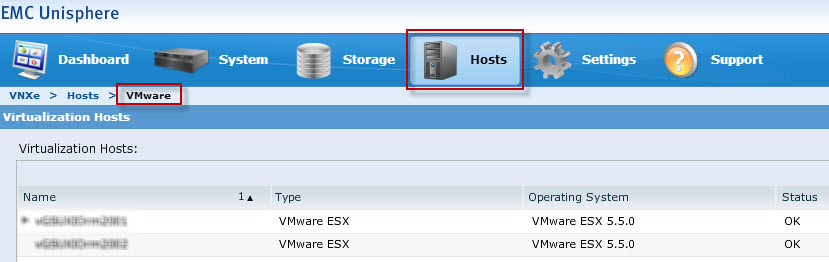

Checking in the GUI we can confirm the hosts were added successfully:
VNXe_ESXi1

Add VNXe NFS Volumes to VMware ESXi Hosts & Set Access
We firstly need to gather the Network File System (NFS) ID’s:
uemcli -d 10.0.0.1 -u Local/admin -p Password123# /stor/prov/vmware/nfs show
Output:
NFS_1: ID = app_1
Name = AMP-NFS-01

NFS_2: ID = app_2
Name = AMP-NFS-02

Add NFS Volumes APP_1&2 to hosts using the VNXe ID of the hosts (1005,1007) and assign root access to only the NFS Vmkernel address of the ESXi hosts:

  • ESXi01[1005] vmKernel NFS Port Group IP 192.168.102.101
  • ESXi02[1007] vmKernel NFS Port Group IP 192.168.102.102
  • uemcli -d 10.0.0.1 -u Local/admin -p Password123# /stor/prov/vmware/nfs -id app_1 set -defAccess na -rootHosts 1005[192.168.102.101],1007[192.168.102.102]
    uemcli -d 10.0.0.1 -u Local/admin -p Password123# /stor/prov/vmware/nfs -id app_2 set -defAccess na -rootHosts 1005[192.168.102.101],1007[192.168.102.102]

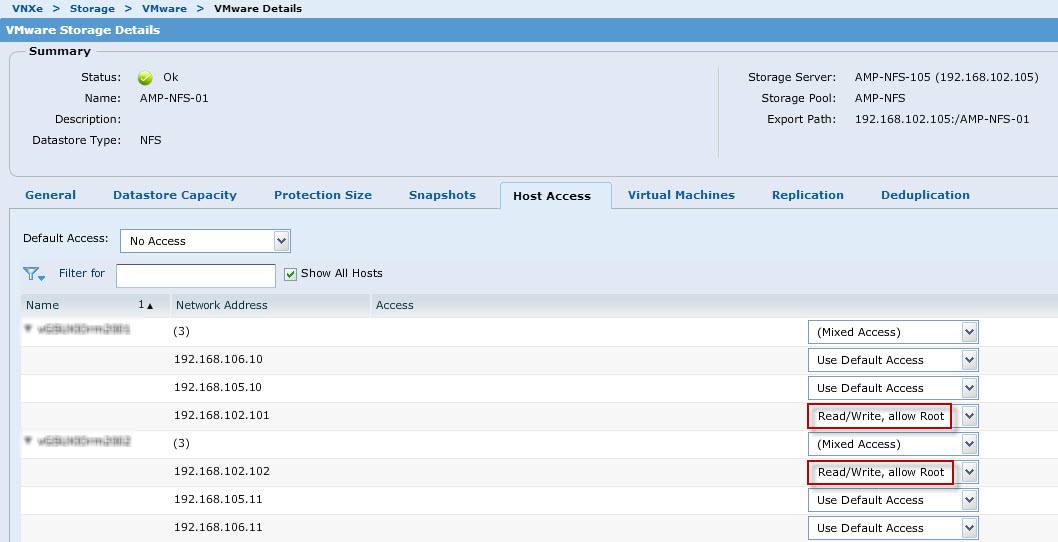

    Display the ESXi hosts connected to the VNXe NFS volumes and their respective access rights:
    uemcli -d 10.0.0.1 -u Local/admin -p Password123# /stor/prov/vmware/nfs show -detail
    Output:
    NFS_1: ID = app_1
    Name = AMP-NFS-01
    Server = file_server_0
    Storage pool = AMP-NFS
    Size = 2199023255552 (2.0T)
    Root hosts = 1005[192.168.102.101], 1007[192.168.102.102]

    NFS_2: ID = app_2
    Name = AMP-NFS-02
    Server = file_server_0
    Storage pool = AMP-NFS
    Size = 2199023255552 (2.0T)
    Root hosts = 1005[192.168.102.101], 1007[192.168.102.102]

    VNXe_ESXi2

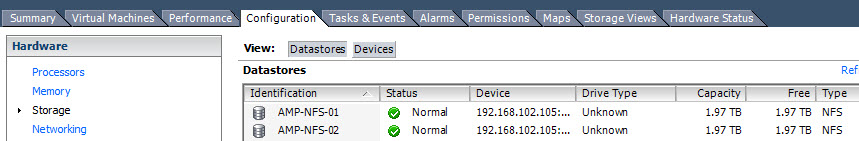

    VNXe_ESXi3

    Example Cisco Nexus VPC Configs with VNXe 10Gig Interfaces

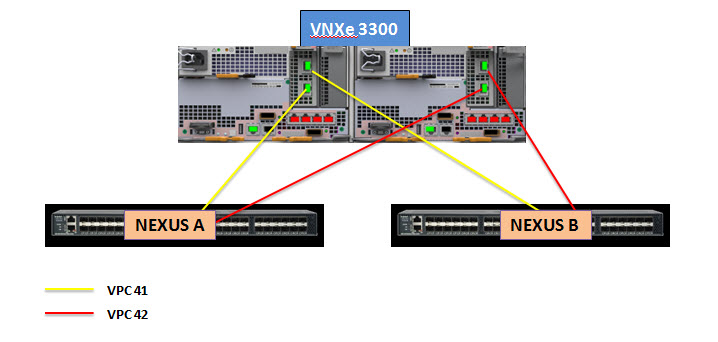

    VPC_VNXe
    NEXUS SWITCH ‘A’ VPC CONFIG :
    interface Ethernet1/25
    description VNXe3300-SPA-Port1-10Gbe
    switchport mode trunk
    switchport trunk allowed vlan 102
    spanning-tree port type edge trunk
    flowcontrol receive on
    channel-group 41 mode active

    interface Ethernet1/26
    description VNXe3300-SPB-Port1-10Gbe
    switchport mode trunk
    switchport trunk allowed vlan 102
    spanning-tree port type edge trunk
    flowcontrol receive on
    channel-group 42 mode active

    interface port-channel41
    description Port_Channel_To VNXe_SPA-10Gbe-Ports
    switchport mode trunk
    switchport trunk allowed vlan 102
    spanning-tree port type edge trunk
    flowcontrol receive on
    no negotiate auto
    vpc 41

    interface port-channel42
    description Port_Channel_To VNXe_SPB_10Gbe-Ports
    switchport mode trunk
    switchport trunk allowed vlan 102
    spanning-tree port type edge trunk
    flowcontrol receive on
    no negotiate auto
    vpc 42

    NEXUS SWITCH ‘B’ VPC CONFIG:
    interface Ethernet1/25
    description VNXe3300-SPA-Port2-10Gbe
    switchport mode trunk
    switchport trunk allowed vlan 102
    spanning-tree port type edge trunk
    flowcontrol receive on
    channel-group 41 mode active

    interface Ethernet1/26
    description VNXe3300-SPB-Port2-10Gbe
    switchport mode trunk
    switchport trunk allowed vlan 102
    spanning-tree port type edge trunk
    flowcontrol receive on
    channel-group 42 mode active

    interface port-channel41
    description Port_Channel_To VNXe_SPA_10Gbe-Ports
    switchport mode trunk
    switchport trunk allowed vlan 102
    spanning-tree port type edge trunk
    flowcontrol receive on
    no negotiate auto
    vpc 41

    interface port-channel42
    description Port_Channel_To VNXe_SPB_10Gbe-Ports
    switchport mode trunk
    switchport trunk allowed vlan 102
    spanning-tree port type edge trunk
    flowcontrol receive on
    vpc 42

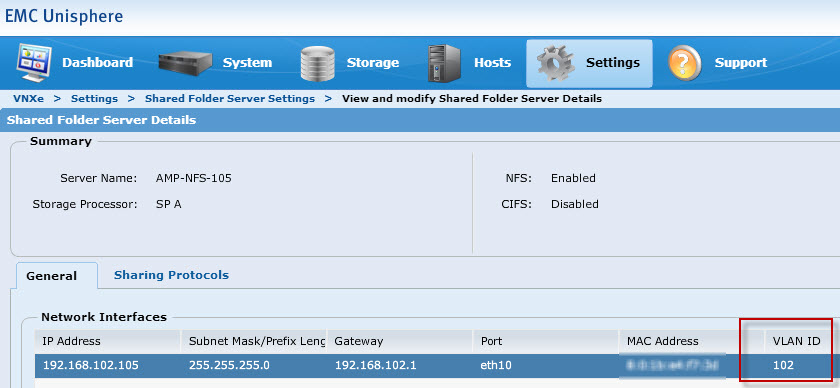

    Note the VNXe NFS interface ‘if_0’ must have the corresponding VLAN id configured:
    uemcli -d 10.0.0.1 -u Local/admin -p Password123# /net/if -id if_0 set -vlanId 102
    uemcli -d 10.0.0.1 -u Local/admin -p Password#123 /net/if show

    Output:
    ID = if_0
    Port = eth10_SPA
    VLAN ID = 102
    VNXe_ESXi6
