EMC VNX – LUN MIGRATION
This post is a result of having to migrate Cisco UCS Blade boot LUNs between Raid Groups. Both the source and destination were Classic LUNs – RAID Group LUN (FLARE […]
This post is a result of having to migrate Cisco UCS Blade boot LUNs between Raid Groups. Both the source and destination were Classic LUNs – RAID Group LUN (FLARE LUN/FLU). The migration occurred across two DAE’s, with each DAE populated with one Raid Group. This is the ideal scenario for best migration performance – having the load spread across different RG’s and also spread across backend ports. The Rates have an incremental effect on the Storage Processor utilization. We used the ASAP migration rate which was acceptable as the system was not in production and would not therefore impact performance of other workloads. Also note that two ASAP migrations can be performed simultaneously per Storage Processor.
For migration of a LUN within a VNX array the following rates can be used in the calculation:
Priority Rate (MB/s)
Low 1.4 MB/s
Medium 13 MB/s
High 44 MB/s
ASAP 85 MB/s
Calculation for the Migration of a LUN is as follows:
Time = (Source LUN Capacity * (1/Migration Rate)) + ((Destination LUN Capacity – Source LUN Capacity) * (1/Initialization Rate))
Calculation for the migration of a 20Gig BOOT LUN between Raid Groups at ASAP SPEED (85MB/s):
Source LUN = 20000MB
Destination LUN = 20000MB
Migration Rate is 85MB/s = 306000 MB/Hour
Initialization Rate = 306000 MB/Hour
(20000 * (1hour / 306000)) + ((20000 – 20000) * (1hour / 306000))
= .0653 hrs
= 3.9 Minutes Per BOOT LUN
The following command can be used if CLI is your preferred option:
naviseccli migrate -start -source 15 -dest 16 -rate asap
Where the source LUN ID is 15 and the destination is 16 with priority ASAP

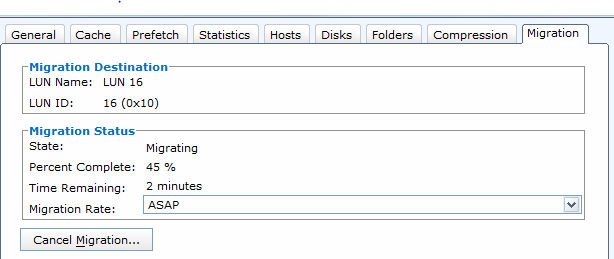

Check Percentage Complete:
naviseccli -h x.x.x.x migrate -list -source 15 -percentcomplete
Check Time Remaining:
naviseccli -h x.x.x.x migrate -list -source 15 -timeremaining
Note: The LUN Migration feature can also be used to migrate to a larger LUN size, thus increasing capacity of the source LUN. The whole process can be completed online and non-disruptively (transparent to VMware ESXi hosts) and does not require any post configuration. Once the migration completes then the original source LUN is deleted off the array and the new LUN takes the source LUN WWN and LUN ID.
