Part 1: Walk-thru upgrade of a VCF MGMT Workload Domain

In the 2nd part of this series I will provide an example walk-thru upgrade of a VCF VI Workload Domain:

VCF 4.0.1.0 (VxRail 7.0.000) -> 4.0.1.1 upgrade (VxRail 7.0.010)

This upgrade consists of a 3x BUNDLE upgrade process executed in the following sequence:

1. VMware Software Upgrade contains VMware vCenter Server 7.0.0a update (7.0.0.10300-16189094 5GB)
2. VMware Software Upgrade contains VMware vCenter Server 7.0.0c update (7.0.0.10600-16620007 5GB)
3. VXRAIL UPGRADE BUNDLE VERSION 7.0.010-26590399  9GB

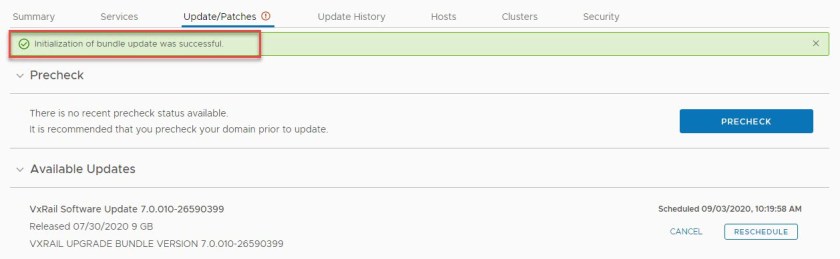

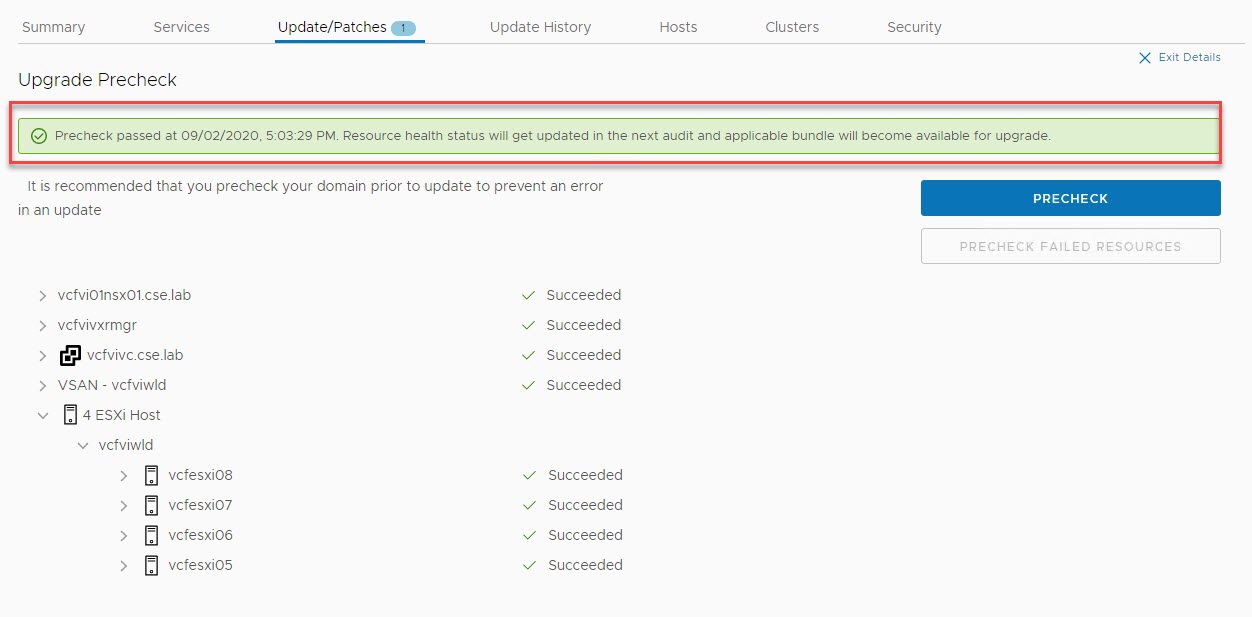

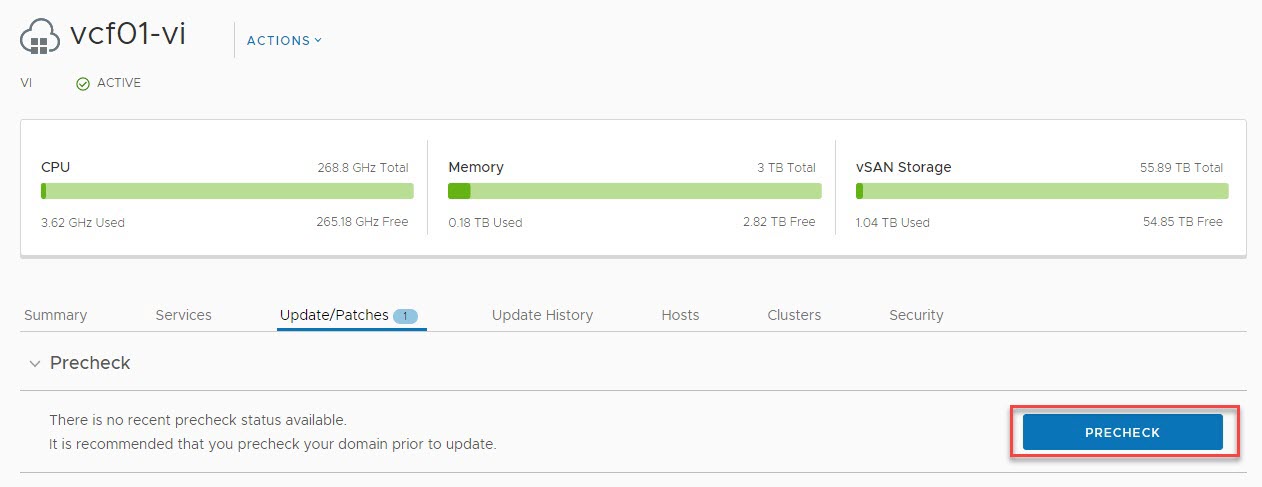

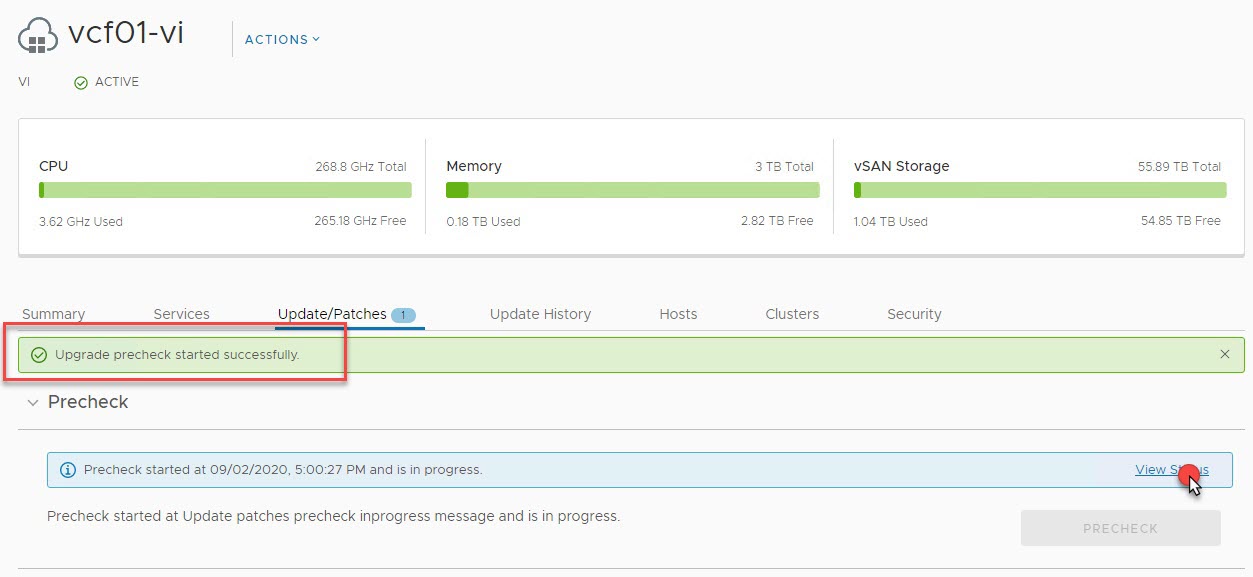

Again, ensure to run the upgrade Precheck task from within SDDC Manager in order to validate VCF is in a healthy state before proceeding with each of the upgrades and view the health status of each component by expanding their respective results. If the precheck has failed, fix the issue and then retry the precheck task to repeat the validation process.

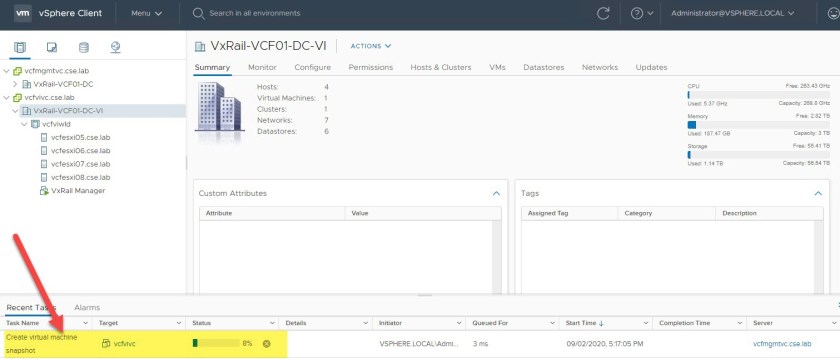

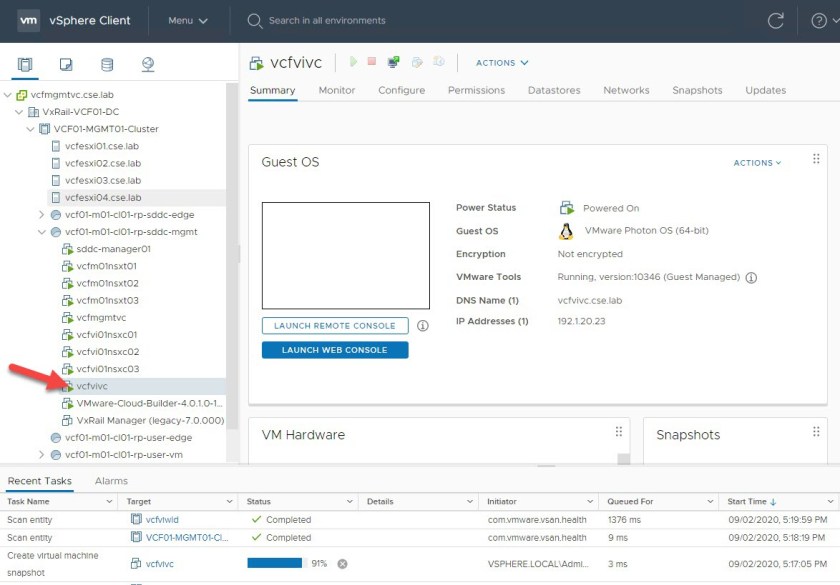

Important: Before proceeding with the upgrade ensure to take snapshots of your management virtual machines. Do not perform any SDDC workflows such as VI WLD creation or WLD expansions during the upgrade and confirm no failed workflows or errors are displayed in SDDC manager.

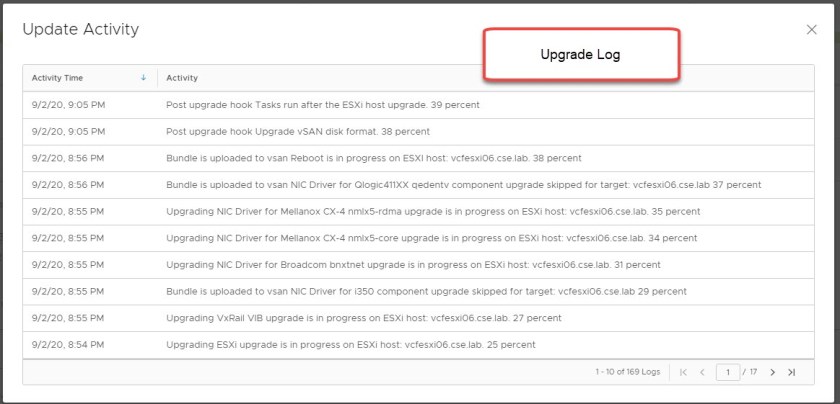

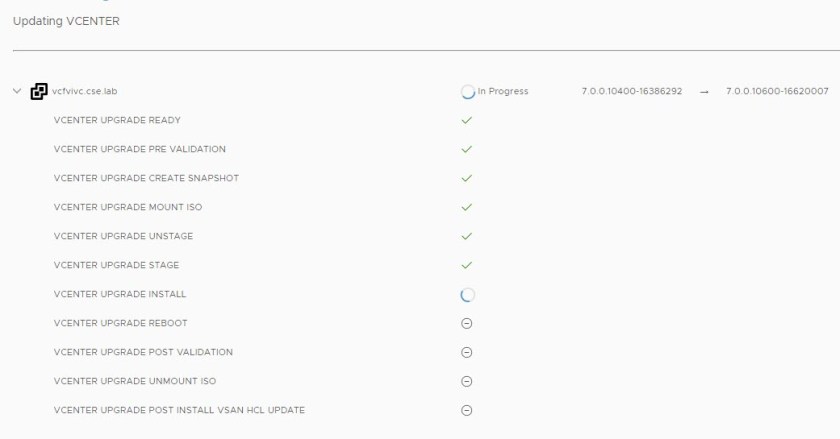

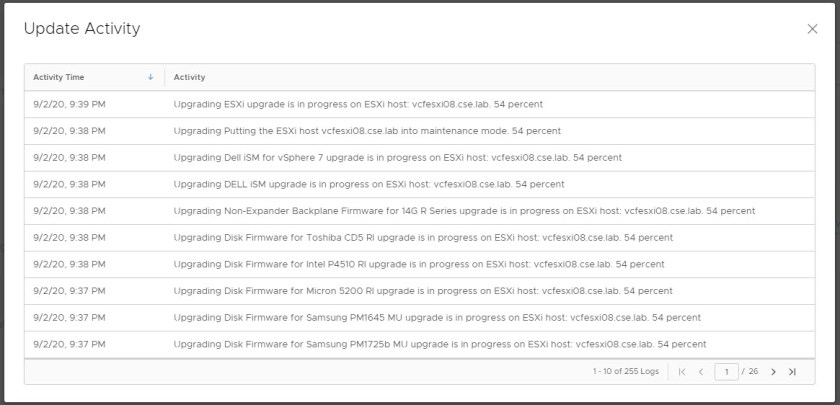

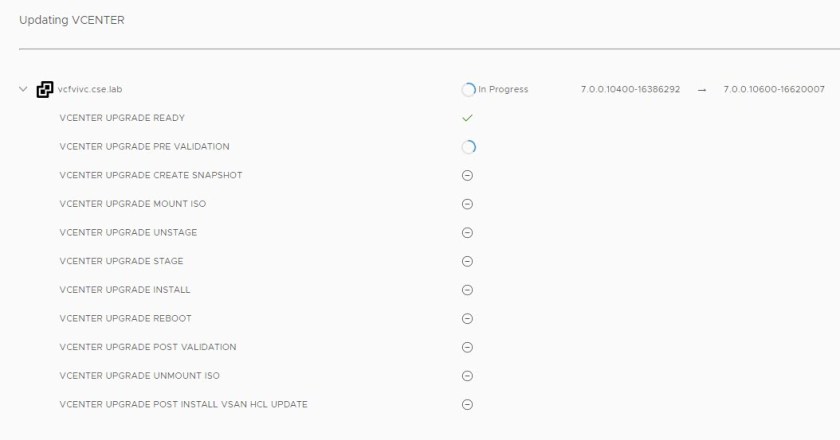

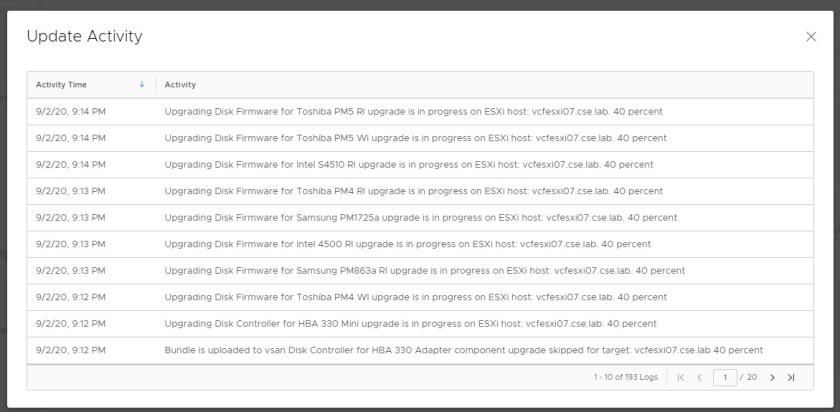

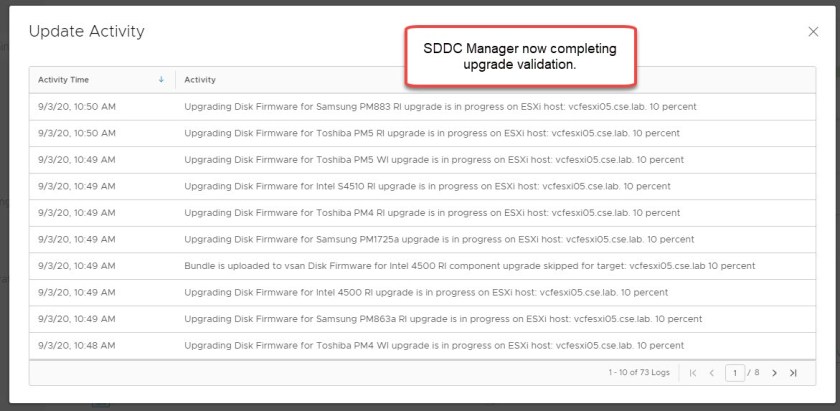

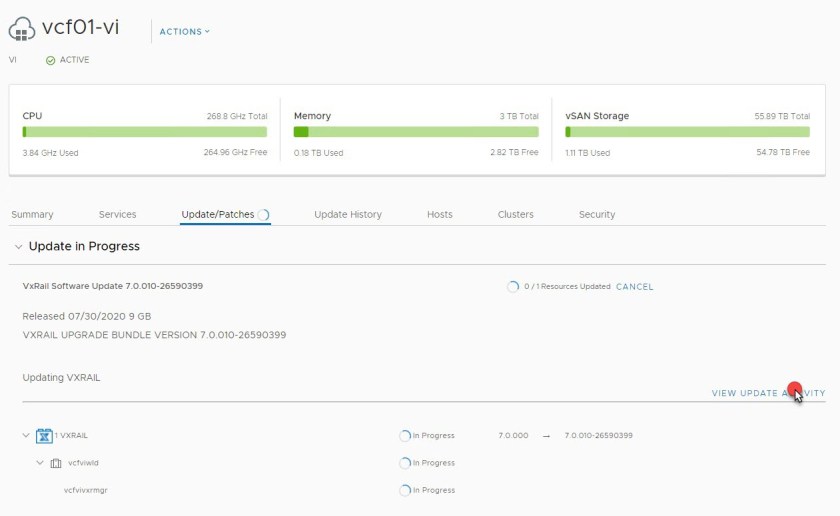

While proceeding with the updates, click on View update activity to monitor progress and track progress via the lcm log:

tail -f /var/log/vmware/vcf/lcm/lcm.log

It is also possible to confirm a successful update via the SDDC manager ssh console:

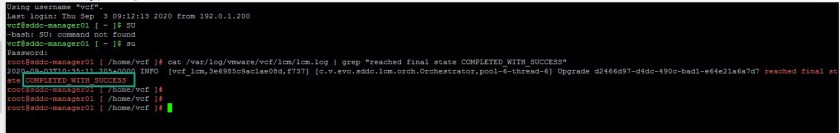

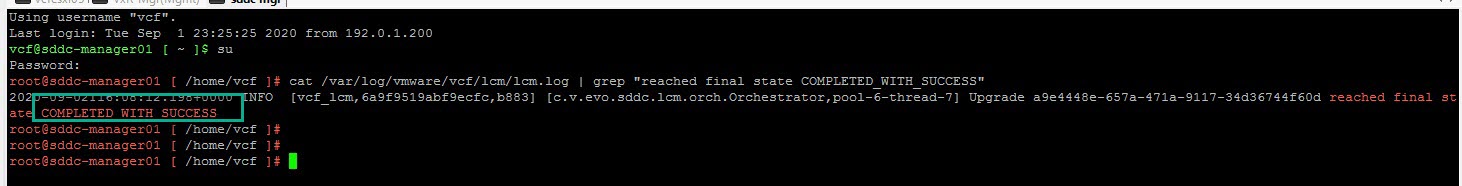

cat /var/log/vmware/vcf/lcm/lcm.log | grep “reached final state COMPLETED_WITH_SUCCESS”

All of the above steps/guidelines are displayed as part of the walk-thru series detailed for each of the 3 upgrades below.

Stepping through each of the 3 upgrade bundles:

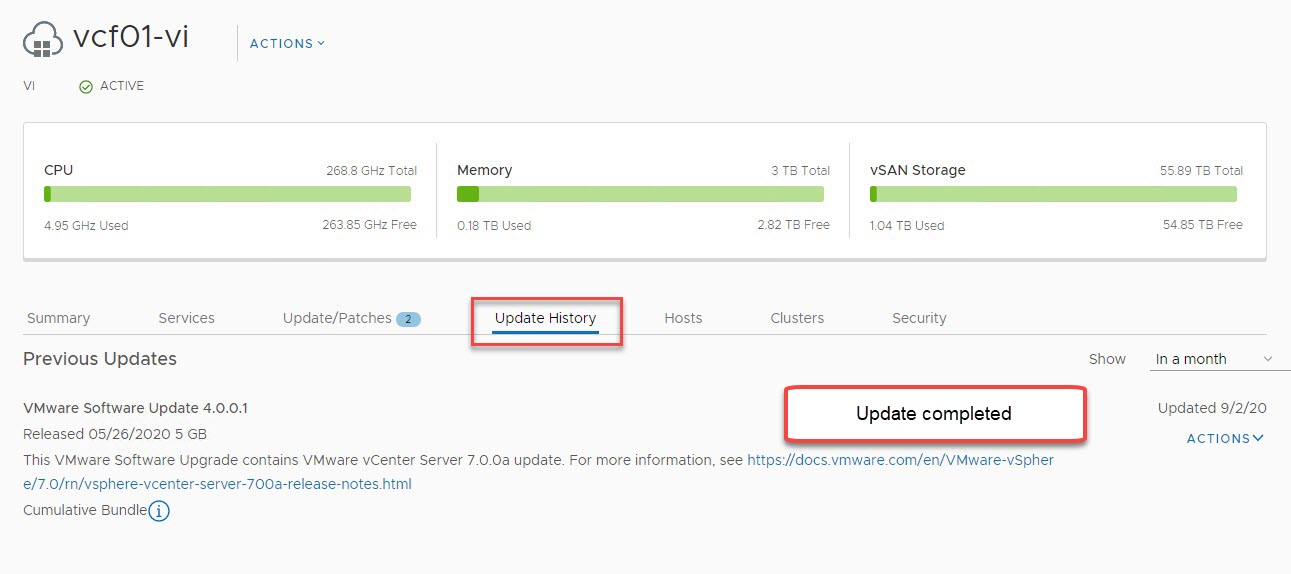

1. VMware Software Upgrade contains VMware vCenter Server 7.0.0a update

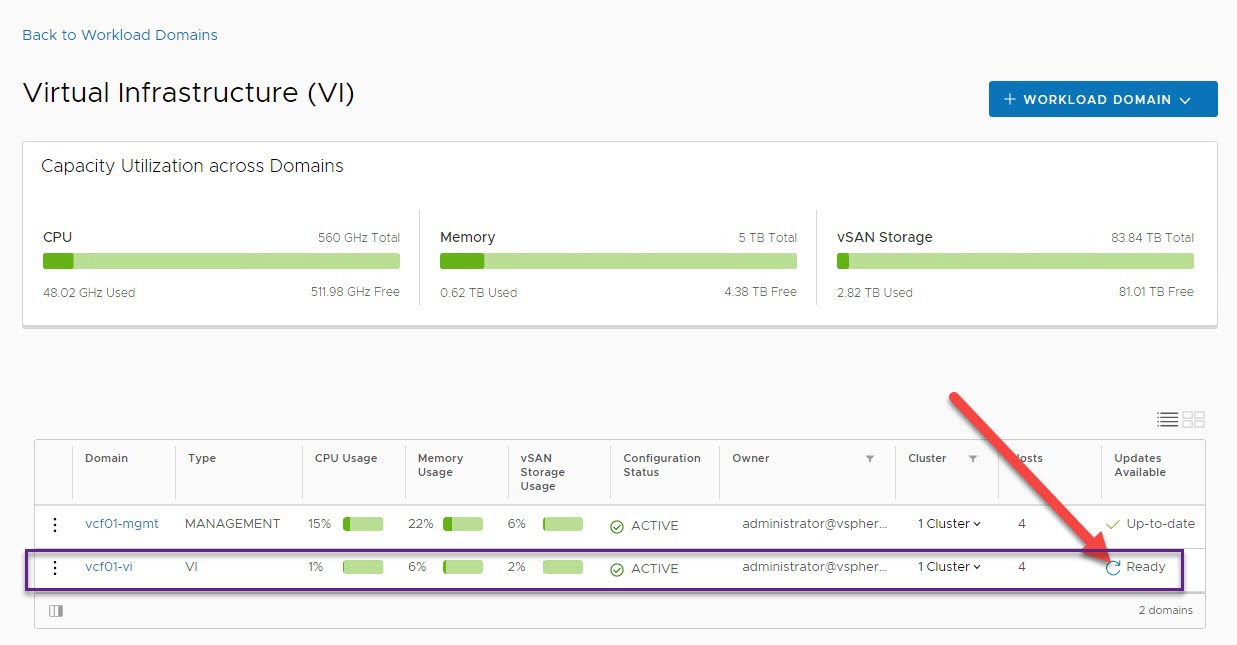

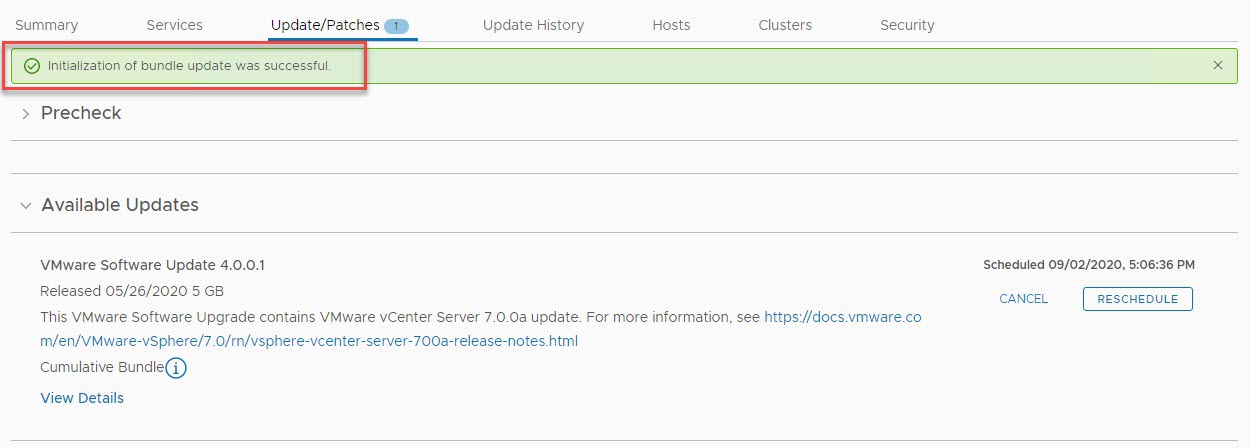

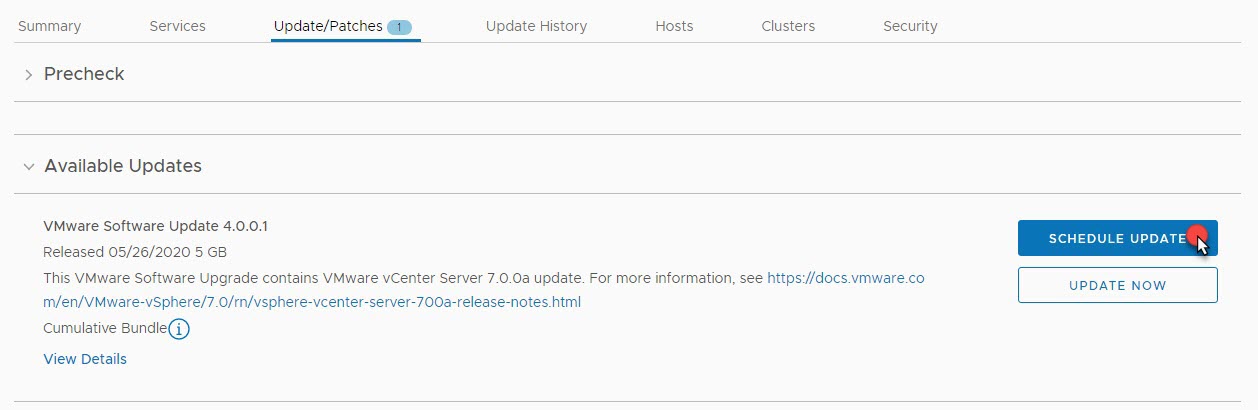

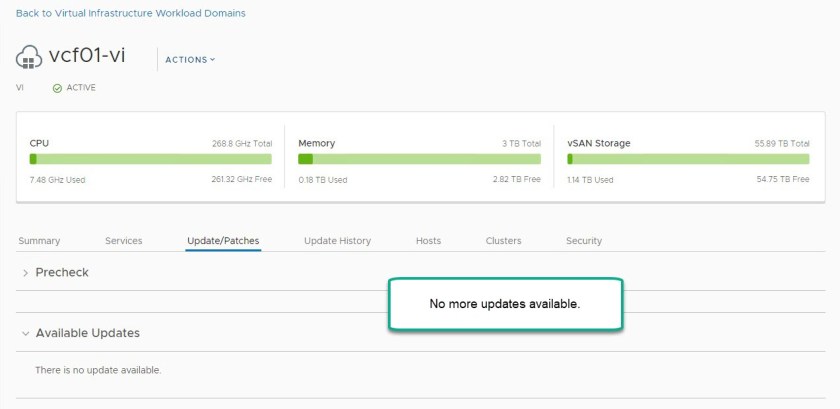

In order to check the availability of Update/Patches from within the SDDC manager console navigate to Inventory->WLD->Update/Patches. In this example we see that VC 7.0.0a update is the first available bundle to be applied:

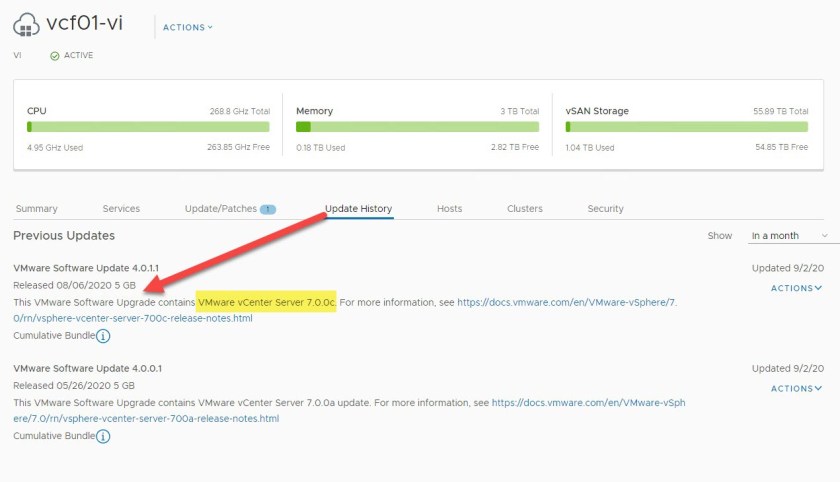

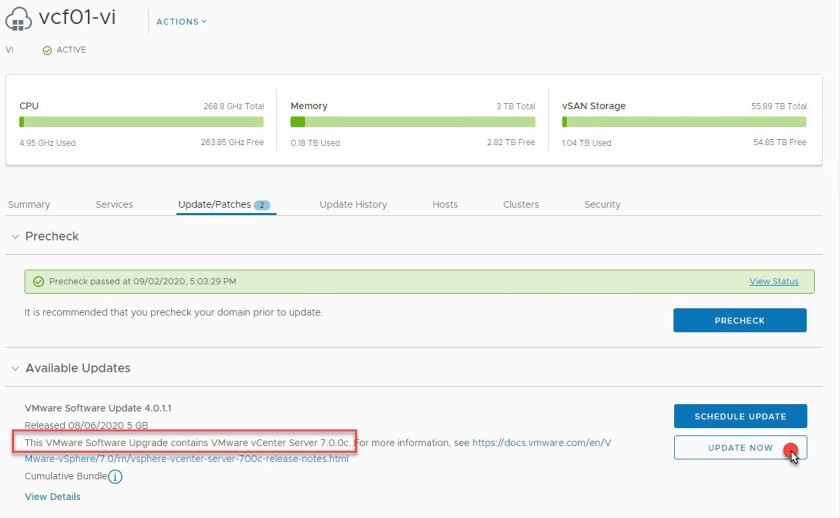

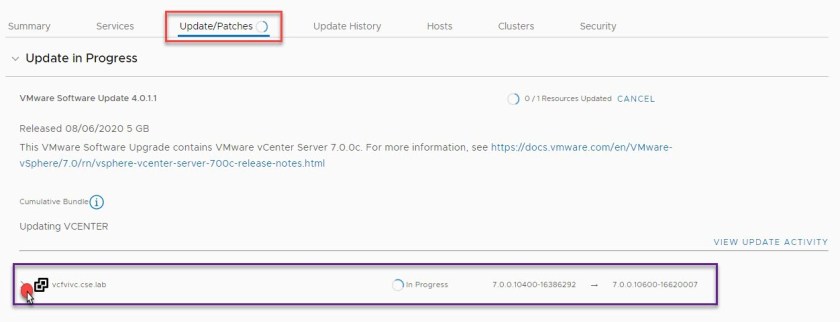

2. VMware Software Upgrade contains VMware vCenter Server 7.0.0c update

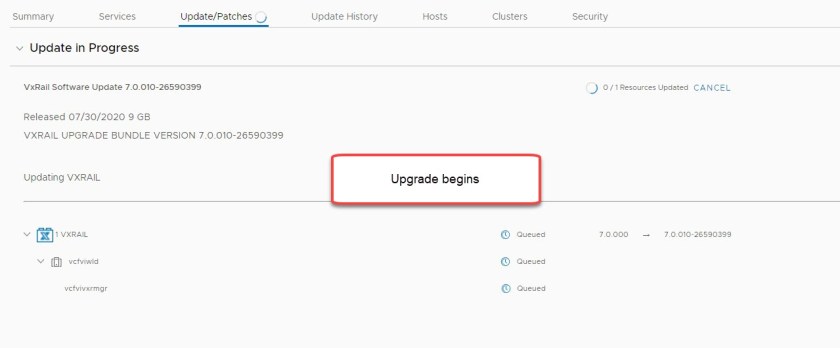

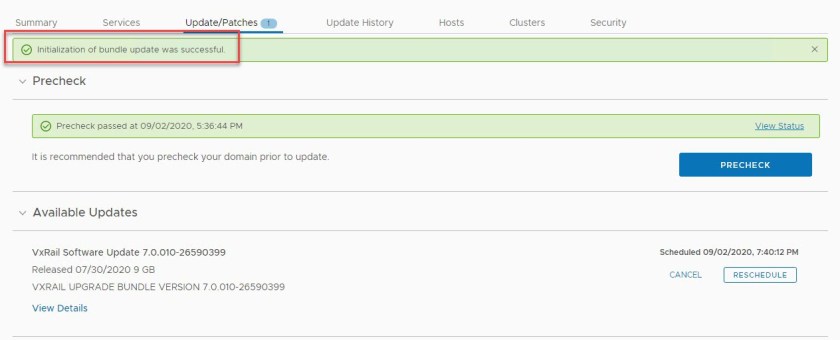

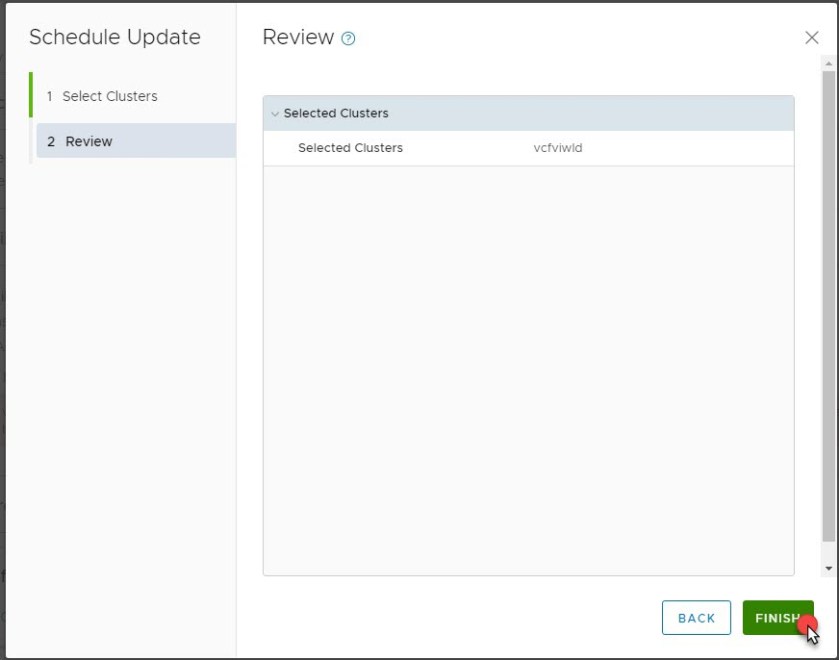

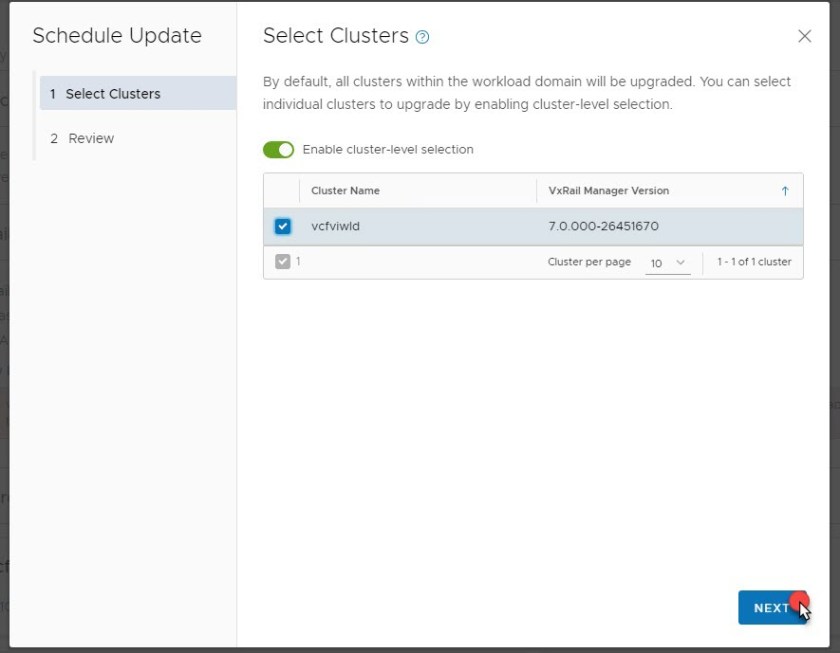

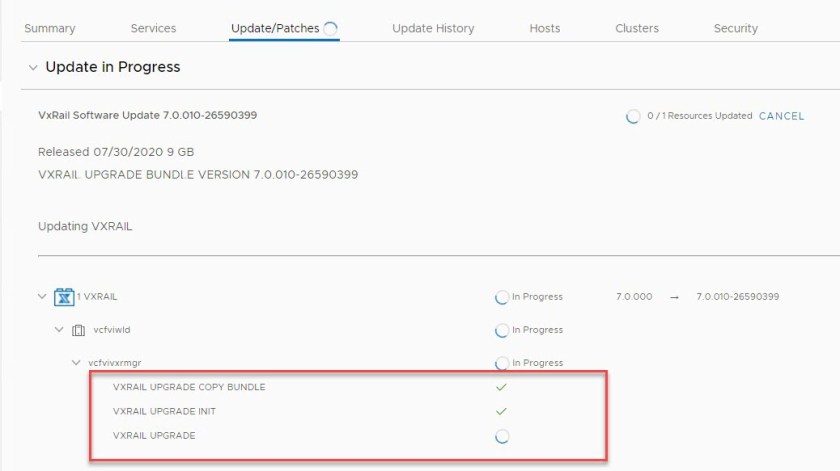

3. VXRAIL UPGRADE BUNDLE VERSION 7.0.010

It is highly recommended that you run the VxVerify tool before proceeding with a VxRail upgrade; more details on how to download and run VxVerify can be found here:

https://support.emc.com/kb/536801

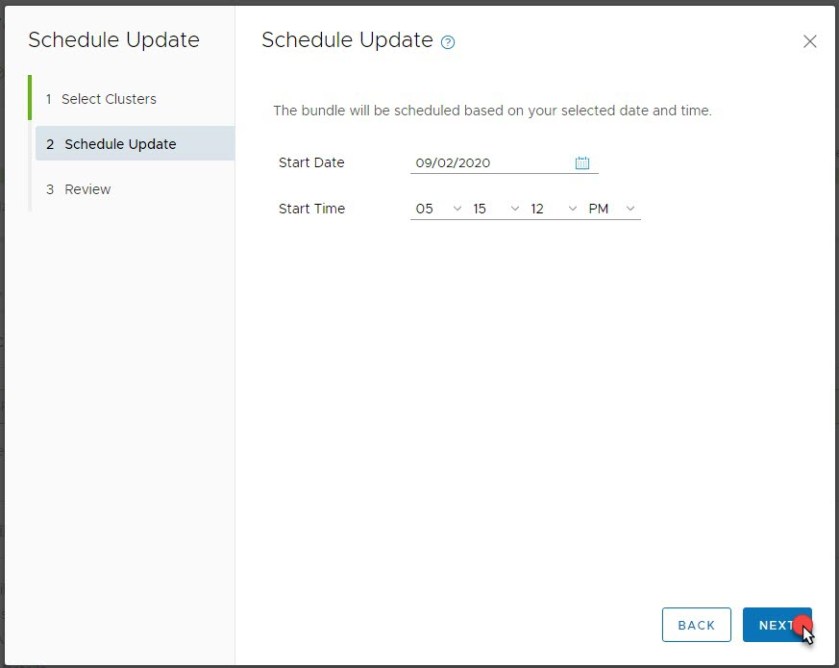

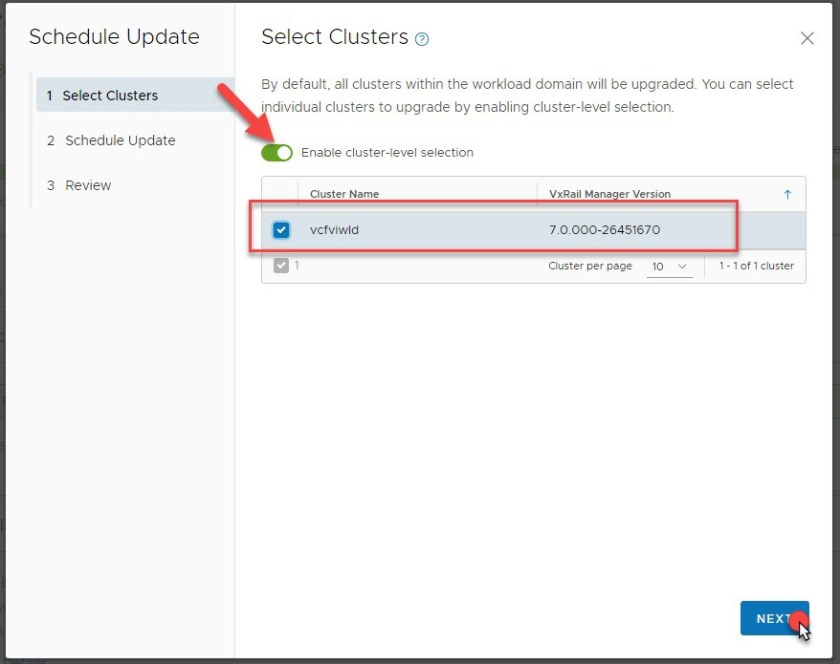

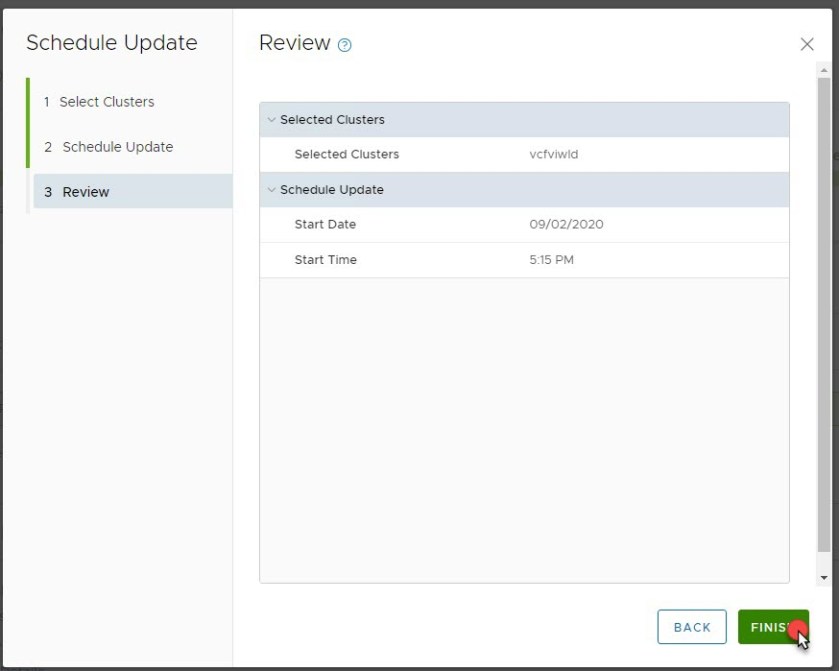

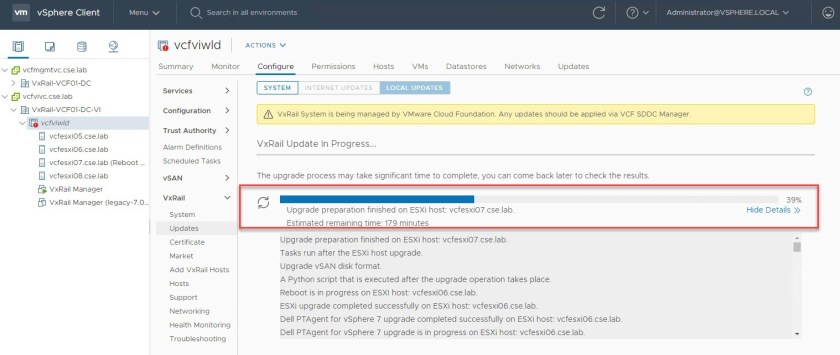

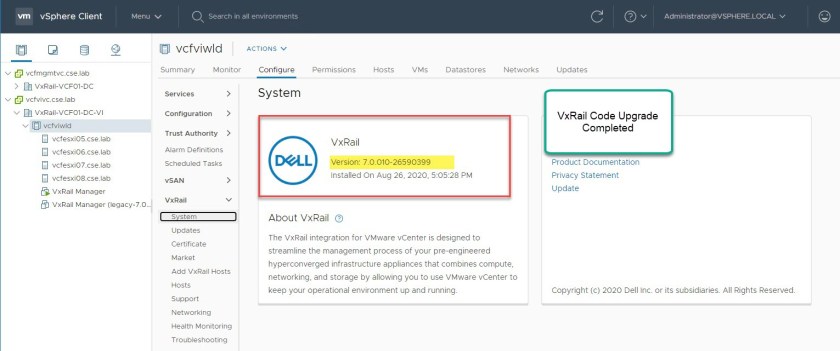

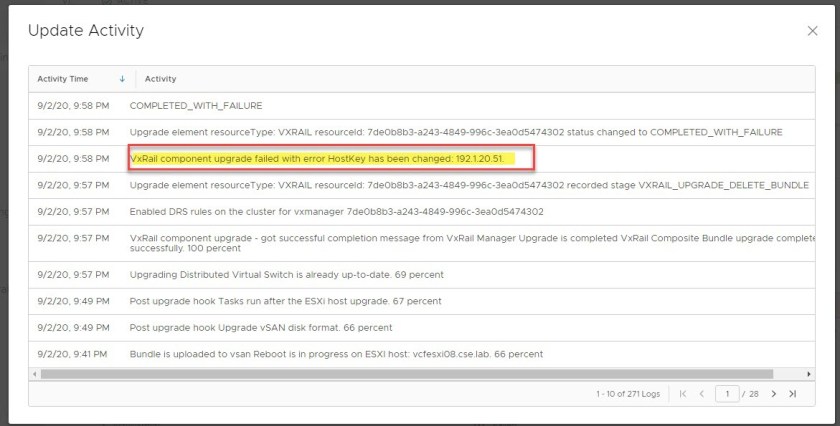

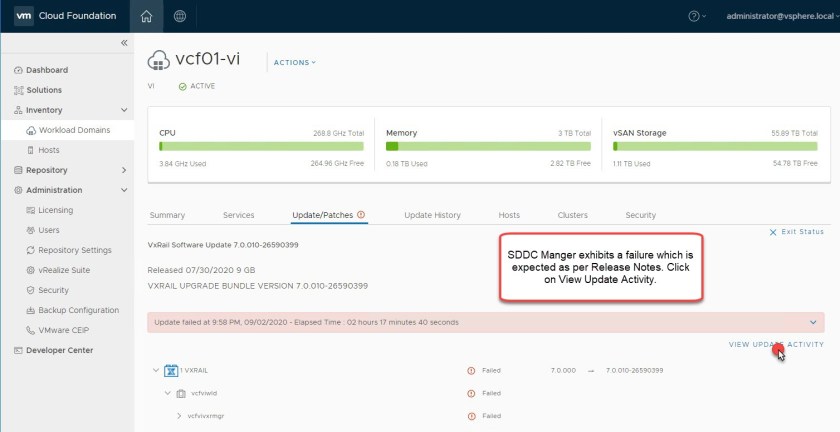

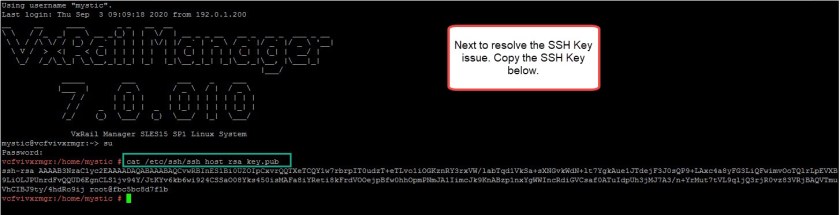

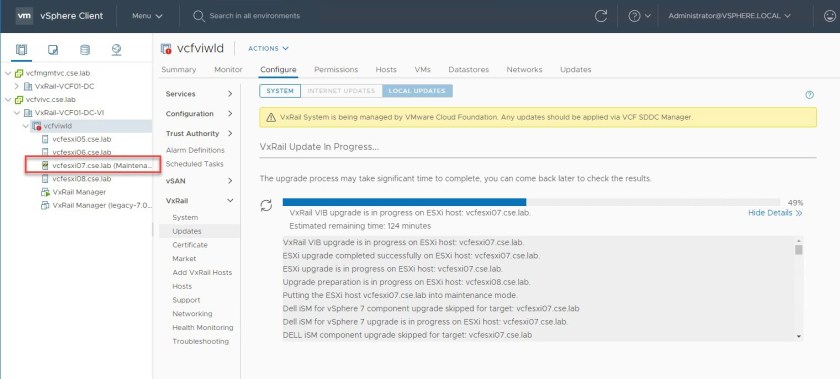

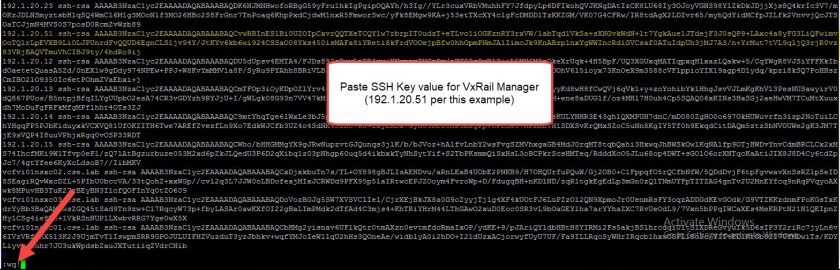

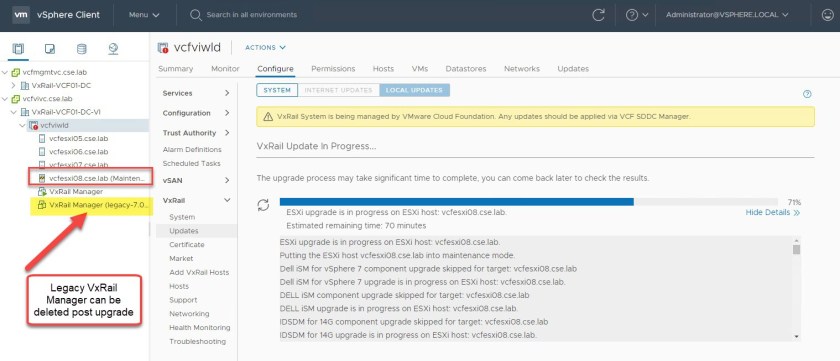

Note: Upgrading VMware Cloud Foundation on VxRail from 4.0.1.0 to 4.0.1.1 fails on VxRail Manager. (VMware KB77007) This is a known issue and expected behavior as part of the upgrade, the steps in the slides below detail how to handle the failure. The upgrade of VxRail actually continues which you can monitor through the VxRail VC plugin and once complete simply return to SDDC Manager and click on ‘RETRY’ which then proceeds to validate all versions on the VxRail end and update SDDC Manager with the updated VxRail version.

Please also refer to the Release Notes for these 2 known issues:

1. Upgrading VxRail Manager to 7.0.010 fails with message VxRail component upgrade failed with error Auth Fail
2. Upgrading VxRail Manager to 7.0.010 fails with message VxRail component upgrade failed with error HostKey has been changed

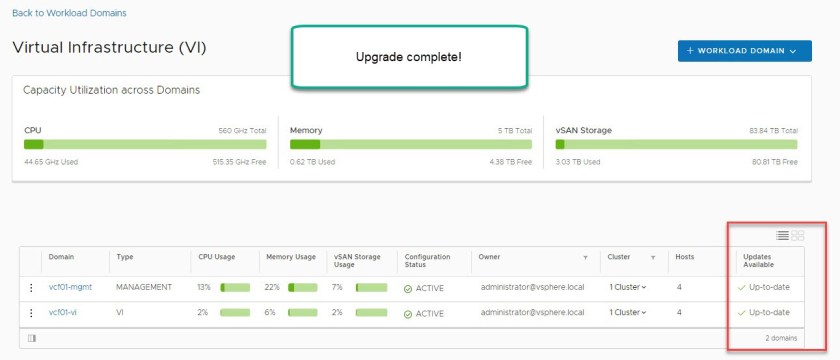

This completes the VCF 4.0.1.0 (VxRail 7.0.000) -> 4.0.1.1 upgrade (VxRail 7.0.010) for the VI WLD. I hope this helped to provide some guidance during your upgrade of VCF On VxRail!
