EMC VMAX – Fully Pre-allocate TDEV

By Fully Pre-allocating a TDEV all the tracks associated with the device are reserved, this may be useful for mission critical apps or avoiding any write miss penalties.

Example SYMCLI:
Single TDEV example:

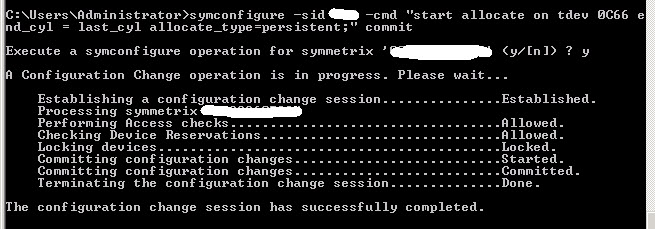

symconfigure -sid xxx -cmd “start allocate on tdev 0c66 end_cyl=last_cyl allocate_type=persistent;” commitCliPreAll1

Range of TDEVs:

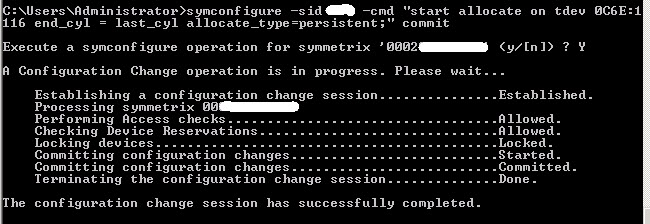

symconfigure -sid xxx -cmd “start allocate on tdev 0c6e:1116 end_cyl=last_cyl allocate_type=persistent;” commitCliPreAll3

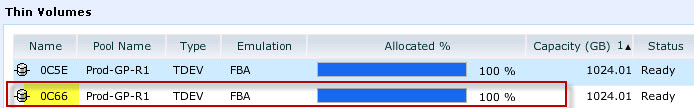

CliPreAll2

Example UNISPHERE:

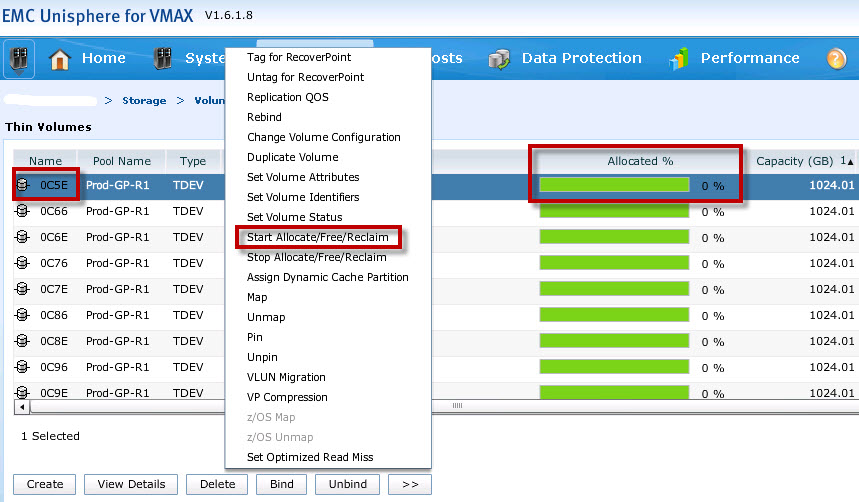

From the Unisphere GUI navigate to storage>volumes right click the device you wish to modify and select ‘Start allocate’.

UniPreAll1

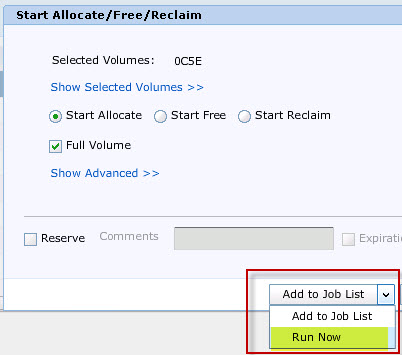

UniPreAll3

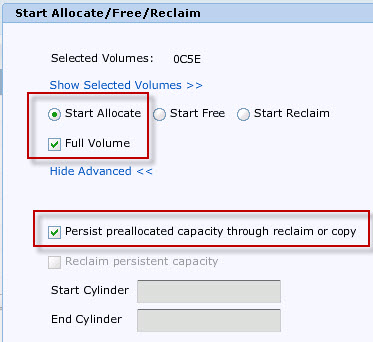

UniPreAll2

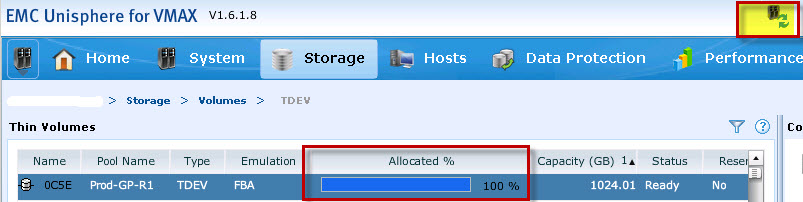

UniPreAll4
