EMC VNX – RecoverPoint Enabler Installation

Installing the RecoverPoint Enabler using NAVICLI:

Check the list of all ENABLERS currently installed on the VNX:
naviseccli -h SP_IP ndu -list

A series of rule checks need to be performed in advance and correct any rule failures before proceeding:
naviseccli -h SP_IP ndu -runrules -listrules

Your configuration will run the following rules
===============================================
Host Connectivity
Redundant SPs
No Thin Provisioning Transitions
Version Compatibility
No Active Replication I/O
Acceptable Processor Utilization
Statistics Logging Disabled
No Transitions
All Packages Committed
Special Conditions
No Trespassed LUNs
No System Faults
No Interrupted Operations
No Incompatible Operations
FAST Cache Status
No Un-owned LUNs

Run through the Pre-installation rules to ensure the success of this software upgrade:
naviseccli -h 10.73.113.40 ndu -runrules -verbose

A common result is a warning for tresspassed LUNs:
RULE NAME: No Trespassed LUNs
RULE STATUS: Rule has warning.
RULE DESCRIPTION: This rule checks for trespassed LUNs on the storage system.
A total of 1 trespassed LUNs were found.
RULE INSTRUCTION: If these LUNs are not trespassed back, connectivity will be disrupted.

To remediate this rule failure and change the Current Owner you will need to execute a trespass command on the LUN using navicli or by right clicking on the LUN in Unisphere and click the trespass option:
naviseccli -h SP_IP trespass lun 1
If changing on multiple LUNs then running the trespass mine command from the SP will trespass all the LUNs that the SP has DEFAULT ownership of. For example to trespass LUNs with Default Ownership of ‘SP B’ but which are currently owned by ‘SP A’:
naviseccli -h SPB_IP trespass mine

Statistics Logging Disabled : Rule failed.
naviseccli -h SP_IP setstats -off

Confirm all rule checks for RPSplitterEnabler are met:
naviseccli -h SP_IP ndu -runrules c:\VNX\Enablers\RPSplitterEnabler-01.01.5.002.ena -verbose

Running install rules...
===============================================
Version Compatibility : Rule passed.
Redundant SPs : Rule passed.
Acceptable Processor Utilization : Rule passed.
No Trespassed LUNs : Rule passed.
No Transitions : Rule passed.
No System Faults : Rule passed.
All Packages Committed : Rule passed.
Special Conditions : Rule passed.
Statistics Logging Disabled : Rule passed.
Host Connectivity : Rule passed.
No Un-owned LUNs : Rule passed.
No Active Replication I/O : Rule passed.
No Thin Provisioning Transitions : Rule passed.
No Incompatible Operations : Rule passed.
No Interrupted Operations : Rule passed.
FAST Cache Status : Rule passed.

Install the RPSplitterEnabler:
naviseccli -h SP_IP ndu -install “c:\VNX Enablers\RPSplitterEnabler-01.01.5.002.ena” -delay 360 -force -gen -verbose

Name of the software package: -RecoverpointSplitter
Already Installed Revision NO
Installable YES
Disruptive upgrade: NO
NDU Delay: 360 secs

Monitoring the progress of the installation:
naviseccli -h SP_IP ndu -status
Is Completed: NO
Status: Activating software on primary SP
Operation: Install

naviseccli -h SP_IP ndu -status
Is Completed: NO
Status: Completing install on secondary SP
Operation: Install

naviseccli -h SP_IP ndu -status
Is Completed: YES
Status: Operation completed successfully
Operation: Install

naviseccli -h SP_IP ndu -list -name -RPSplitterEnabler

Commit Required: NO
Revert Possible: NO
Active State: YES
Is installation completed: YES
Is this System Software: NO

Re-enable stats logging:
naviseccli -h SP_IP setstats -on

If uninstall required:
naviseccli -h SP_IP ndu -messner -uninstall -RPSplitterEnabler -delay 360
Uninstall operation will uninstall
-RPSplitterEnabler
from both SPs Set NDU delay with interval time of 360 secs.Do you still want to continue. (y/n)? y

Installing the RecoverPoint Enabler via Unisphere Service Manager (USM):

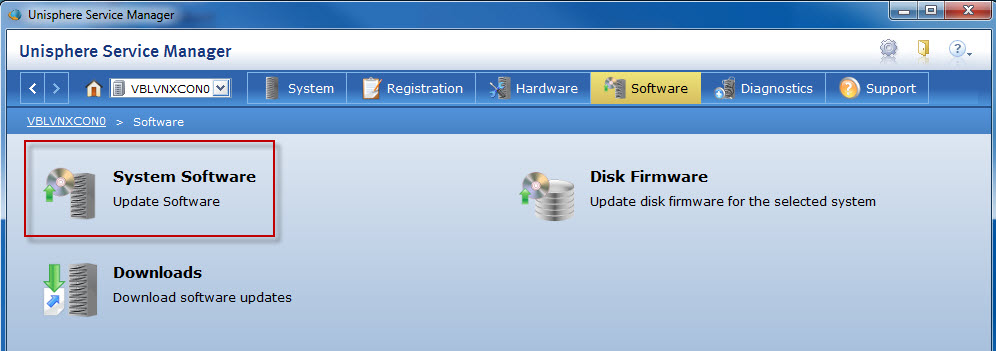

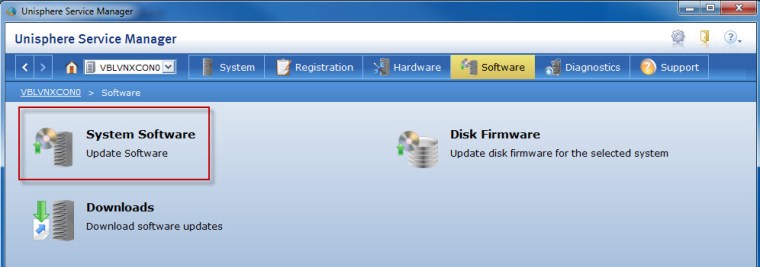

Enabler_Install_USM1

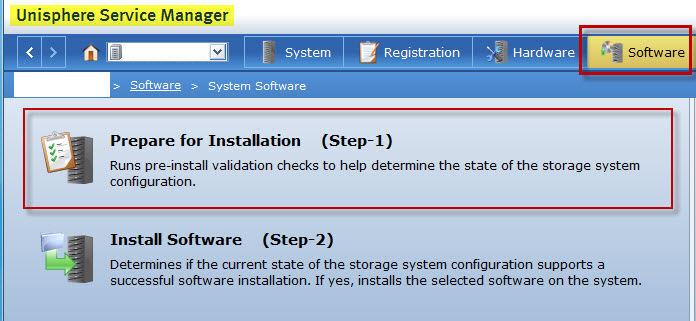

Enabler_Install_USM2

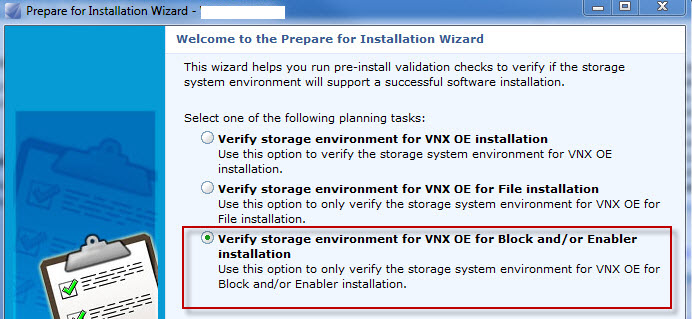

Enabler_Install_USM3

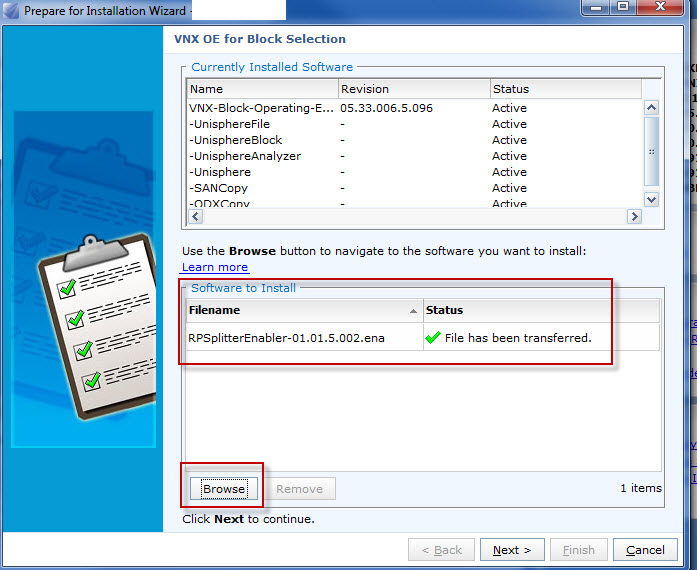

Enabler_Install_USM4

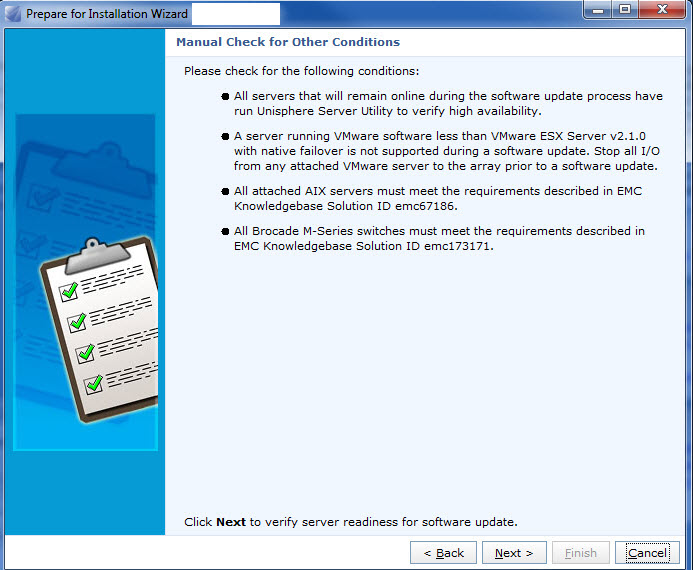

Enabler_Install_USM5

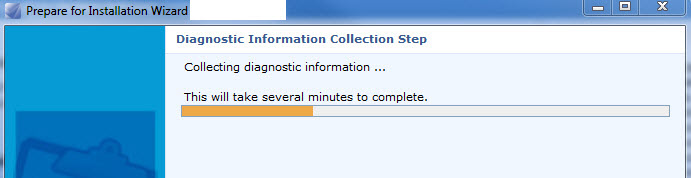

Enabler_Install_USM6

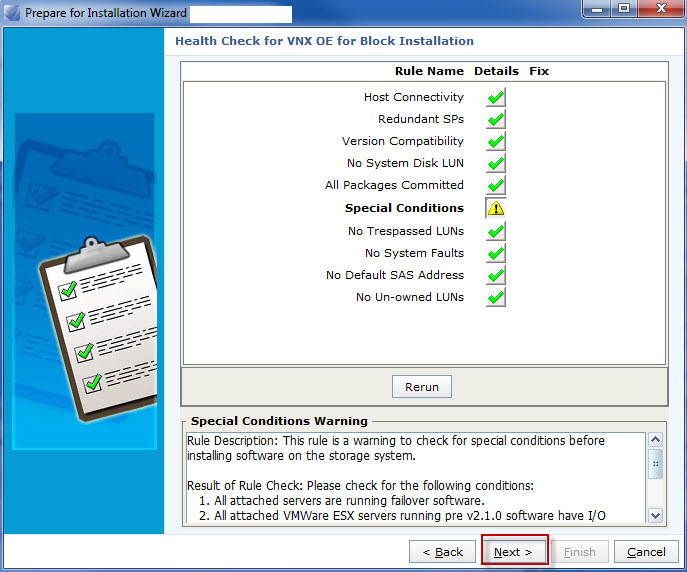

Enabler_Install_USM7

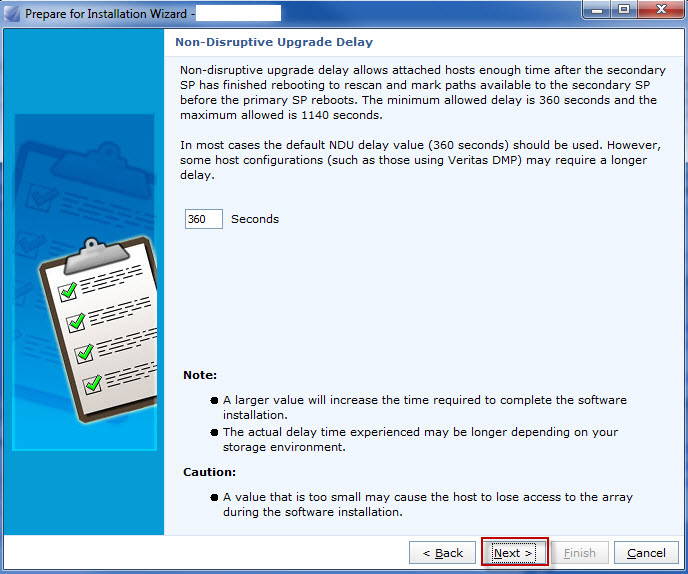

Enabler_Install_USM8

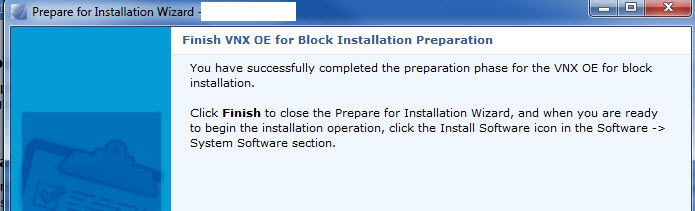

Enabler_Install_USM9

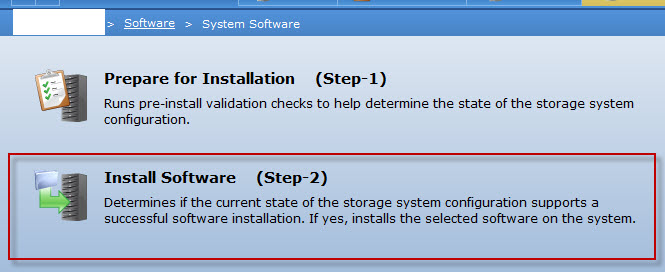

Enabler_Install_USM10

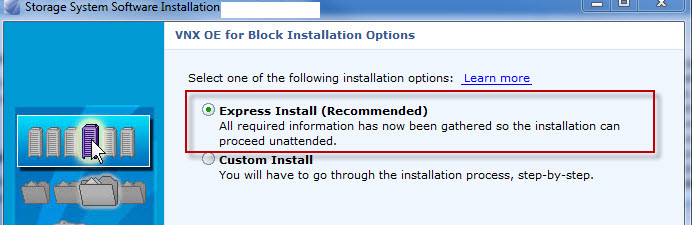

Enabler_Install_USM11

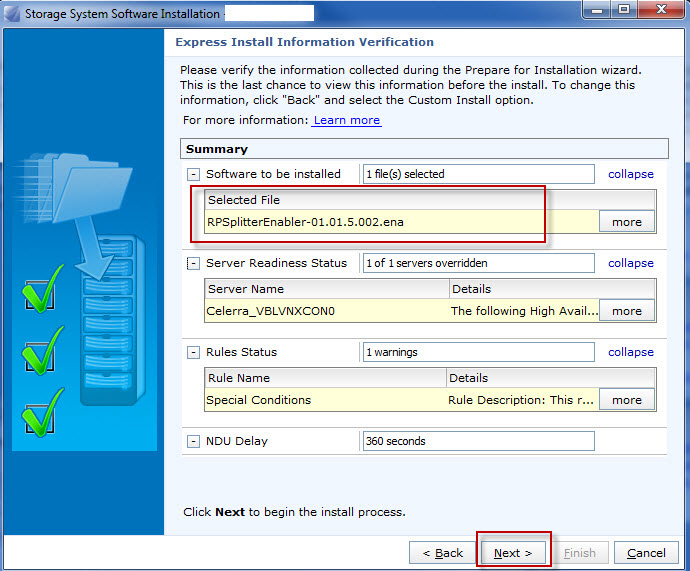

Enabler_Install_USM12

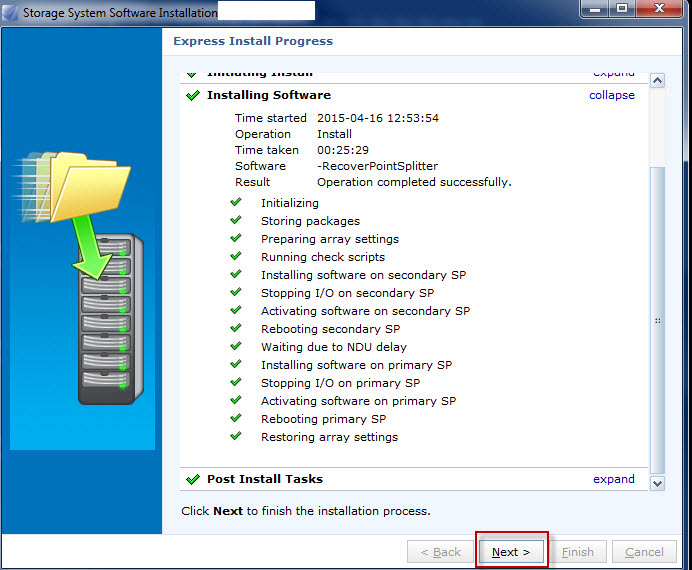

Enabler_Install_USM13

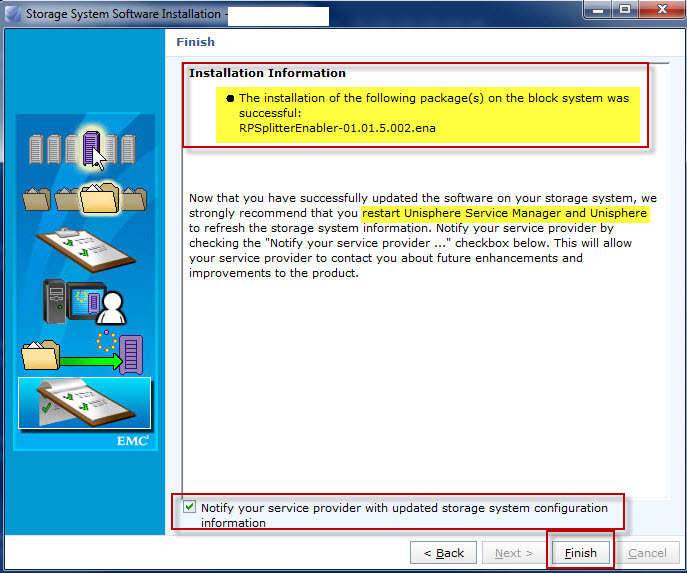

Enabler_Install_USM14
