EMC VNX – New Shutdown Options
Note: Please ensure to reference official EMC documentation before proceeding and ensure your system health checks are passed before completing a shutdown. A new feature with the release of VNX […]
Note: Please ensure to reference official EMC documentation before proceeding and ensure your system health checks are passed before completing a shutdown.
A new feature with the release of VNX Rockies(Block OE 5.33 & File OE 8.1) was the ability to Shutdown the Entire Array using either a single command or via the ‘Power Off’ button in the Unisphere GUI. This feature is also available for first generation VNX storage system’s, from VNX OE code release 05.32.000.5.209 & 7.1.74.5 onwards.
These options are supported on Unified, Block and File systems.
Power Off via CLI
The new CLI option extends the nas_halt command to include a new switch to power down the entire system :
nas_halt –f –sp now
This will power off Control Stations, Data Movers and the Storage Processors.
usage: nas_halt [-f] [-sp] now
Perform a controlled halt of the Control Station(s) and Data Mover(s)
-f Force shutting down without prompt
-sp Shut down Storage Processors on unified platforms
nas_halt can only be executed by root users and must be run from the /nas/sbin directory
Power Off via Unisphere

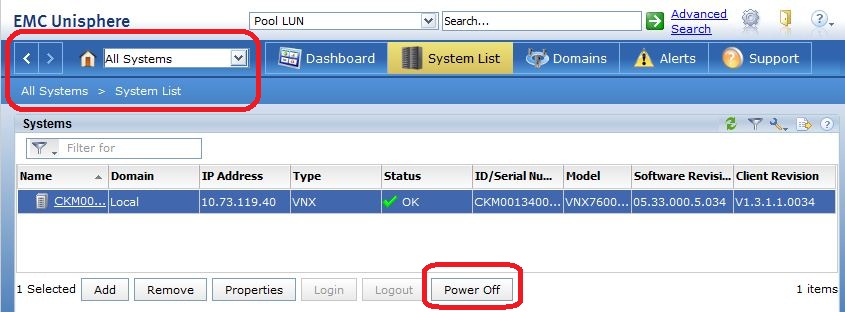

From Unisphere GUI navigate to the System List page:

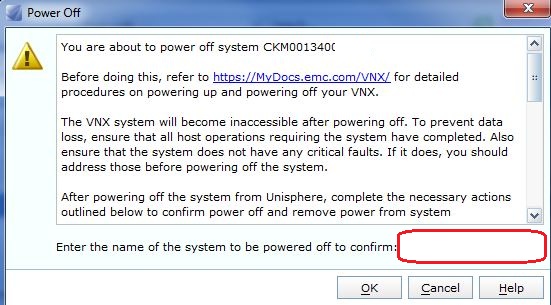

Once you hit the ‘Power Off’ button a dialog box appears and from here you enter the array serial number in order to confirm shutdown:

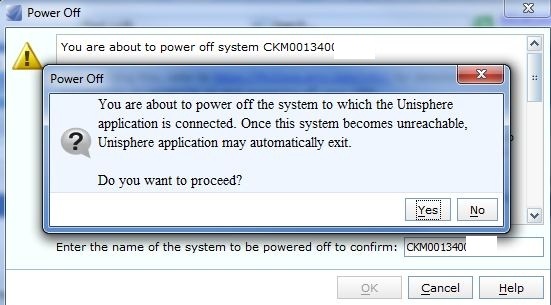

Final Confirmation:
Note:
DAEs are not powered off.
Log entries are available from the CS: /var/log/messages and SP: cimomlog.txt
