ViPR Controller: Exporting VMAX3/AFA LUN fails with Error 12000

This ‘Error 12000’ maybe encountered while exporting a VMAX 3/AFA LUN from ViPR Controller as a shared datastore to a specific vSphere ESXi Cluster (ViPR shared export mask). The reason for the failure is because ViPR either attempts to add the new shared LUN to independent exclusive ESXi Masking Views or to a manually created shared cluster masking view:

This issue arises in scenarios where for example the ESXi hosts already have independent Masking Views created without the NO_VIPR suffix in the Masking view name and/or an ESXi Cluster Masking View (Tenant Pod in EHC terms) has been created outside of ViPR control.

Resolution:

In the case of VMAX ensure only one shared cluster Masking View (MV) exists for the tenant cluster (utilizing cascaded initiator groups) and is under ViPR management control – if the Cluster MV was created manually (for example VxBlock factory) then create a small volume for this manually created MV directly from Unisphere/Symcli and then perform a ViPR ingestion of this newly created volume, this will result in the MV coming under ViPR Management.

In the case of a VxBlock (including Cisco UCS blades) all hosts in the cluster must contain exclusive masking views for their respective boot volumes and these exclusive masking views MUST have a NO_VIPR suffix.

You may ask the question why each host has its own dedicated masking view?: Think Vblock/VxBlock with UCS, where each UCS ESXi blade server boots from a SAN-attached boot volume presented from the VMAX array (Vblock/VxBlock 700 series = VMAX). Further detail can be found here on how specific functioning Masking Views are configured on a Vblock/VxBlock:

vmax-masking-views-for-esxi-boot-and-shared-cluster-volumes

Key point: dedicated exclusive Masking views are required for VMware ESXi boot volumes and MUST have a NO_VIPR suffix in addition to Cluster Masking Views for shared vmfs datastores being under ViPR Control. Please reference the following post for guidance in relation to Boot Volumes exclusive masking views and how to ingest these in ViPR:

ViPR Controller – Ingest V(x)Block UCS Boot Volumes

In the case of ViPR in this scenario it is best to ingest the boot volumes as per the guidance above and then perform the export of a shared volume which will result in ViPR skipping over the exclusive masking views ( _NO_VIPR appended to their exclusive mask name) and ViPR either creating or utilizing (in the case of an existing ViPR export mask) a ViPR controlled shared cluster Masking View.

Note:  if you have circumvented this error by manually creating the shared Cluster Masking View (through Unisphere/SYMCLI) in advance of the first cluster wide ViPR export please ingest this Masking View in order to bring it under ViPR control as per above guidance else you will experience issues later (for example adding new ESXi hosts to the cluster).

Embedded Managment for VMAX All Flash and VMAX3

The following is an excellent post written by Paul Martin (@rawstorage) which details the eMGMT feature available on VMAX All Flash and VMAX3 Systems:

Embedded Managment for VMAX All Flash and VMAX3 – Part 1 Introduction to Embedded Management and Configuring Client Server Access

Two key questions that have come up recently and is addressed in Paul’s post:

What can I do with eManagement?

eManagement is a fully functional install of Unisphere for VMAX, you can do everything that is possible with Unisphere.  So you have full control over array management, performance statistics, reports, Database Storage Analyzer and a full REST API.

So what happens if I need command line access for any reason, is that still possible?  The answer is yes it’s still possible you can always have an external host with solutions enabler installed and gatekeepers mapped if this is something you will require on an ongoing basis.  You can also configure client server access to connect and utilize the solutions enabler instance on the eManagment server.  I’ll take you through that in the next section.

How do I update eManagment software running on my VMAX array?

The good news here is you don’t have to, when a new release of HYPERMAX OS (the VMAX operating environment) is installed the container running the eManagement software is updated for you automatically.  One less moving part to have to worry about, and you will automatically have new features in the microcode available to you through the latest user interface..

In addition ViPR support for eMGMT is targeted for Q3 2016.



EMC VMAX3 – Adding Gatekeeper RDM Volumes To VMware MGMT VM

This post outlines how to create the VMAX Masking view for Gatekeeper RDM volumes and the Script to Automate Adding RDM Disk’s to a VMware MGMT VM.

First some notes on Gatekeeper volumes:
SE(CLI) and Unisphere(GUI) are the main tools used to manage a VMAX Array, Gatekeeper volumes are required in order to carry these commands from both CLI&GUI and generate low level commands which are sent to the VMAX Array to complete the required instruction such as IG,SG,PG,MV or volume creation. It is good practice to use dedicated Gatekeeper devices and avoid using any devices which contain user or application data which may be impacted by the I/O requirement from the instruction command. For example if the device used as a gatekeeper is also servicing application I/O then a scenario may arise if the VMAX is executing a command which takes some time, as a result of this latency the application may encounter poor performance. These are the reasons why EMC strongly recommends to create and map dedicated devices as Gatekeepers.

VMAX3: Creating the RDM Volumes and Associated Masking View

This is an example Masking View for a two node ESXi cluster on which the VMAX management virtual machine shall reside:

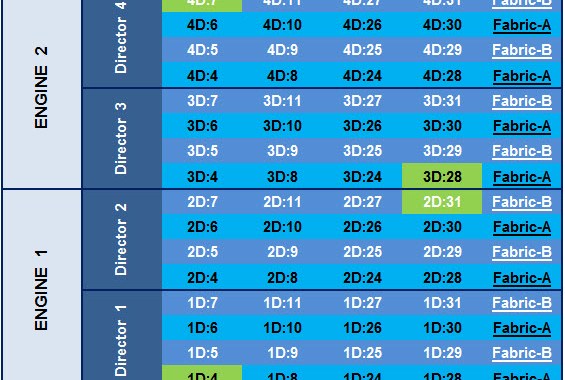

1. Create a Port Group with the VMAX FA ports that the ESXi hosts have been zoned to:
symaccess -sid 123 -name MGMT_VM_PG -type port create
symaccess -sid 123 -name MGMT_VM_PG -type port -dirport 1d:24,2d:31,3D:28,4d:27 add

2. Create the Initiator Group containing the ESXi hosts WWNS:
symaccess -sid 123 -name MGMT_VM_IG -type initiator create -consistent_lun
symaccess -sid 123 -name MGMT_VM_IG -type initiator -wwn 21000024ff5CXXF8 add
symaccess -sid 123 -name MGMT_VM_IG -type initiator -wwn 21000024ff5CXXF9 add
symaccess -sid 123 -name MGMT_VM_IG -type initiator -wwn 21000024ff55XX4C add
symaccess -sid 123 -name MGMT_VM_IG -type initiator -wwn 21000024ff55XX4D add

3. Create the Storage Group for the Gatekeeper RDM Volumes:
symsg -sid 123 create MGMT_VM_SG -slo optimized -srp SRP_1
Listing the SRP:
symcfg list -srp

4. Create the Gatekeeper volumes (10 Gatekeeper volumes in this example) and add to the MGMT_VM_SG:
symconfigure -sid 123 -cmd “create dev count=10, emulation=FBA, sg=MGMT_VM_SG, size=3 CYL, config=tdev”; preview -nop
symconfigure -sid 123 -cmd “create dev count=10, emulation=FBA, sg=MGMT_VM_SG, size=3 CYL, config=tdev”; prepare -nop
symconfigure -sid 123 -cmd “create dev count=10, emulation=FBA, sg=MGMT_VM_SG, size=3 CYL, config=tdev”; commit -nop

5. Create the Masking View:
symaccess -sid 123 create view -name MGMT_VM_MV -sg MGMT_VM_SG -pg MGMT_VM_PG -ig MGMT_VM_IG

View Configuration Details

Confirm that the HOSTS are logged into the correct VMAX ports:
symaccess -sid 123 list logins -wwn 21000024ff5CXXF8
symaccess -sid 123 list logins -wwn 21000024ff5CXXF9
symaccess -sid 123 list logins -wwn 21000024ff55XX4C
symaccess -sid 123 list logins -wwn 21000024ff55XX4D

Verify that the HBA is a member of the correct Initiator Group:
symaccess -sid 123 list -type initiator -wwn 21000024ff5CXXF8
symaccess -sid 123 list -type initiator -wwn 21000024ff5CXXF9
symaccess -sid 123 list -type initiator -wwn 21000024ff55XX4C
symaccess -sid 123 list -type initiator -wwn 21000024ff55XX4D

Storage Group details:
symaccess -sid 123 list -type storage -name AMP_SG -v
symaccess -sid 123 show AMP_SG -type storage

Port Group details:
symaccess -sid 123 list -type port -name AMP_PG -v
symaccess -sid 123 show AMP_PG -type port

Initiator Group details:
symaccess -sid 123 list -type initiator -name AMP_IG -v
symaccess -sid 123 show AMP_IG -type initiator

Masking View details:
symaccess -sid 123 list view -name AMP_MV
symaccess -sid 123 list view -name AMP_MV -detail

Gatekeeper details:
symdev -sid 340 list -cap 3 -captype cyl
symaccess -sid 123 list assignment -dev 049:052

If you need to remove the devs from the SG:
symaccess -sid 123 -name AMP_SG -type storage remove devs 049:052


####################################################################
Script to Automate Adding RDM Disk’s:

PowerCLI Script: Automate Adding RDM Disk’s
Here is a script which scans for the Host LUN ID and then attributes the $LUN_# parameter
to the ‘ConsoleDeviceName’. This greatly simplifies the process of adding large quantities of RDM Disk’s.

There are 4 parameters used in the script. The following 3 shall be prompted for:
“Your-ESXi-Hostname” $VMhostname
“Your-VM-Name” $VM
“Your-VMFS-DS-Name” $Datastore

Please edit the runtime name as required, the script default is :
“vmhba0:C0:T0:L#”

The following example script will automatically create 10 RDM Disks on a Virtual Machine and place the pointer files
in a VMFS Datastore based on the parameters provided.

#####################################################################

Write-Host “Please edit the runtime name in the script if required before proceeding, the default is:” -ForegroundColor Red
Write-Host “vmhba0:C0:T0:L#” -ForegroundColor Green

Write-Host “Please enter the ESXi/Vcenter Host IP Address:” -ForegroundColor Yellow -NoNewline
$VMHost = Read-Host

Write-Host “Please enter the ESXi/Vcenter Username:” -ForegroundColor Yellow -NoNewline
$User = Read-Host

Write-Host “Please enter the ESXi/Vcenter Password:” -ForegroundColor Yellow -NoNewline
$Pass = Read-Host

Connect-VIServer -Server $VMHost -User $User -Password $Pass

##########################################

$VMhostname = ‘*’

ForEach ($VMhostname in (Get-VMHost -name $VMhostname)| sort)
{

Write-Host $VMhostname

}

Write-Host “Please enter the ESXi Hostname where your target VM resides:” -ForegroundColor Yellow -NoNewline
$VMhostname = Read-Host

######################################

$Datastore = ‘*’

ForEach ($Datastore in (Get-Datastore -name $Datastore)| sort)
{

Write-Host $Datastore

}

Write-Host “From the list provided – Please enter the VMFS datastore where the RDM pointer files will reside:” -ForegroundColor Yellow -NoNewline
$Datastore = Read-Host

######################################

$VM = ‘*’

ForEach ($VM in (Get-VM -name $VM)| sort)
{
Write-Host $VM
}

Write-Host “From the list provided – Please enter the VM Name where the RDM volumes shall be created on:” -ForegroundColor Yellow -NoNewline
$VM = Read-Host

##############
Write-Host “ESXi Hostname you have chosen: ” -ForegroundColor Yellow
Write-Host “$VMhostname” -ForegroundColor Green
Write-Host “VMFS you have chosen: ” -ForegroundColor Yellow
Write-Host “$Datastore” -ForegroundColor Green
Write-Host “Vitual Machine you have chosen: ” -ForegroundColor Yellow
Write-Host “$VM” -ForegroundColor Green

################
## ACLX T0:L0 ##
################
$LUN_0 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L0”} | Select ConsoleDeviceName,runtimename
$LUN_0 = $LUN_0 | Select ConsoleDeviceName
$LUN_0 = $LUN_0 -replace “@{ConsoleDeviceName=”, “”
$LUN_0 = $LUN_0 -replace “}”, “”
$LUN_0
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_0 -DataStore $Datastore

#####################
## Gatekeepers x10 ##
#####################
$LUN_1 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L1”} | Select ConsoleDeviceName,runtimename
$LUN_1 = $LUN_1 | Select ConsoleDeviceName
$LUN_1 = $LUN_1 -replace “@{ConsoleDeviceName=”, “”
$LUN_1 = $LUN_1 -replace “}”, “”
$LUN_1
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_1 -DataStore $Datastore

$LUN_2 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L2”} | Select ConsoleDeviceName,runtimename
$LUN_2 = $LUN_2 | Select ConsoleDeviceName
$LUN_2 = $LUN_2 -replace “@{ConsoleDeviceName=”, “”
$LUN_2 = $LUN_2 -replace “}”, “”
$LUN_2
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_2 -DataStore $Datastore

$LUN_3 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L3”} | Select ConsoleDeviceName,runtimename
$LUN_3 = $LUN_3 | Select ConsoleDeviceName
$LUN_3 = $LUN_3 -replace “@{ConsoleDeviceName=”, “”
$LUN_3 = $LUN_3 -replace “}”, “”
$LUN_3
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_3 -DataStore $Datastore

$LUN_4 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L4”} | Select ConsoleDeviceName,runtimename
$LUN_4 = $LUN_4 | Select ConsoleDeviceName
$LUN_4 = $LUN_4 -replace “@{ConsoleDeviceName=”, “”
$LUN_4 = $LUN_4 -replace “}”, “”
$LUN_4
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_4 -DataStore $Datastore

$LUN_5 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L5”} | Select ConsoleDeviceName,runtimename
$LUN_5 = $LUN_5 | Select ConsoleDeviceName
$LUN_5 = $LUN_5 -replace “@{ConsoleDeviceName=”, “”
$LUN_5 = $LUN_5 -replace “}”, “”
$LUN_5
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_5 -DataStore $Datastore

$LUN_6 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L6”} | Select ConsoleDeviceName,runtimename
$LUN_6 = $LUN_6 | Select ConsoleDeviceName
$LUN_6 = $LUN_6 -replace “@{ConsoleDeviceName=”, “”
$LUN_6 = $LUN_6 -replace “}”, “”
$LUN_6
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_6 -DataStore $Datastore

$LUN_7 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L7”} | Select ConsoleDeviceName,runtimename
$LUN_7 = $LUN_7 | Select ConsoleDeviceName
$LUN_7 = $LUN_7 -replace “@{ConsoleDeviceName=”, “”
$LUN_7 = $LUN_7 -replace “}”, “”
$LUN_7
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_7 -DataStore $Datastore

$LUN_8 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L8”} | Select ConsoleDeviceName,runtimename
$LUN_8 = $LUN_8 | Select ConsoleDeviceName
$LUN_8 = $LUN_8 -replace “@{ConsoleDeviceName=”, “”
$LUN_8 = $LUN_8 -replace “}”, “”
$LUN_8
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_8 -DataStore $Datastore

$LUN_9 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L9”} | Select ConsoleDeviceName,runtimename
$LUN_9 = $LUN_9 | Select ConsoleDeviceName
$LUN_9 = $LUN_9 -replace “@{ConsoleDeviceName=”, “”
$LUN_9 = $LUN_9 -replace “}”, “”
$LUN_9
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_9 -DataStore $Datastore

$LUN_10 = Get-SCSILun -VMhost $VMhostname -LunType Disk | Where-Object {$_.runtimename -like “vmhba0:C0:T0:L10”} | Select ConsoleDeviceName,runtimename
$LUN_10 = $LUN_10 | Select ConsoleDeviceName
$LUN_10 = $LUN_10 -replace “@{ConsoleDeviceName=”, “”
$LUN_10 = $LUN_10 -replace “}”, “”
$LUN_10
New-HardDisk -VM $VM -DiskType RawPhysical -DeviceName $LUN_10 -DataStore $Datastore

##############
### VERIFY ###
##############
##Finding RDMs Using PowerCLI:##
# Detailed #
# Get-VM | Get-HardDisk -DiskType “RawPhysical” | Select Parent,Name,DiskType,ScsiCanonicalName,DeviceName,CapacityGB | fl
# Brief #
# Get-ScsiLun -VMHost $VMhostname -LunType disk
# NAA #
# Get-ScsiLun -VMHost $VMhostname -LunType disk | select CanonicalName

### Get IP Address for ViClient to check GUI ###
# Get-VMHost -Name $VMhostname | Get-VMHostNetworkAdapter

EMC VMAX3 – CLI Cheat Sheet

Guest post by the VMAX Guru – Paul Martin @rawstorage

VMAX3 CLI Cheat Sheet

Disclaimer, this is not a comprehensive how to, just a toe in the ocean of VMAX3, there is always more and there is always why. The information here is not a substitute for the product guides which have been consolidated into a single downloadable PDF documentation set please download and refer to the documentation set for full feature descriptions.

https://support.emc.com/docu59402_Solutions-Enabler-8.0.3-Documentation-Set.pdf
Also see the new features paper for more details on VMAX3 and features in general

https://www.emc.com/collateral/technical-documentation/h13578-vmax3-family-new-features-wp.pdf

FAST with SLO

One of the major changes with V3 is the way we provision storage. FAST has been enhanced to work on a more granular level (128KB track level) and we have abstracted a lot of the internals so that the end user need not be so concerned about the mechanics of the array they can simply provision capacity and set a performance expectation which the array will work to achieve.
In VMAX3 FAST is always on and the majority of the configuration is pre-configured, available SLO are dictated by the disks available in the array and Storage Resource Pools are defined in the bin file.
Provisioning storage on a VMAX3 is easier that on previous Symm/VMAX arrays, we are no longer required to create meta devices to support larger devices and the SLO model makes provisioning intuitive and easy. From the command line it’s pretty much a three step process:

1. Create your storage group and assign your SLO and workload (optional), if no SLO or workload is specified FAST will still manage everything but your SLO will be optimized. The storage can represent your applications devices as a whole and can be used in SRDF and Timefinder meaning if you design storage with application==storagegroup snapshot/srdf design becomes simpler later on too. VMAX3 supports 64K storage groups so there is no reason not to configure 1 per app.
symsg –sid 007 create myapp_sg –slo gold –workload oltp
2. Create and add your devices, here I am creating 5 x 2048 GB devices and adding to my storage group. Note I can just create 2048 GB devices, no meta is created. At present we can create devs up to 16TB soon to be increased further.
symconfigure -sid 007 -cmd "create dev count =5 config=tdev, emulation=fba size=2048 GB sg=myapp_sg;" preview
3. Present to the host via a masking view, no change from VMAX here.
symaccess –sid 007 create view –name myapp_mv –sg myapp_sg –pg myapp_pg –ig myapp_ig

Here I will highlight a few of the key commands to gather information about the configuration and interaction with the SRP and SLO.
NOTE:- Monitoring and Alerting of FAST SLO is built into Unisphere for VMAX. SLO compliance is reported at every level when looking at storage group components in Unisphere.

Viewing SRP Configured On The Array

Most VMAX3 arrays will only have a single SRP however it is possible to have multiple, if you are using FAST.X or ProtectPoint you may have an additional SRP in the config, the following command shows you what is available:
symcfg list –srp

Note the default SRP is set to be usable by RDFA DSE, this is normal. There is no need to configure a separate pool for DSE in VMAX3, we can reserve and cap some space from the default SRP for this purpose.

VMAX3-CLI1
VMAX3-CLI2

Viewing the Available SLO

symcfg list -slo
VMAX3-CLI3

To get a more detailed look at the SLO’s and the workloads that can be associated with storage groups you can run the following command. The output shows the approximate response time for each.

symcfg list –slo –detail –by_resptime –all

VMAX3-CLI4

SRP Capacity Consumption

In order to get an idea of how your storage is being consumed from the command line you can run the CMD:
symsg list –srp –demand –type slo
this will show you how your SRP is being consumed by each of the SLO, it will also list how much is consumed by DSE and Snapshot, remember this capacity all comes from your SRP so it’s worth keeping an eye on.
VMAX3-CLI5

Listing SLO associations by Storage Group

The previous command gives us a good idea at a high level, but if we want to see from a storage group level which storage groups are associated with each SLO we have a command for that too:
Symsg list –by_SLO –detail
this shows each storage group and whether or not it is associated with an SLO, we also get some detail about the number of devices but we don’t see much regarding the capacity.
VMAX3-CLI6

Additionally you can see consumption on an individual device level on the application storage group.
VMAX3-CLI7

You can see the full breakdown of your SRP including drive pools and which SLO you have available as well as TDAT information. The output below shows all the thin devices (TDEVS) bound to the SRP and how much space they are each consuming.
VMAX3-CLI8

Changing SLO On Existing Storage Groups

Changing Service Level Objective to Platinum and Workload to OLTP_REP for a storage group test:
symsg –sg test -sid 123 set –slo Platinum -wl OLTP_REP

Solutions Enabler 8.X also allows for moving devices between groups non-disruptively
• Moving devices between child storage groups of a parent storage group when the masking view uses the parent group.
• Moving devices between storage groups when a view is on each storage group and both the initiator group (IG) and the port group (PG) elements are common to the views (initiators and ports from the source group must be present in the target).
• Moving devices from a storage group with no masking view or service level to one in a masking view. This is useful as you can now create devices and automatically add to storage group from CLI, so a staging group may exist. Command is:
symsg –test –sid 123 –sg staging_sg move dev 345 gold_sg

VMAX3-CLI9

SnapVX – Space efficient Targetless Snapshots
I’m not going to go into the full details of SnapVX and what makes it revolutionary in the VMAX3, we have a very good technote that already covers this in detail. Needless to say, taking snapshots on VMAX3 is quicker, more efficient and easier than it has been on any previous generations. See the technote for full details.
Like most features in the VMAX to access the functionality simply put the word sym in front of the feature name. SnapVX is controlled with the symsnapvx command set. Really the only command you should need is symsnapvx –h, this will get you the full set of options. I’ll highlight a few of the main commands here.

Creating Snapshots

SnapVX is simplest when your storage has been designed with an application per storage group, you can still use device groups or files if you want but VMAX3 supports 64K storage groups, that is enough for one per application in most environments and means only managing a single entity for each application for provisioning as well as local replication and remote replication. You can snap multiple applications together using a cascaded storage group containing all of the child storage groups for each application. SnapVX snapshots are consistent by design so no need to specify any additional flags to obtain a point in time image of a live system.
To create a snapshot simply grab the storagegroup name which contains all the devices for your application and execute the establish command, the example below will create a snapshot hourly snapshot and will automatically terminate the same snapshot 24 hours after it was created:
symsnapvx –sg test–snapshotname hourlysnapshot establish –ttl –delta 1 –nop
You could run the command above in a cron job or batch file every hour and snapvx will create a new generation each time (gen 0).

Listing SnapVX Snapshots And Capacity Consumed

In order to see which storage groups are consuming the most space we can run the following cmd:
symcfg list –srp –demand –type sg
The output lists the storage groups showing their subscribed capacity (how much potential space they can consume) as well as their actual allocated capacity. A Particulary useful output here is the SnapShot Allocated (GB) Column, if you are in a bind for space you can quickly identify which storage group has consumed the most snapshot space and terminate some snapshots to return space to the SRP.

Note your storage group will only show up in this command output if it is FAST managed. Although everything in VMAX3 is under fast control it is possible to create storage groups that are not FAST managed for various use cases. A storage group is FAST managed if you explicitly specify the SRP and or assign an SLO. Shown below SourceSG1 has a large capacity of snapshot allocated storage.
VMAX3-CLI10

To find out more about your snaps you can run the following cmd:
symsnapvx –sid –sg groupname list –detail

VMAX3-CLI11
If I want to link off and access a snap I can use a storage group which I have pre-created with the same number of devices as the source/target devices can be same size or larger..
VMAX3-CLI12

For deeper dive and more on the internals please see the Technote on EMC.com
https://www.emc.com/collateral/technical-documentation/h13697-emc-vmax3-local-replication.pdf

Useful Commands For Everyday Use!:

This information is at your finger tips with symcli -v

SYMCLI BASE Commands:

symapierr- Used to translate SYMAPI error code numbers into SYMAPI error messages.
symaudit – List records from a Symmetrix audit log file.
symbcv – Perform BCV support operations on Symmetrix BCV devices.
symcfg – Discover or display Symmetrix configuration information. Refresh the host’s Symmetrix database file or remove Symmetrix info from the file. Can also be used to view or release a ‘hanging’ Symmetrix exclusive lock.
symchg – Monitor changes to Symmetrix devices or to logical objects stored on Symmetrix devices.
symcli – Provides the version number and a brief description of the commands included in the Symmetrix Command Line
symdev – Perform operations on a device given the device’s Symmetrix name. Can also be used to view Symmetrix device locks.
symdg- Perform operations on a device group (dg).
symdisk – Display information about the disks within a Symmetrix.
symdrv – List DRV devices on a Symmetrix.
symevent – Monitor or inspect the history of events within a Symmetrix.
symhost – Display host configuration information and performance statistics.
syminq – Issues a SCSI Inquiry command on one or all devices. Interface.
symipsec – Administers IPSec encryption on Gigabit Ethernet connections.
symlabel – Perform label support operations on a Symmetrix device.
symlmf – Registers SYMAPI license keys.
sympd- Perform operations on a device given the device’s physical name.
symsg- Perform operations on a storage device group (sg).
symstat – Display statistics information about a Symmetrix, a Director, a device group, or a device.
symreturn- Used for supplying return codes in pre-action and post-action script files.

SYMCLI CONTROL Commands:

symaccess- Administer Symmetrix Access Logix. (Mapping and Masking of devices)
symacl – Administer Symmetrix access control information.
symauth – Administer Symmetrix user authorization information.
symcg- Perform operations on an composite group (cg).
symchksum- Administer checksum checks when an Oracle database writes data files on Symmetrix devices.
symclone – Perform Clone control operations on a device group or on a device within the device group.
symconfigure – Perform modifications on the Symmetrix configuration.
symconnect – Setup or Modify Symmetrix Connection Security functionality.
symfast – Administer Symmetrix FAST (Fully Automated Storage Tiering) policies, associations, and the FAST Controller.
symmask – Setup or Modify Symmetrix Device Masking functionality.(Older Symmetrix Pre 5977)
symmaskdb- Backup, Restore, Initialize or Show the contents of the device masking database. (Older Symmetrix Pre 5977)
symmigrate – Migrates the physical disk space associated with a Symmetrix device to a different data protection scheme, or to disks with different performance characteristics. (VMAX 10K/20K/40K)
symmir – Perform BCV control operations on a device group or on a device within the device group.
symoptmz – Perform Symmetrix Optimizer control operations.
symqos – Perform Quality of Service operations on Symmetrix Devices.
symrcopy – Perform Symmetrix Rcopy control operations on devices in a device file.
symrdf – Perform RDF control operations on a device group or on a device within the device group.
symrecover – Perform automated SRDF session recovery operations.
symreplicate – Perform automated, consistent replication of data given a pre-configured RDF/Timefinder setup.
symsan – List ports and LUNs visible on the SAN
symsnap – Perform Symmetrix Snap control operations on a device group or on devices in a device file.
symsnapvx- Perform Symmetrix Snapvx control operations.
symstar – Perform SRDF STAR management operations.
symtier – Create and manage storage tiers within a Symmetrix.
symtw- Manage time windows for the Optimizer, FAST and FAST VP controller within a Symmetrix. (VMAX 10K/20K/40K)

SYMCLI SRM(Mapping) Commands symhostfs- Display information about a host File, Directory, or host File System.
symioctl – Send IO control commands to a specified application.
symlv- Display information about a volume in Logical Volume Group (vg).
sympart – Display partition information about a host device.
symrdb – Display information about a third-party Relational Database.
symrslv – Display detailed Logical to Physical mapping information about a logical object stored on Symmetrix devices.
symvg- Display information about a Logical Volume Group (vg).

EMC VMAX³ – Front-End FC WWPN’s & Zoning Considerations

Please begin by downloading the attached PDF here.

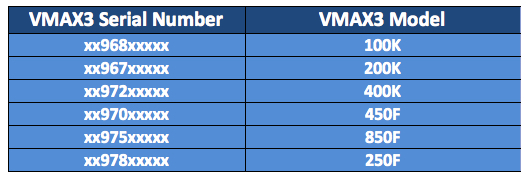

As you can see this is a fully compiled listing of all 256 possible FC WWPN’s available on a VMAX³ system. A 100K system can cater for a maximum of 64 FC Front-end connections, a 200K has a possible 128 ports, while the flagship 400K can have up to 256 FC Front-end connections.

VMAX3-WWN0

VMAX3-WWN-Decode1-a

Note: for demonstration purposes I am using X’s and a ? to explain the unique identifiers of a VMAX³ system. Please refer to the .pdf listing to help understand the concept.

X:XX:XX:X = System-wide Unique ID – as you will see from the provided WWPN listing this value is the unique identifier per VMAX³ system (a follow-on post focusing on decoding VMAX³ WWN’s shall explain this further). On a per VMAX³ system the X:XX:XX:X value will remain the same for all FC WWPN’s associated with that VMAX³ system.

There is a notable change from the previous VMAX usage of WWPN’s; there is now a unique identifier labeled as ? this uniquely identifies a pair of engines:

? = Unique ID For Engines 1&2 | 3&4 | 4&6 | 7&8

On previous VMAX generations all the X’s and ? were consistent across all FC Port WWPN’s with only the last 2 hex values of a WWPN acting as the unique port identifier, with the VMAX³ the unique port identifier is now the last three hex values. With VMAX³ the key point to note is the ? value remains the same throughout directors 1-4 then increments by one hex value for the next four directors, for example if C:04 is the unique ID for Director1 Port4 then for Director5 Port4 the C changes to D and remains at this value for directors 5-8 etc; so given this information and referring to the list provided:

Director1 Port4 has a value of 50:00:09:75:58:01:EC:04
Director5 Port4 has a value of 50:00:09:75:58:01:ED:04
Director9 Port4 has a value of 50:00:09:75:58:01:EE:04
Director13 Port4 has a value of 50:00:09:75:58:01:EF:04

There are two choices of FC Font-end I/O Modules to choose from:
• 8 Gbps four-port FC-module (Glacier) Non-Bifurcated, operational at speeds of 2/4/8Gbps, Populated left to right (Slots 2,3,8,9).
• 16 Gbps four-port FC-module(Rainfall) Bifurcated(meaning that the 8 lanes of PCIe are split into 2 connections of 4 lanes each), operational at speeds of 4/8/16Gbps, Populated right to left (Slots 9,8,3,2).
VMAX3 uses PCIe 3.0 thus allowing for maximum available port speeds.

Dual Fabric:One approach for cabling is to connect Even director ports to Fabric-A & Odd director ports connect to Fabric-B. Engine-1 Example:
VMAX3-WWN3
When using this approach in a single engine system the I/O ports from each director evenly span both SAN fabrics.

HOST or Cluster FA Port Usage: in order to ensure a balanced approach is maintained, connect a Host or cluster to 2xDirectors in a Single Engine system or 4xDirectors in a VMAX with greater than 1xEngine.
Single Engine example:Zoning a Host evenly across 2 directors and across both fabrics using ports 1D:4, 1D:31, 2D:28 & 2D:7:

VMAX3-WWN4

Two Engine example: Zoning a Host or Cluster evenly across 4 directors and across both fabrics using ports 1D:4, 2D:31, 3D:28 & 4D:7, this will spread load for performance and ensure fabric redundancy :

VMAX3-WWN5

These examples are a guideline for evenly balancing port utilization across all available director ports. See below for additional reading.

VMAX³ ACLX GK: The first physical FA port on the array will have the show ACLX flag set; thus any host attached to that port will be shown the ACLX device as LUN 000.

Hopefully these considerations and lists may assist you with planning (or automating) your zoning scripts for VMAX³ systems.

SYMCLI List all FA WWN’s: symcfg -sid xxx list -fa all -port -detail

Useful References:
VMAX3 Family New Features – A Detailed Review of Open Systems White Paper
http://www.emc.com/collateral/technical-documentation/h13578-vmax3-family-new-features-wp.pdf

VMAX3 Reliability, Availability, and Serviceability Tech Notes
http://www.emc.com/collateral/technical-documentation/h13807-emc-vmax3-reliability-availability-and-serviceability-tech-note.pdf
