VCF ON VXRAIL – REDUCE A CLUSTER (REMOVE NODE)

In a previous post I provided an example walk-through of the process for adding a new host to an existing VCF on VxRail ‘VI Workload Domain (WLD)’:

VCF on VxRail – Expand a Cluster (Add Node)

In this post I will provide an example walk-through of the process for removing a host from a VCF on VxRail ‘VI Workload Domain (WLD)’. There are various reasons you may wish to perform this task but one that stands out is to re-use the host to bolster resources as needed in another ‘VI Workload Domain (WLD)’ cluster.

Note: Please ensure you have sufficient resource remaining after the removal of host to accommodate the existing workloads on the ‘VI Workload Domain (WLD)’ cluster from which the host is being removed (ensure vSAN has the required members to support protection policies). This is an example for reference only please use the VxRail installation procedures provided by Dell EMC.

At a high level there are two key integrated procedures to follow, leveraging:

  1. The SDDC Manager to remove the VxRail Host(s) in the VI WLD in VCF.
  2. The VxRail Manager plugin in vCenter to remove the host from the VxRail Cluster.

This example begins with a 4 node VCF on VxRail ‘VI Workload Domain’ and we reduce the host count by one host.

Logging into vCenter we can see the existing 4 node cluster, this post will show the removal of host ‘vcfesxi08’ :

vcfvxrailhostadd13

From the SDDC Manager dashboard we can also confirm the current VI WLD configuration which consists of 4 hosts. Inventory->Workload Domains->View Details->VI WLD->Hosts:

vcfvxrailhostadd18

Remove A VxRail Host from VCF WLD

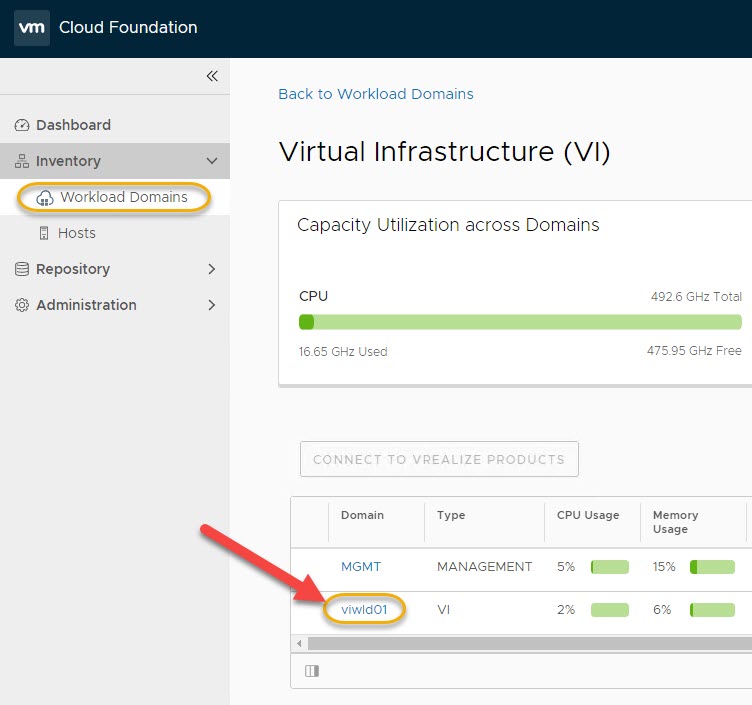

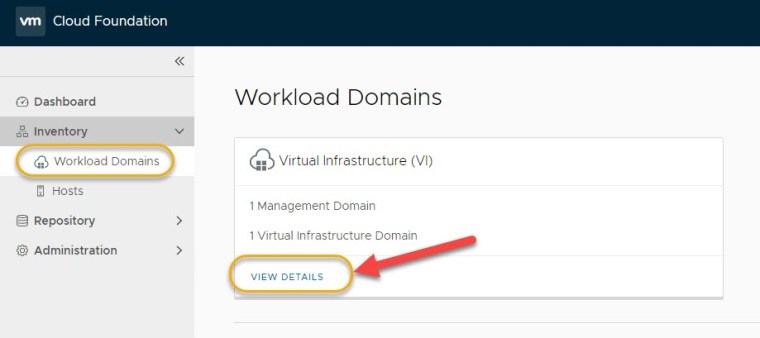

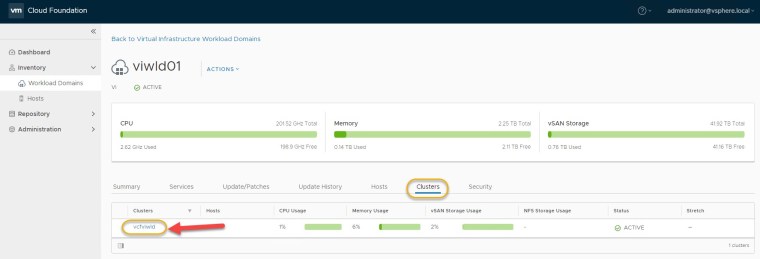

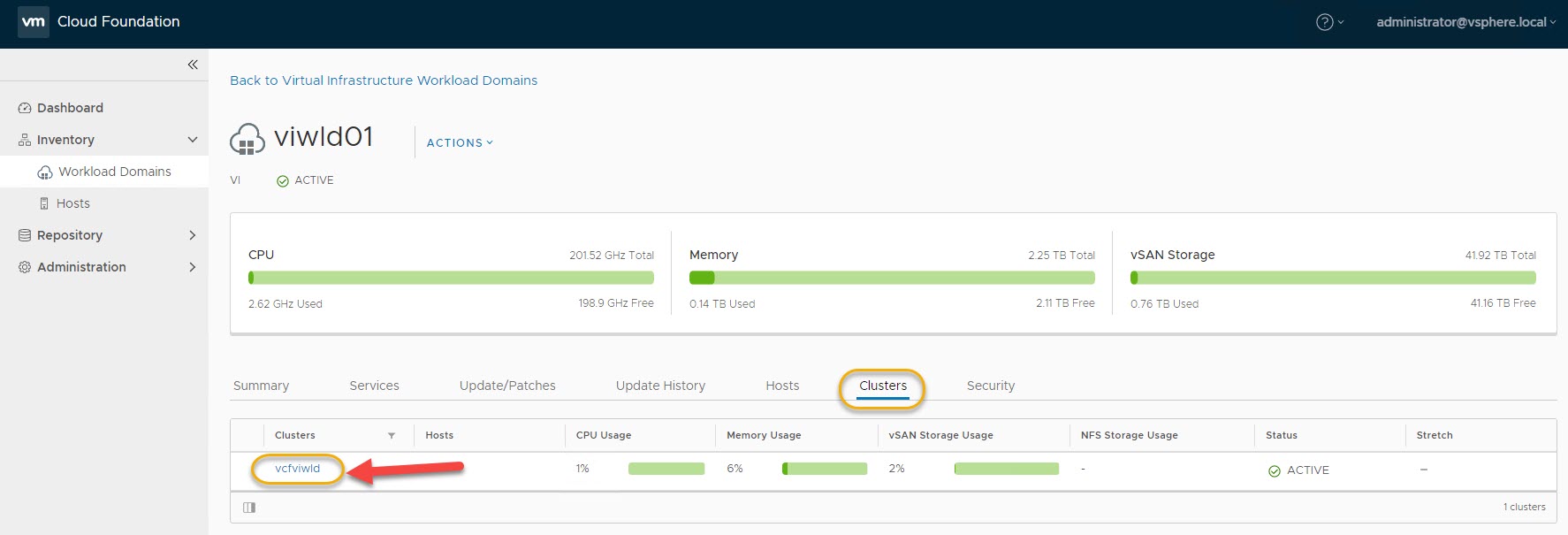

From the SDDC Manager dashboard navigate to Inventory->Workload Domains->View Details->VI WLD (viwld01)->Clusters->VI WLD (viwld01):

vcfremovehost0vcfremovehost1

vcfremovehost1a



From the Hosts tab select the host to be removed and click the Remove Selected Hosts button:

vcfremovehost2

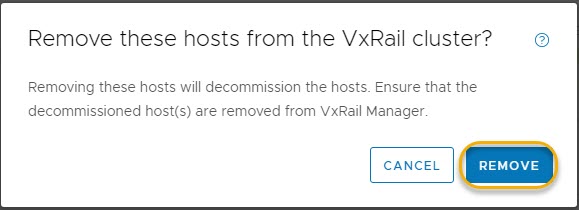

Confirm the removal of host from cluster:

vcfremovehost3

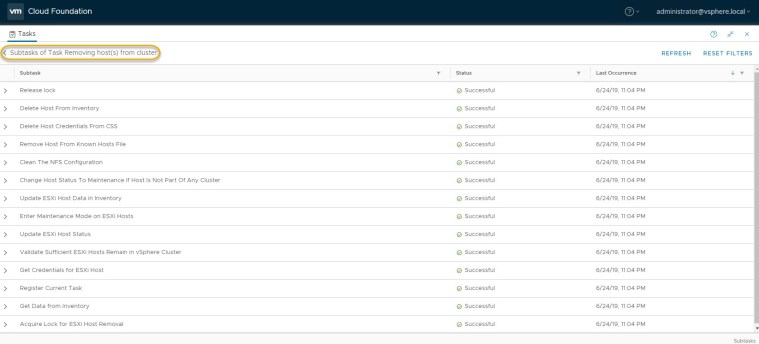

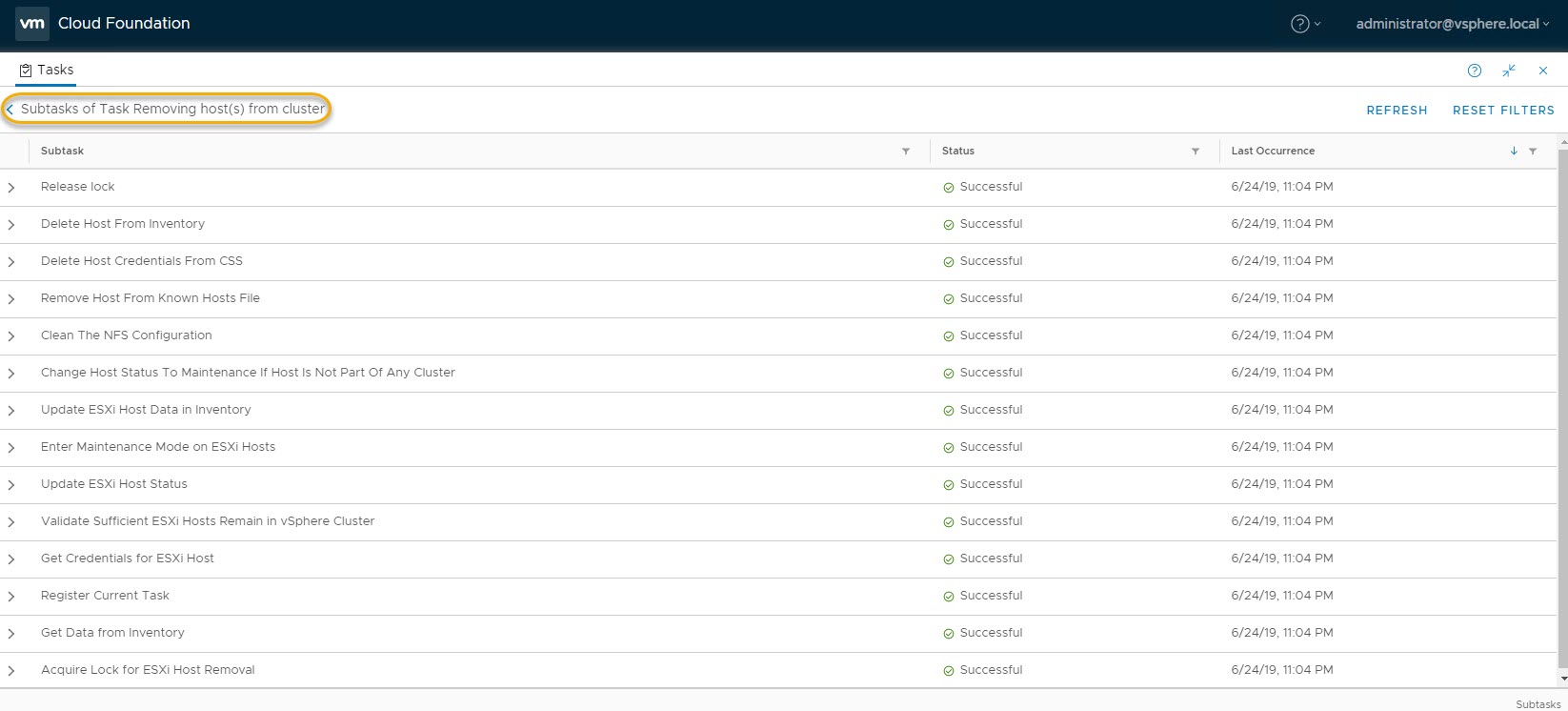

From the Tasks pane we can view the list of steps the workflow is executing and track progress of the workflow:

vcfremovehost4

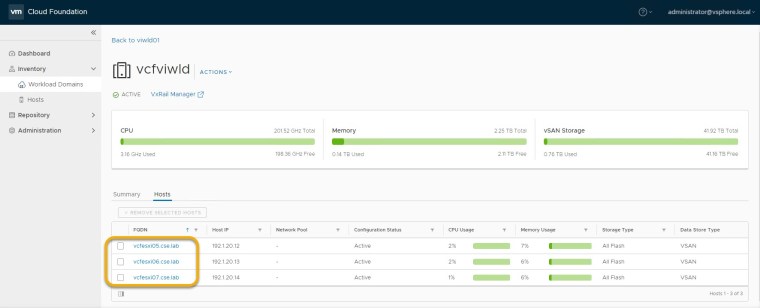

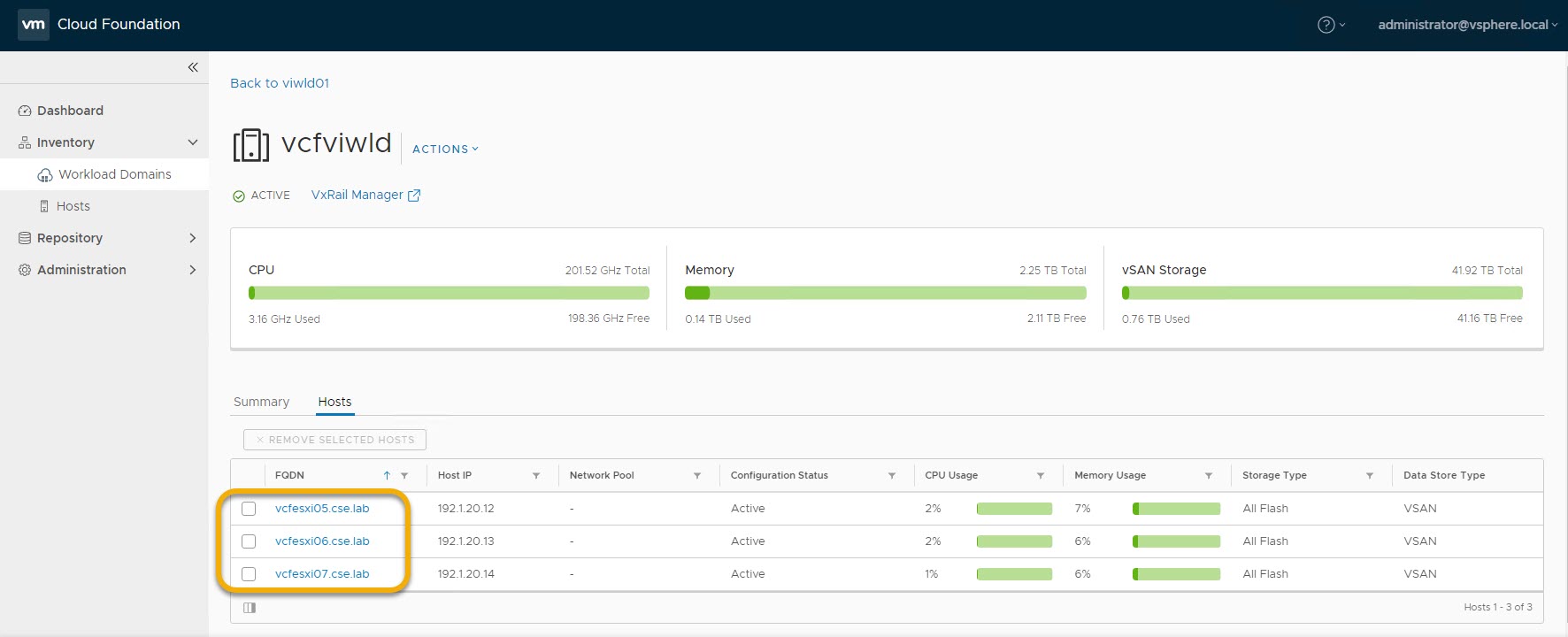

From the Hosts tab we can now see that host vcfesxi08 has been successfully removed from the ‘VI WLD’ cluster:

vcfremovehost4b



Reduce The VxRail Cluster

To begin the VI WLD host removal we leverage the VxRail Manager plugin in vCenter to reduce the VxRail Cluster.

Click on the VxRail cluster in vCenter from where we are removing a host, click on the Hosts tab from here you can view the host has been placed in maintenance mode by the SSDC Manager workflow which allows VxRail manager to proceed with the task of removing host:

vcfremovehost5

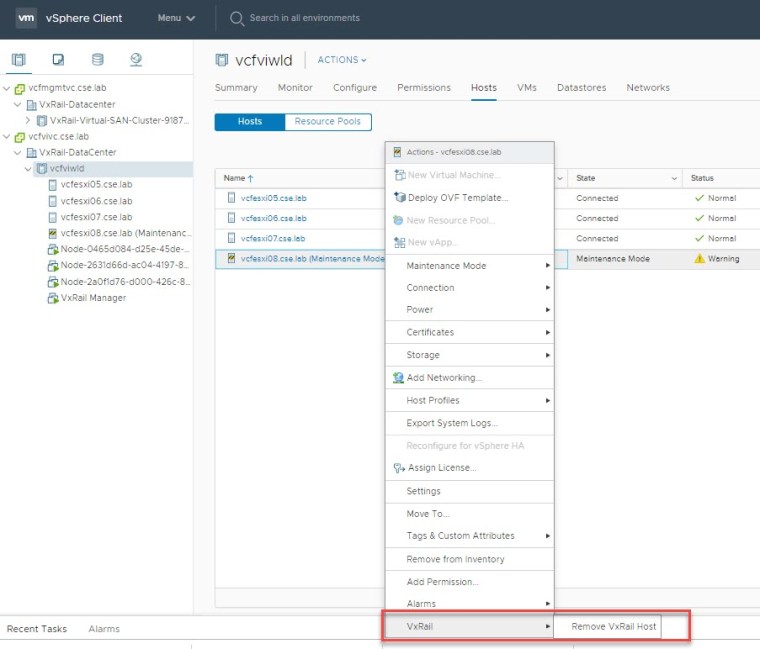

Right click the host to be removed, which is vcfesxi08 in this example, select VxRail->Remove VxRail Host:

vcfremovehost6

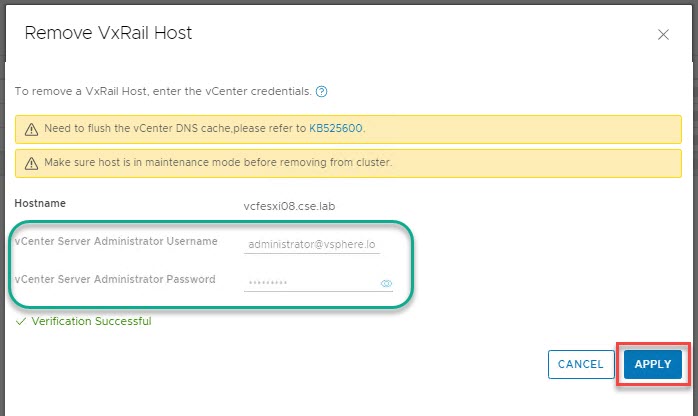

Enter the vSphere credentials, click verify and on successful verification click on the APPLY button which in turn initiates the VxRail REMOVE HOSTS workflow:

vcfremovehost7

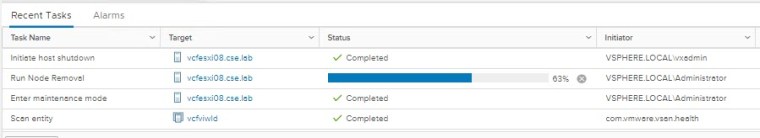

Monitoring progress of the workflow from vCenter:vcfremovehost8

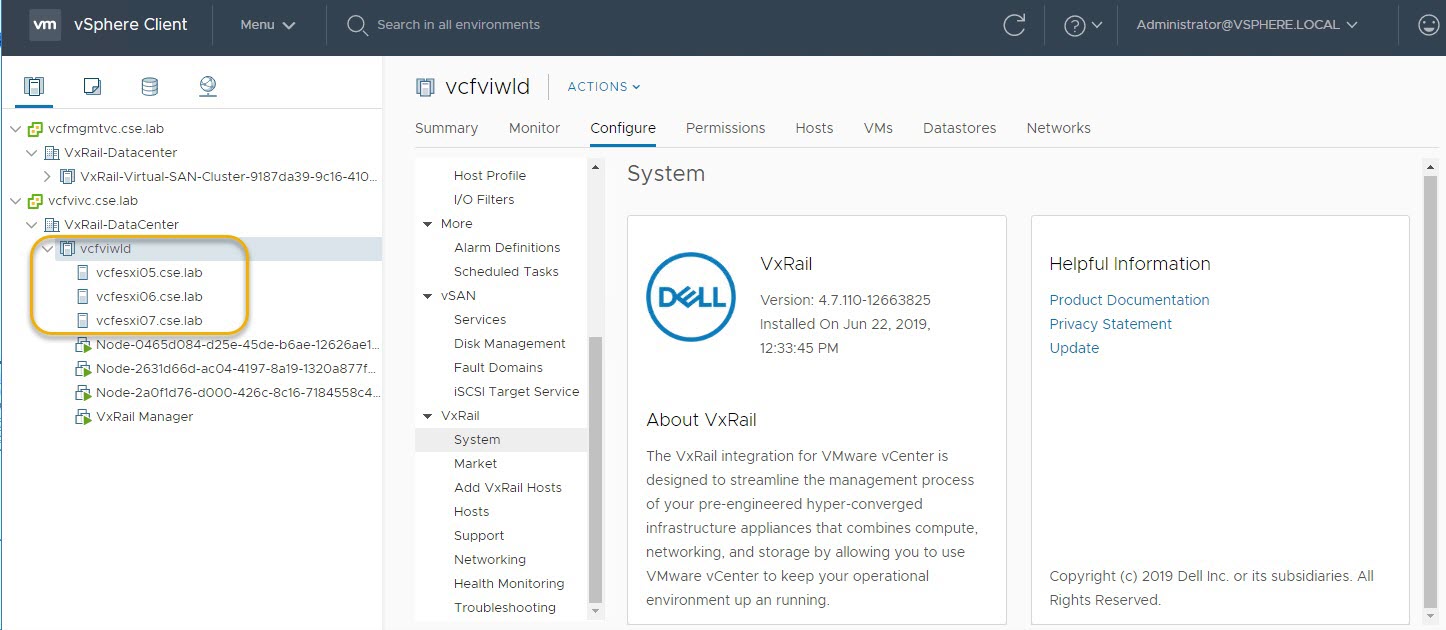

Host vcfesxi08 successfully removed from the VxRail cluster. The cluster ‘vcfviwld’ now has 3 hosts:vcfremovehost9



NOTE: After removing a host from a vSAN cluster you may receive the following error on the remaining ESXi hosts in the cluster:

‘Host cannot communicate with all other nodes in virtual SAN enabled cluster’

This cosmetic (do ensure your vSAN is in a  healthy status) message requires you to restart the VPXA management service in order to clear the message. Workaround is detailed in the following VMware KB: https://kb.vmware.com/s/article/2143214

Simply SSH to one of the hosts in the cluster and restart VPXA:

# /etc/init.d/vpxa restart

The host will now require to undergo a RASR reset if you now wish to re-purpose the node for another VxRail cluster.

Hope that helps!
