Cisco UCS – How to Query UCS for WWN’s Associated with Blades

These are very useful trick’s in order to obtain a list of WWN’s associated with the blades in a UCS environment. Instead of trawling through the GUI you can easily connect to UCS via the Cisco UCS PowerTool or SSH to the Fabric Interconnect and quickly retrieve the WWN information for each/All Host/blade’s in UCS.

UCS PowerTool
You can download the latest version of Cisco UCS PowerTool from:
UCS PowerTool Download

Firstly launch the UCS PowerTool and Connect to the UCS system by issuing the cmd:
PS C:\> Connect-Ucs
Enter your fabric interconnect IP address hitting the return key and then inputting your creds.

Once you have connected enter the following cmd to bring up a list of all the blades (service profiles) and their associated vHBA WWN’s:
PS C:\> Get-UcsServiceProfile -type instance | Get-UcsVhba | Select Dn,Addr,NodeAddr

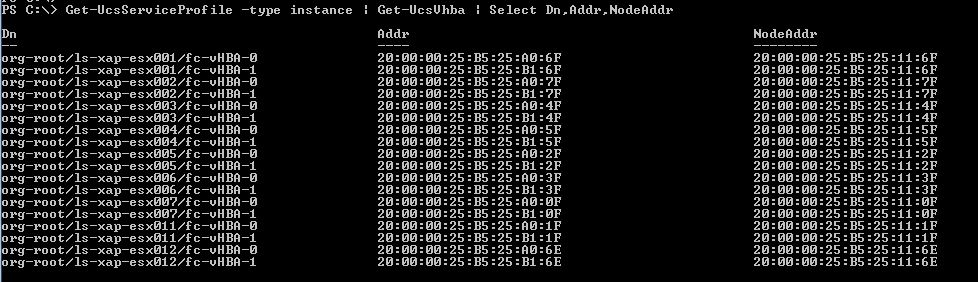

UCS_WWN1

If you want to reduce the list to only WWPN‘s, then use the following:
PS C:\> Get-UcsServiceProfile -type instance | Get-UcsVhba | Select Dn,Addr

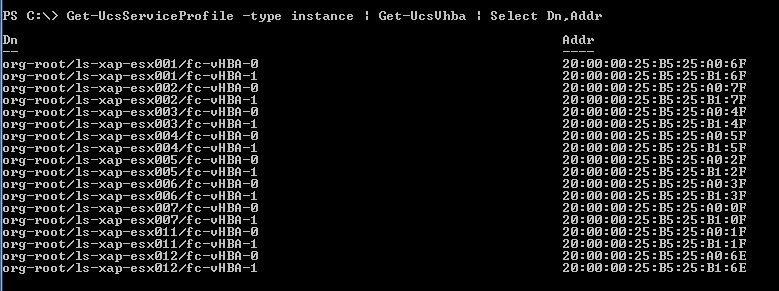

UCS_WWN2

Filter by “vHBA-0”:
Get-UcsServiceProfile -type instance |Get-UcsVhba | select DN,Name,Addr| where {$_.Name -eq “vHBA-0”} | sort DN

Filter by “vHBA-1”:
Get-UcsServiceProfile -type instance |Get-UcsVhba | select DN,Name,Addr| where {$_.Name -eq “vHBA-1”} | sort DN

In order to display the associated VSAN details:
PS C:\> Get-UcsServiceProfile -type instance | Get-UcsVhba | Get-UcsVhbaInterface | select Dn,Initiator,Vnet

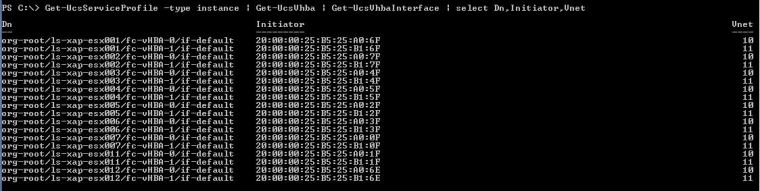

UCS_WWN3

Get all service profile instances in UCS:
PS C:\> Get-UcsServiceProfile –Type instance

List Boot Policy assigned to each blade:
C:\> Get-UcsServiceProfile -type instance | select Name,BootPolicyName

Fabric Interconnect CLI
Another option is to connect directly to the fabric interconnect. Using the cmd “fi01-A# show server adapter identity” will return a detailed list all of the UCS blades WWN details:

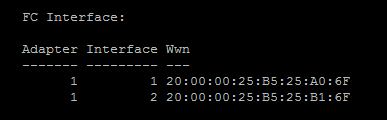

UCS_WWN4

For a brief list of all WWN’s assigned to each host use this simple cmd:
sh identity wwn

• To list an individual server WWPN details:
fiA-31-A# scope chassis 1
fiA-31-A /chassis # scope server 1
fiA-31-A /chassis/server # scope adapter 1
fiA-31-A /chassis/server/adapter # show host-fc-if

FC Interface:
Id Wwn Model Name Operability
———- ———————– ———- ———- ———–
1 20:00:00:25:B5:25:A0:6F UCSB-MLOM-40G-01
vHBA-0 Operable
2 20:00:00:25:B5:25:B1:6F UCSB-MLOM-40G-01
vHBA-1 Operable

• From the scope server is is also possible to learn the DN(Distinguished Name):
fiA-31-A /chassis/server # show server adapter vnics
FC Interface:

Adapter Interface Vnic Dn Dynamic WWPN Type
——- ——— ———- ———— —-
1 1 org-root/ls-xap-esx001/fc-vHBA-0 20:00:00:25:B5:25:A0:6F Fc
1 2 org-root/ls-xap-esx001/fc-vHBA-1 20:00:00:25:B5:25:B1:6F Fc

• Check which vHBA is assigned to fabric A/B:
fiA-31-A# scope service-profile server 1/1
fiA-31-A /org/service-profile # show vhba

vHBA:
Name Fabric ID Dynamic WWPN
———- ——— ————
vHBA-0 A 20:00:00:25:B5:25:A0:6F
vHBA-1 B 20:00:00:25:B5:25:B1:6F

• Get a full List of all WWPN’s based on Fabric A/B:
fiA-31-A# scope org
fiA-31-A /org # show wwn-pool

WWN Pool:
Name Purpose Size Assigned
——————– —————————- ———- ——–
Global-WWNN-Pool Node WWN Assignment 128 9
vHBA-0-Fabric-A Port WWN Assignment 128 9
vHBA-1-Fabric-B Port WWN Assignment 128 9

• List all Fabric-A WWPN and DN information:
fiA-31-A# scope org
fiA-31-A /org # scope wwn-pool vHBA-0-Fabric-A
fiA-31-A /org/wwn-pool # show initiator
WWN Initiator:
Id Name Assigned Assigned To Dn
———————– ———- ——– ————–
20:00:00:25:B5:25:A0:6F Yes org-root/ls-xap-esx001/fc-vHBA-0

• List all Fabric-B WWPN and DN information:
fiA-31-A# scope org
fiA-31-A /org # scope wwn-pool vHBA-1-Fabric-B
fiA-31-A /org/wwn-pool # show initiator

WWN Initiator:
Id Name Assigned Assigned To Dn
———————– ———- ——– ————–
20:00:00:25:B5:25:B1:6F Yes org-root/ls-xap-esx001/fc-vHBA-1

Thank you ‘Brendan Lucey’ for your assistance.
